Quick View

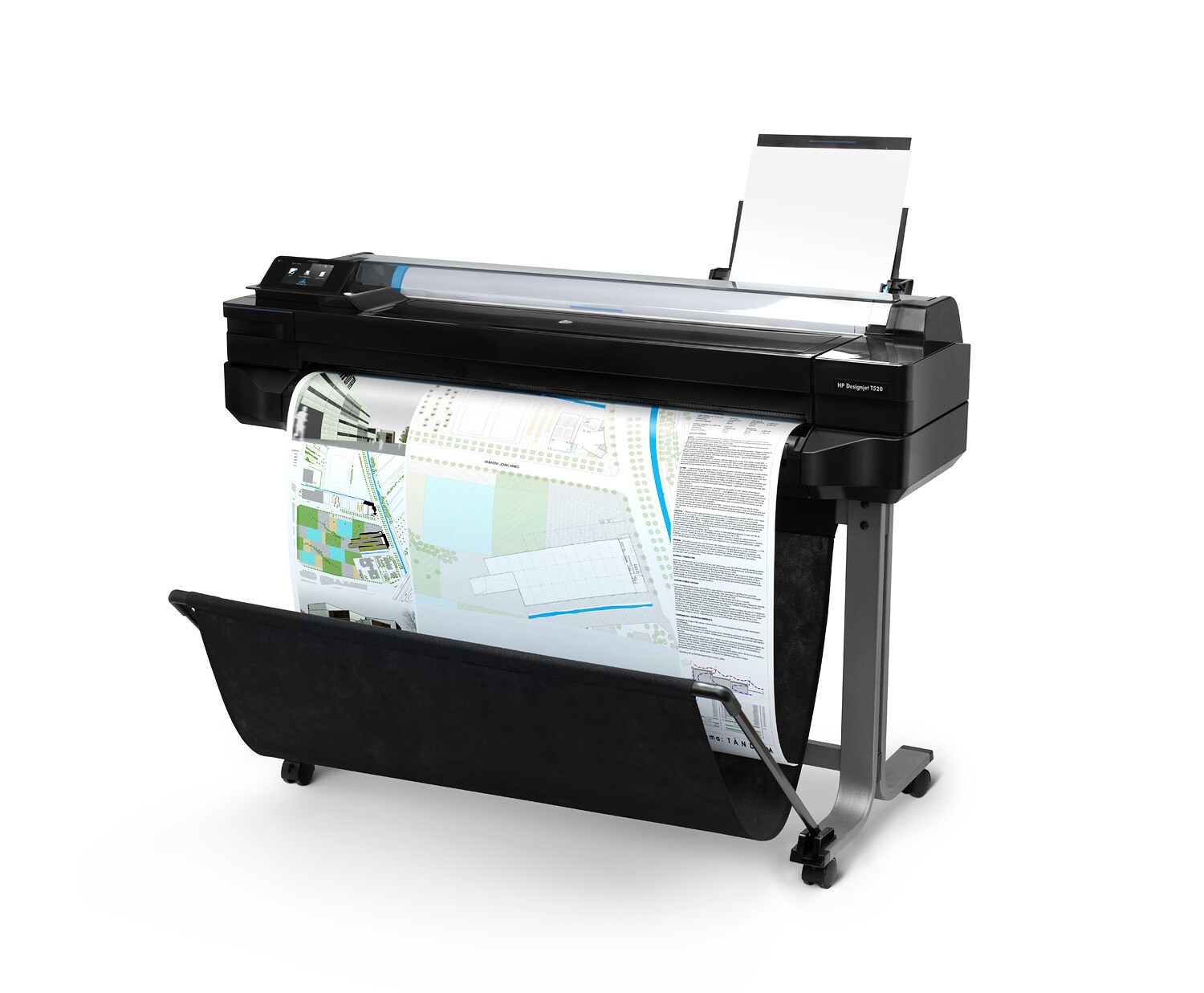

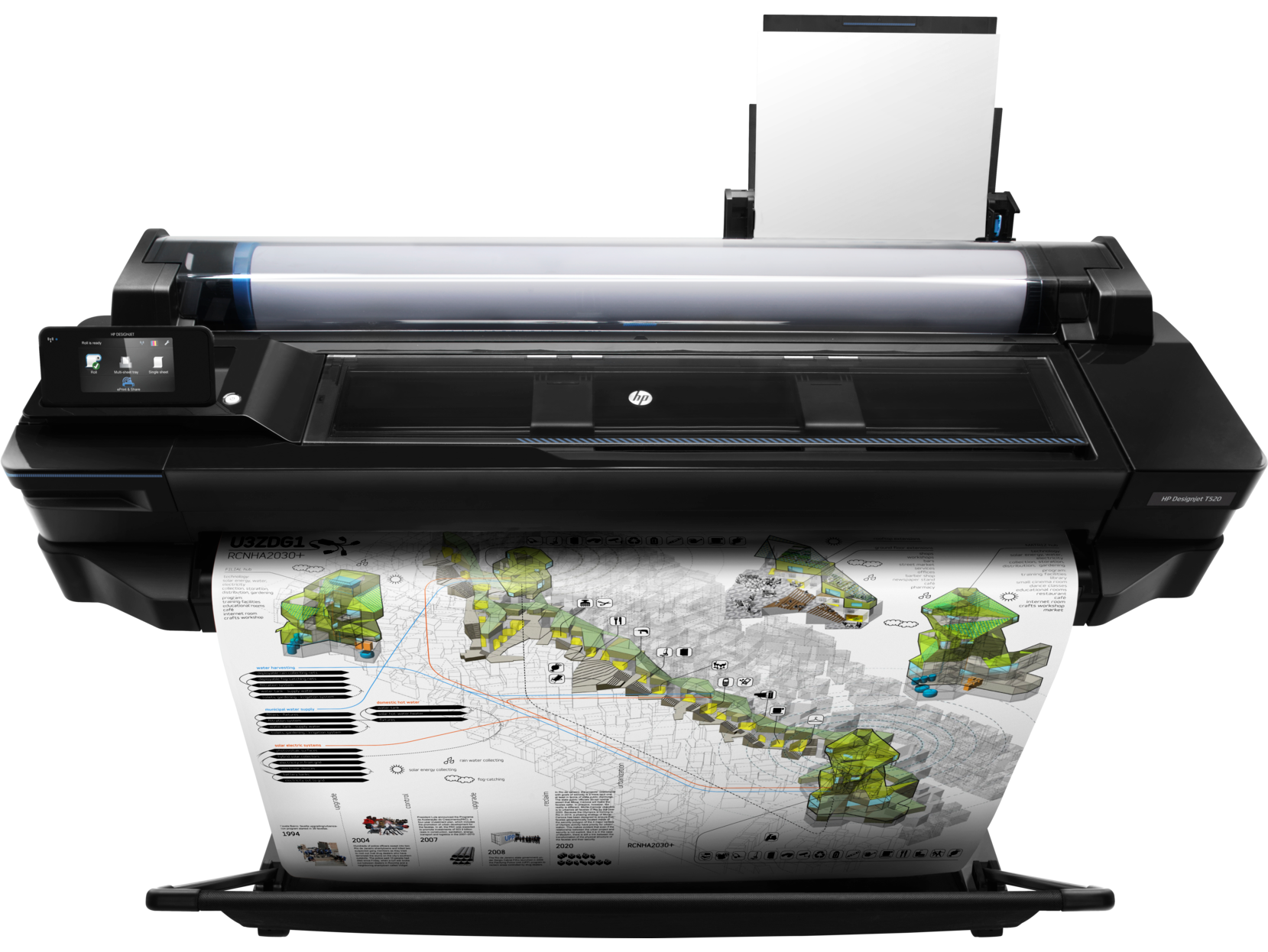

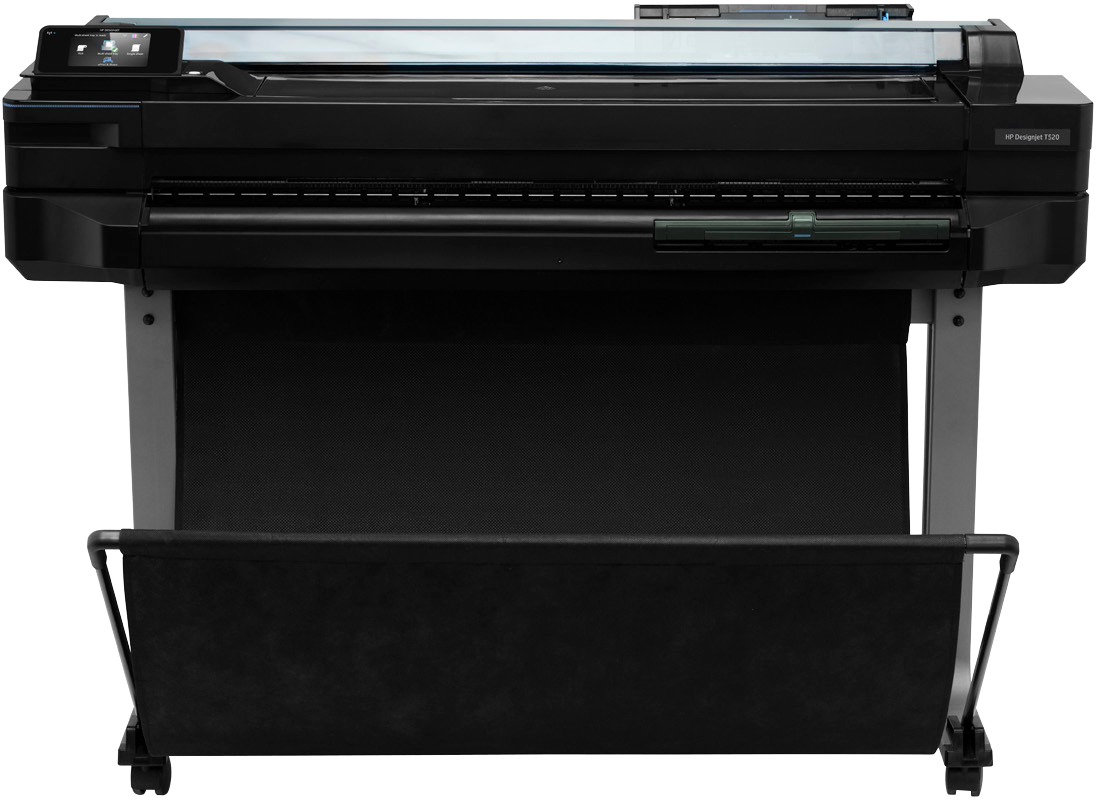

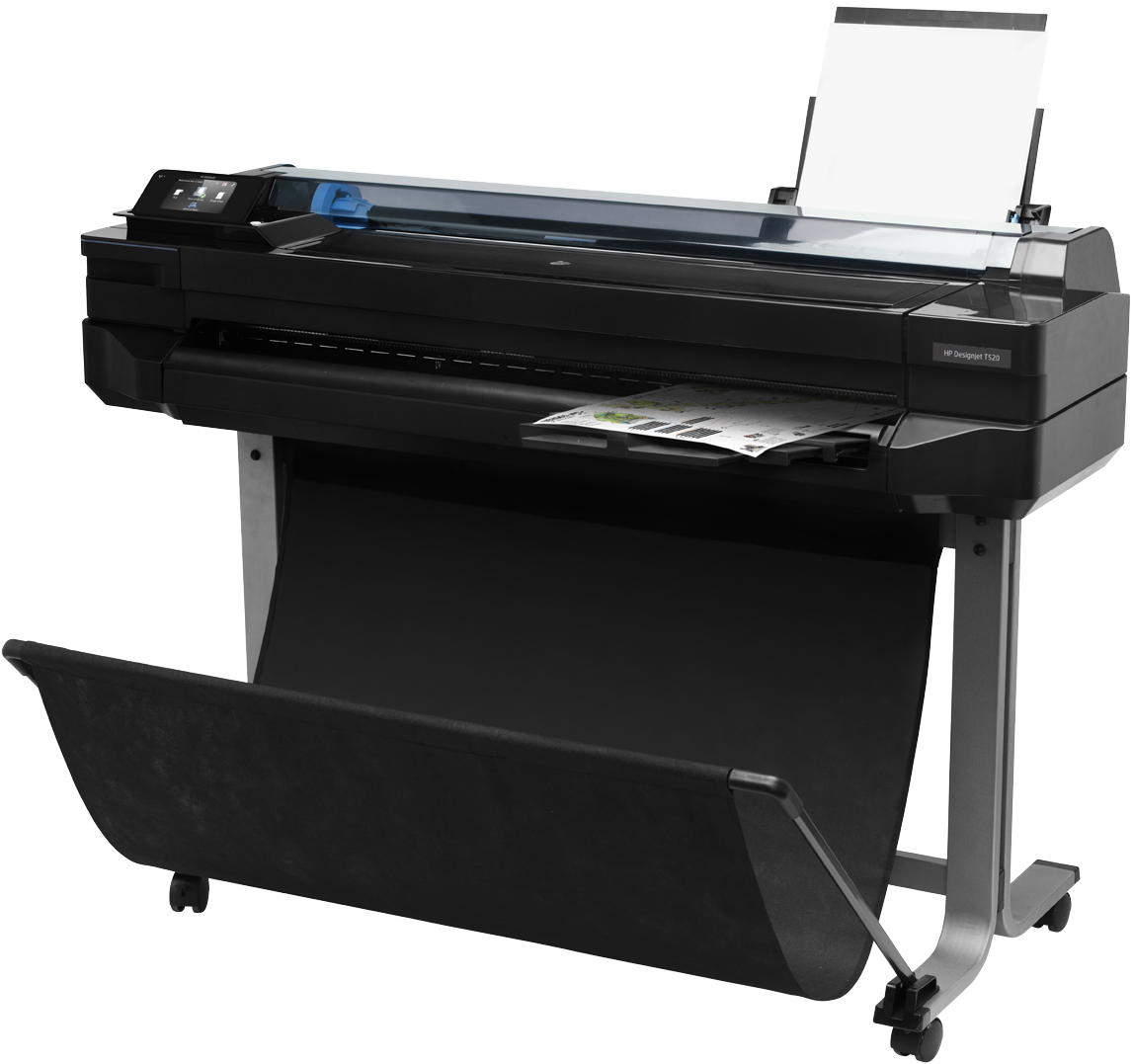

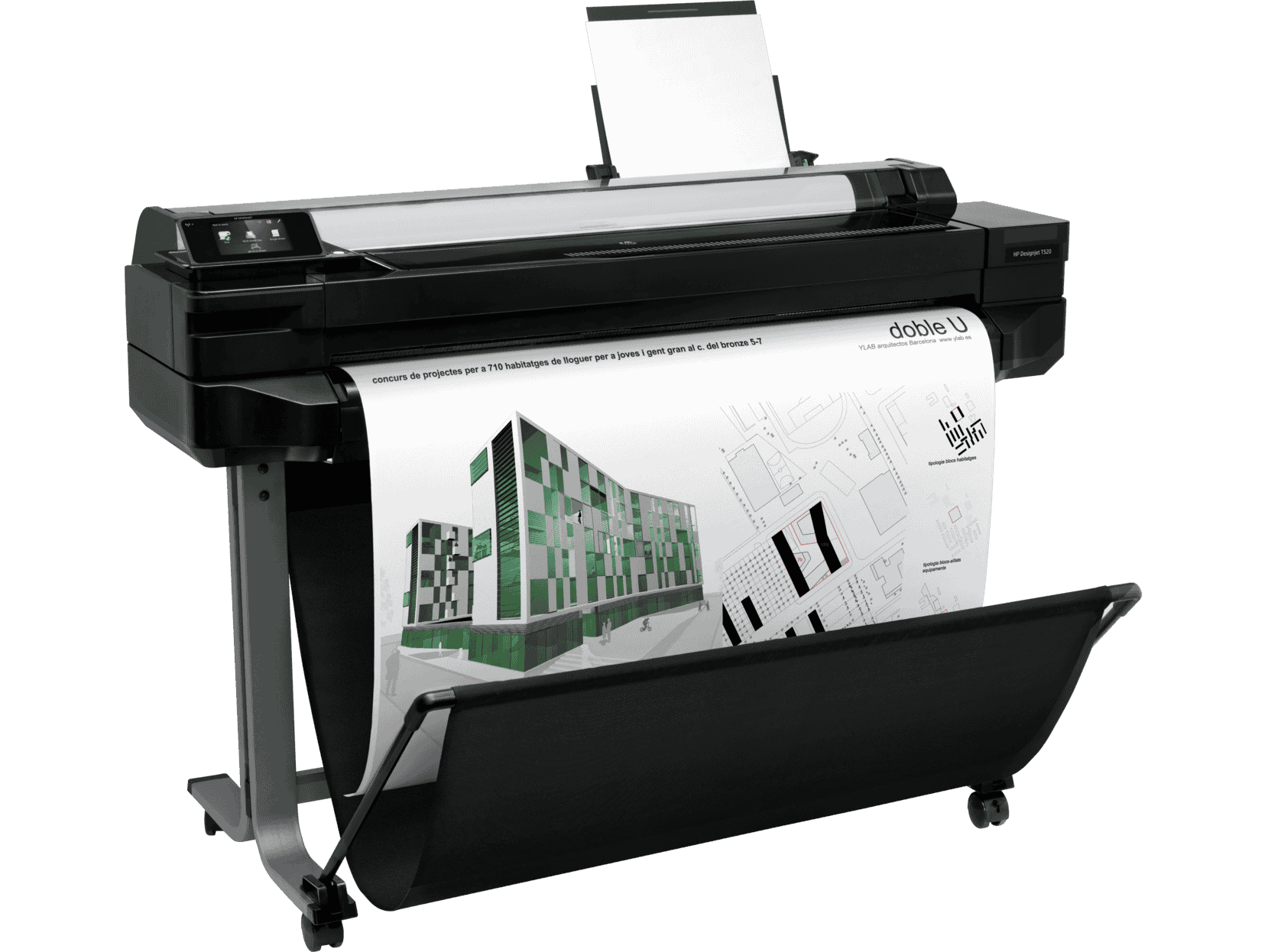

HP DesignJet T520
  • Speed 35 sec/ A1/70 A1/hr
  • Color images  25.6 m²/hr
  • Memory 1 GB, no Hard disk
  • Media Weight 60 to 280 g/m²
  • Connectivity Wifi,Usb,Ethernet
  • input tray,sheets,roll feed
  • Thickness 0.3 mm (11.8 mil)
  • Print resolution Up to 2400 x 1200 optimized dpi
  • Print Line drawings(3 35 sec/page on A1/D, 70 A1/D prints per hour Color images Fast: 25.6 m²/hr/ (275 ft²/hr) on coated media (4 Best: 2.3 m²/hr (25 ft²/hr) on glossy media (5 Print resolution Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected Margins (top x bottom x left x right) Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in) Sheet: 5 x 17 x 5 x 5 mm (0.2 x 0.67 x 0.2 x 0.2 in) Technology HP Thermal Inkjet Ink types Dye-based (C, M, Y); pigment-based (K) Ink drop 5.5 pl (C, M, Y); 12 pl (K) Printheads 1 (C, M, Y, K) Line accuracy +/- 0.1% (6 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))(7 Media Handling Sheet feed, roll feed, input tray, automatic cutter Weight 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) Size 24-in printer: 210 to 610-mm (8.3 to 24-in) wide sheets; 279 to 610-mm (11 to 24-in) rolls 36-in printer: 210 to 914-mm (8.3 to 36-in) wide sheets; 279 to 914-mm (11 to 36-in) rolls Thickness Up to 11.8 mil Connectivity Interfaces (standard) Fast Ethernet (100Base-T), Hi-Speed USB 2.0 certified, Wi-Fi Print languages (standard) HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4 Drivers (included) HP-GL/2, HP-RTL drivers for Windows® (optimized for AutoCAD 2000 and higher); HP PCL 3 GUI driver for Mac OS X Dimensions (w x d x h) Printer 24-in printer: 987 x 530 x 932 mm (38.9 x 20.9 x 36.7 in) 36-in printer: 1292 x 530 x 932 mm (50.9 x 20.9 x 36.7 in) Shipping 24-in printer: 1123 x 577 x 626 mm (44.2 x 22.7 x 24.6 in) 36-in printer: 1423 x 577 x 626 mm (56 x 22.7 x 24.6 in) Weight Printer 24-in printer: 34 kg (75 lb) 36-in printer: 39.2 kg (86.4 lb) Shipping 24-in printer: 50 kg (110.2 lb) 36-in printer: 62 kg (136.7 lb) What´s in the box HP Designjet T520 ePrinter, printhead, ink cartridges(8, printer stand, quick, reference guide, setup poster, startup software, power cord Environmental ranges Operating temperature: 5 to 40?C (41 to 104?F) Storage temperature: -25 to 55?C (-13 to 131?F) Operating humidity: 20 to 80% RH Acoustic Sound pressure: 48 dB(A) (active); < 16 dB(A) (standby) Sound power: 6.5 B(A) (active); < 3.4 B(A) (standby) Power consumption < 35 watts (printing), < 4.5 watts (powersave), < 0.3 watts (standby) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1200 mA max Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE) Electromagnetic Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP Warranty One-year limited hardware warranty

  • Speed 35 sec/ A1/70 A1/hr
  • Color images  25.6 m²/hr
  • Memory 1 GB, no Hard disk
  • Media Weight 60 to 280 g/m²
  • Connectivity Wifi,Usb,Ethernet
  • input tray,sheets,roll feed
  • Thickness 0.3 mm (11.8 mil)
  • Print resolution Up to 2400 x 1200 optimized dpi
  • Print Line drawings(3 35 sec/page on A1/D, 70 A1/D prints per hour
    Color images Fast: 25.6 m²/hr/ (275 ft²/hr) on coated media (4
    Best: 2.3 m²/hr (25 ft²/hr) on glossy media (5
    Print resolution Up to 2400 x 1200 optimized dpi from 1200 x 1200
    input dpi and Optimization For Photo Paper selected
    Margins (top x
    bottom x left x right)
    Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
    Sheet: 5 x 17 x 5 x 5 mm (0.2 x 0.67 x 0.2 x 0.2 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, M, Y); pigment-based (K)
    Ink drop 5.5 pl (C, M, Y); 12 pl (K)
    Printheads 1 (C, M, Y, K)
    Line accuracy +/- 0.1% (6
    Minimum line
    width
    0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))(7
    Media Handling Sheet feed, roll feed, input tray, automatic cutter
    Weight 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input
    tray)
    Size 24-in printer: 210 to 610-mm (8.3 to 24-in) wide sheets;
    279 to 610-mm (11 to 24-in) rolls
    36-in printer: 210 to 914-mm (8.3 to 36-in) wide sheets;
    279 to 914-mm (11 to 36-in) rolls
    Thickness Up to 11.8 mil
    Connectivity Interfaces
    (standard)
    Fast Ethernet (100Base-T), Hi-Speed USB 2.0 certified,
    Wi-Fi
    Print languages
    (standard)
    HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4
    Drivers
    (included)
    HP-GL/2, HP-RTL drivers for Windows® (optimized for
    AutoCAD 2000 and higher); HP PCL 3 GUI driver for
    Mac OS X
    Dimensions
    (w x d x h)
    Printer 24-in printer: 987 x 530 x 932 mm (38.9 x 20.9 x 36.7 in)
    36-in printer: 1292 x 530 x 932 mm (50.9 x 20.9 x
    36.7 in)
    Shipping 24-in printer: 1123 x 577 x 626 mm (44.2 x 22.7 x 24.6 in)
    36-in printer: 1423 x 577 x 626 mm (56 x 22.7 x 24.6 in)
    Weight Printer 24-in printer: 34 kg (75 lb)
    36-in printer: 39.2 kg (86.4 lb)
    Shipping 24-in printer: 50 kg (110.2 lb)
    36-in printer: 62 kg (136.7 lb)
    What´s in the
    box
    HP Designjet T520 ePrinter, printhead, ink cartridges(8, printer stand, quick,
    reference guide, setup poster, startup software, power cord
    Environmental
    ranges
    Operating temperature: 5 to 40?C (41 to 104?F)
    Storage temperature: -25 to 55?C (-13 to 131?F)
    Operating humidity: 20 to 80% RH
    Acoustic Sound pressure: 48 dB(A) (active); < 16 dB(A) (standby)
    Sound power: 6.5 B(A) (active); < 3.4 B(A) (standby)
    Power
    consumption
    < 35 watts (printing), < 4.5 watts (powersave), < 0.3 watts (standby)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3
    Hz), 1200 mA max
    Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1
    compliant), Russia (GOST), Singapore (PSB), China (CCC),
    Mexico (NYCE)
    Electromagnetic Compliant with Class B requirements, including: USA
    (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives),
    Australia (ACMA), New Zealand (RSM), China (CCC), Japan
    (VCCI); Certified as Class A product: Korea (KCC)
    Environmental Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP
    Warranty One-year limited hardware warranty
-
Quick View
HP Designjet T795
  • Speed 28 sec A1, 103 A1 /hr
  • Colour images 41 m²/hr
  • Memory  16 GB 160GB HDD
  • 6 cartridges 69 ml & 130ml
  • 3 printheads hp 72
  • Colour images 41 m²/hr on coated media; 6.7 m²/hr on glossy media Print resolution Up to 2400 x 1200 optimised dpi Margins (top x bottom x left x right) Roll: 5 x 5 x 5 x 5 mm Sheet: 5 x 17 x 5 x 5 mm
  • Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink colours 6 (1 each cyan, grey, magenta, matte black, photo black, yellow) Ink drop 6 pl (C, G, M, pK); 9 pl (mK, Y) Print cartridge volume delivered Matte black (300 ml); cyan, grey, magenta, matte black, photo black, yellow (130 ml); cyan, grey, magenta, photo black, yellow (69 ml)
  • Print head nozzles 1056
  • Print heads 3 (1 each matte black and yellow, magenta and cyan, photo black and grey)
  • Print speed 103 A1 prints per hour Line accuracy +/- 0.1% Line accuracy note: +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal mode with Original HP inks Minimum line width 0.02 mm (HP-GL/2 addressable) Guaranteed minimum line width 0.06 mm (ISO/IEC 13660:2001(E)) Maximum print weight 11.9 kg Maximum optical density 6 L* min/2.15 D
  • Media Handling Sheet feed; roll feed; automatic cutter Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) Weight 60 to 328 g/m² Size CR649C 210 x 279 to 1118 x 1676 mm Thickness Up to 31.5 milConnectivity Interfaces (standard) Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect accessory slot Interfaces (optional) Compatible HP Jetdirect print servers Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI Print languages (optional) Adobe PostScript® 3; Adobe PDF 1.7 Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript® Windows and Mac drivers with optional PostScript®/PDF Upgrade Kit Environmental ranges Operating temperature 5 to 40ºC Storage temperature -25 to 55ºC Operating humidity 20 to 80% RH Storage humidity 0 to 95% RH Acoustic Sound Pressure 43 dB(A) Sound Power 6.1 B(A) Dimensions (w x d x h) Printer 1770 x 701 x 1050 mm Packaged 1930 x 766 x 770 mm Weight Printer 81.6 kg Packaged 103 kg Power consumption Maximum < 120 watts (printing), < 27 watts (ready), < 7 watts /< 25 watts with embedded Digital Front End (sleep), 0.1 watts (off) Power requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max

  • Speed 28 sec A1, 103 A1 /hr
  • Colour images 41 m²/hr
  • Memory  16 GB 160GB HDD
  • 6 cartridges 69 ml & 130ml
  • 3 printheads hp 72
  • Colour images 41 m²/hr on coated media; 6.7 m²/hr on glossy media
    Print resolution Up to 2400 x 1200 optimised dpi
    Margins (top x bottom x left x right) Roll: 5 x 5 x 5 x 5 mm
    Sheet: 5 x 17 x 5 x 5 mm
  • Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink colours 6 (1 each cyan, grey, magenta, matte black, photo black, yellow)
    Ink drop 6 pl (C, G, M, pK); 9 pl (mK, Y)
    Print cartridge volume delivered Matte black (300 ml); cyan, grey, magenta, matte black, photo black, yellow (130
    ml); cyan, grey, magenta, photo black, yellow (69 ml)
  • Print head nozzles 1056
  • Print heads 3 (1 each matte black and yellow, magenta and cyan, photo black and grey)
  • Print speed 103 A1 prints per hour
    Line accuracy +/- 0.1%
    Line accuracy note: +/- 0.1% of the specified vector length or +/- 0.2 mm
    (whichever greater) at 23ºC, 50-60% relative humidity, on A0 HP Matte Film in
    Best or Normal mode with Original HP inks
    Minimum line width 0.02 mm (HP-GL/2 addressable)
    Guaranteed minimum line width 0.06 mm (ISO/IEC 13660:2001(E))
    Maximum print weight 11.9 kg
    Maximum optical density 6 L* min/2.15 D
  • Media
    Handling Sheet feed; roll feed; automatic cutter
    Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight
    plus matte, coloured), technical paper (natural tracing, translucent bond,
    vellum), film (clear, matte, polyester), photographic paper (satin, gloss,
    semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor
    paper, polypropylene, vinyl)
    Weight 60 to 328 g/m²
    Size
    CR649C 210 x 279 to 1118 x 1676 mm
    Thickness Up to 31.5 milConnectivity
    Interfaces (standard) Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect
    accessory slot
    Interfaces (optional) Compatible HP Jetdirect print servers
    Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI
    Print languages (optional) Adobe PostScript® 3; Adobe PDF 1.7
    Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X;
    PostScript® Windows and Mac drivers with optional PostScript®/PDF Upgrade Kit
    Environmental ranges
    Operating temperature 5 to 40ºC
    Storage temperature -25 to 55ºC
    Operating humidity 20 to 80% RH
    Storage humidity 0 to 95% RH
    Acoustic
    Sound Pressure 43 dB(A)
    Sound Power 6.1 B(A)
    Dimensions (w x d x h)
    Printer 1770 x 701 x 1050 mm
    Packaged 1930 x 766 x 770 mm
    Weight
    Printer 81.6 kg
    Packaged 103 kg
    Power consumption
    Maximum < 120 watts (printing), < 27 watts (ready), < 7 watts /< 25 watts with embedded
    Digital Front End (sleep), 0.1 watts (off)
    Power requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A
    max
-
Quick View

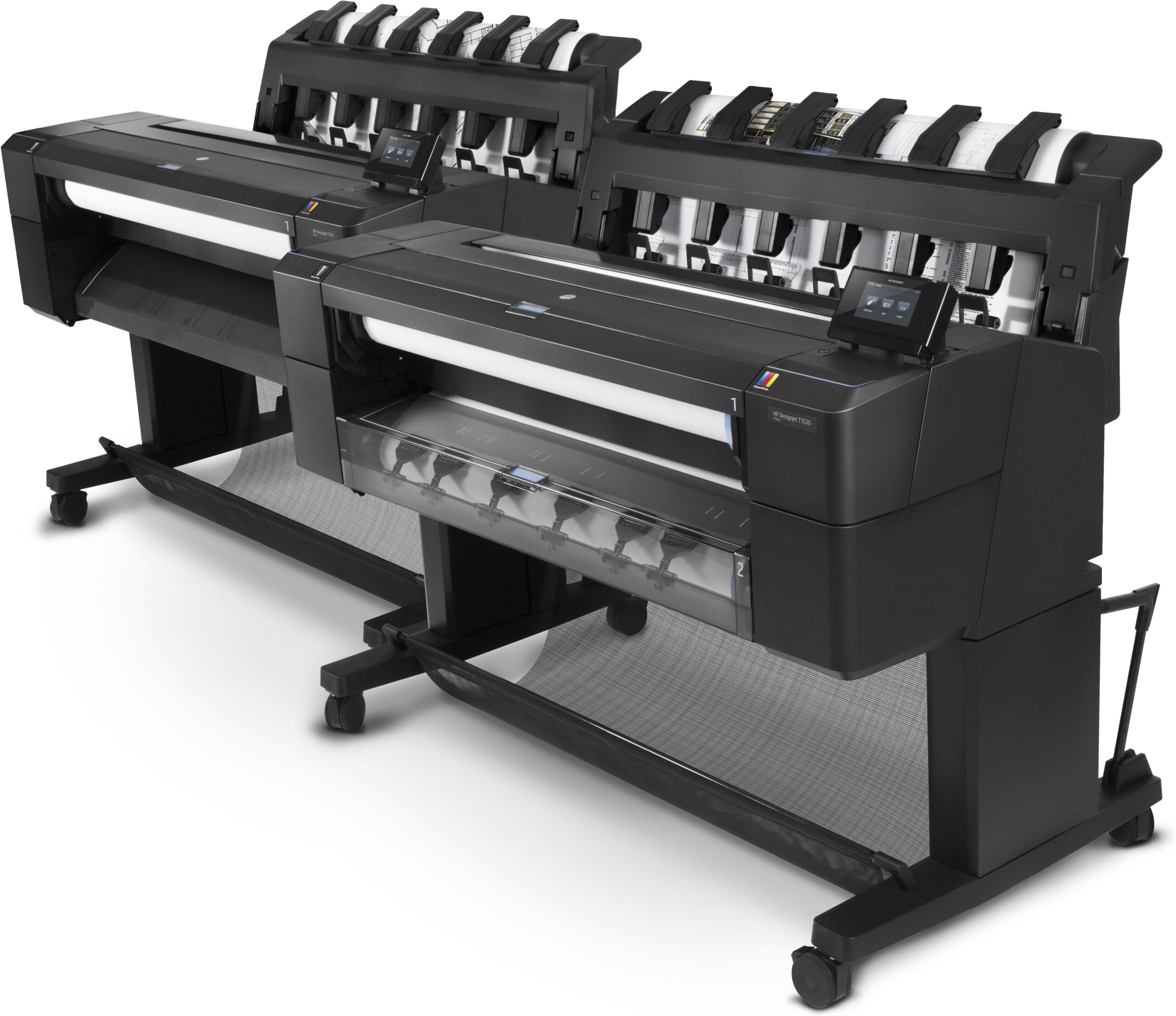

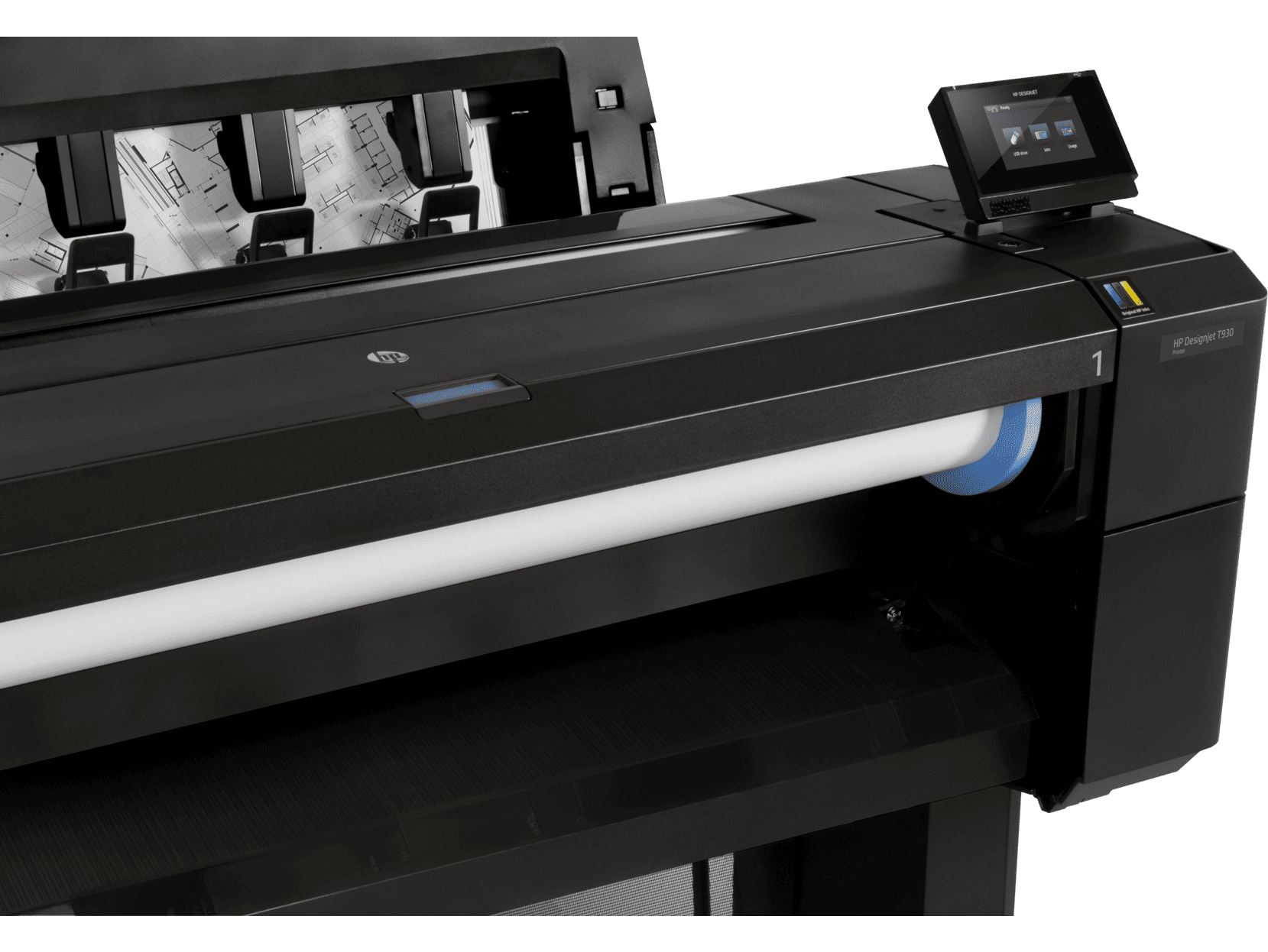

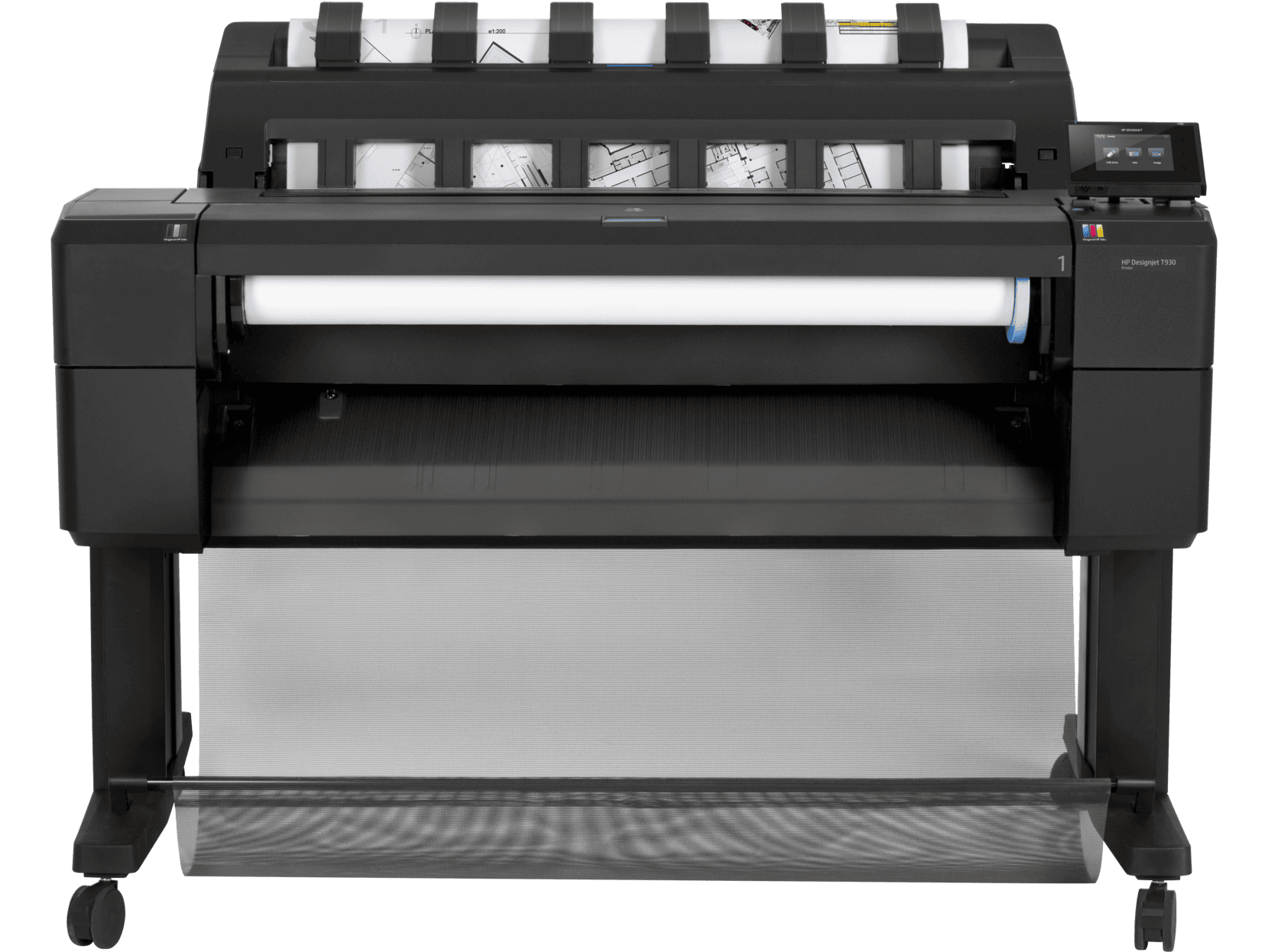

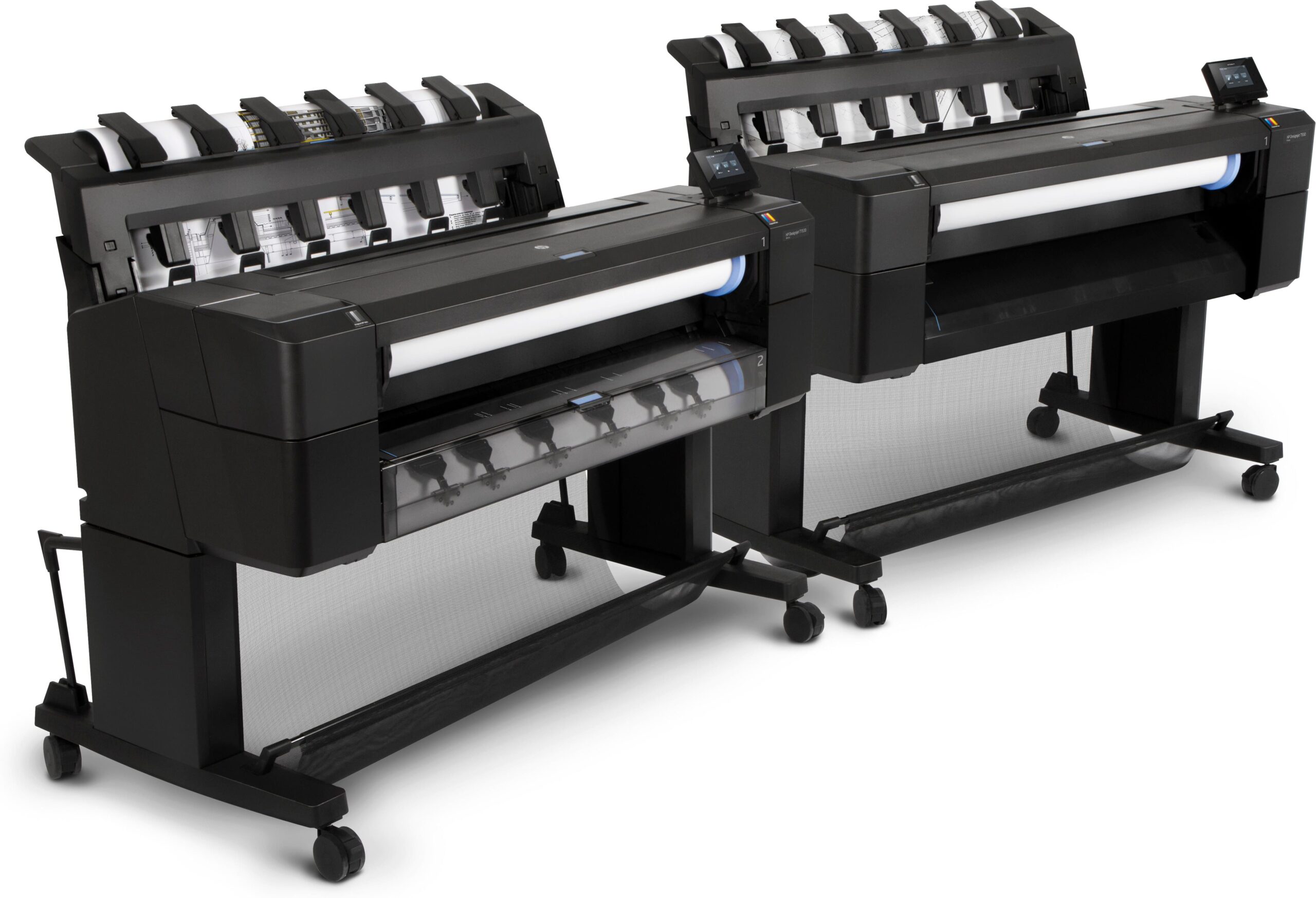

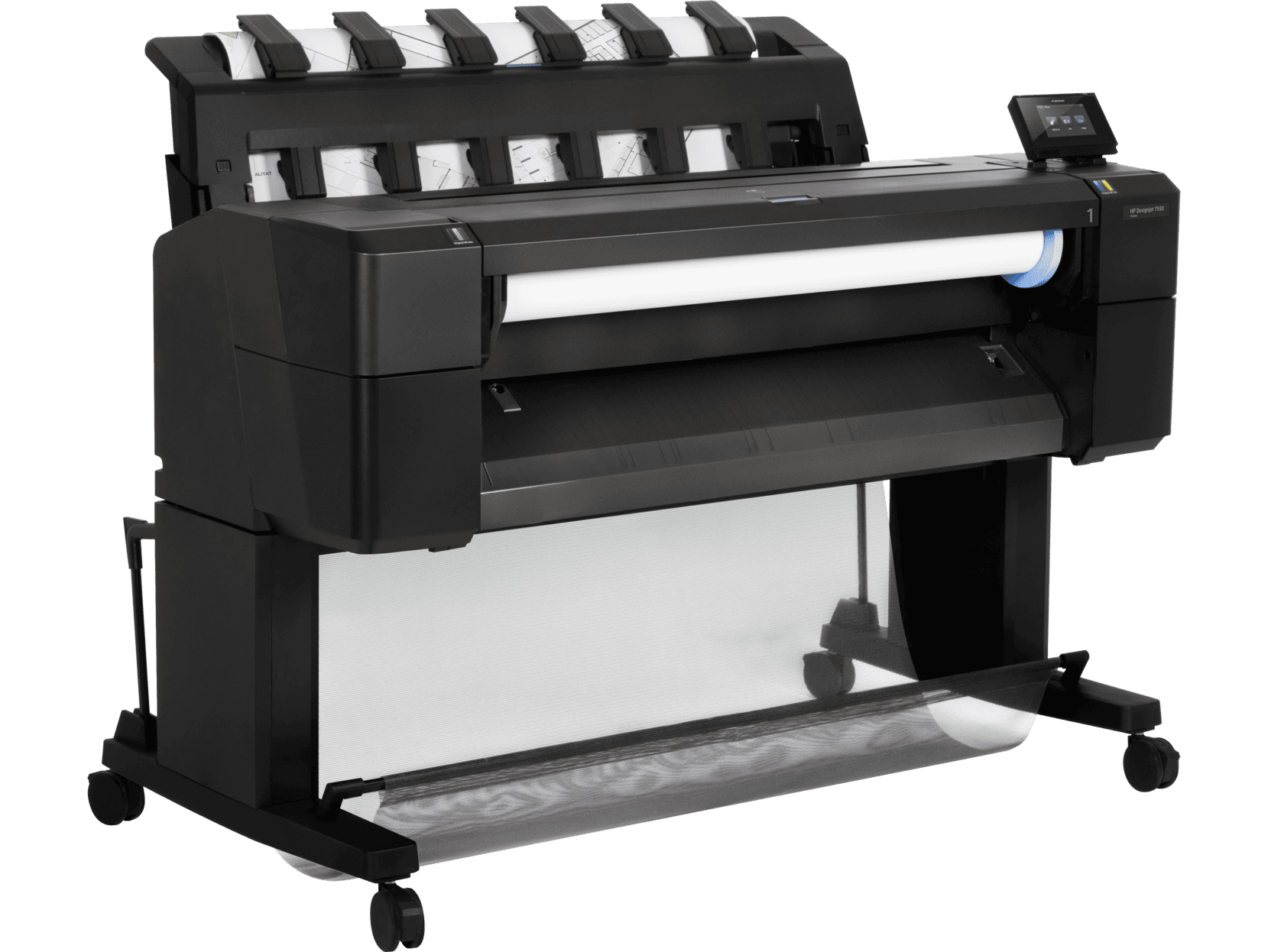

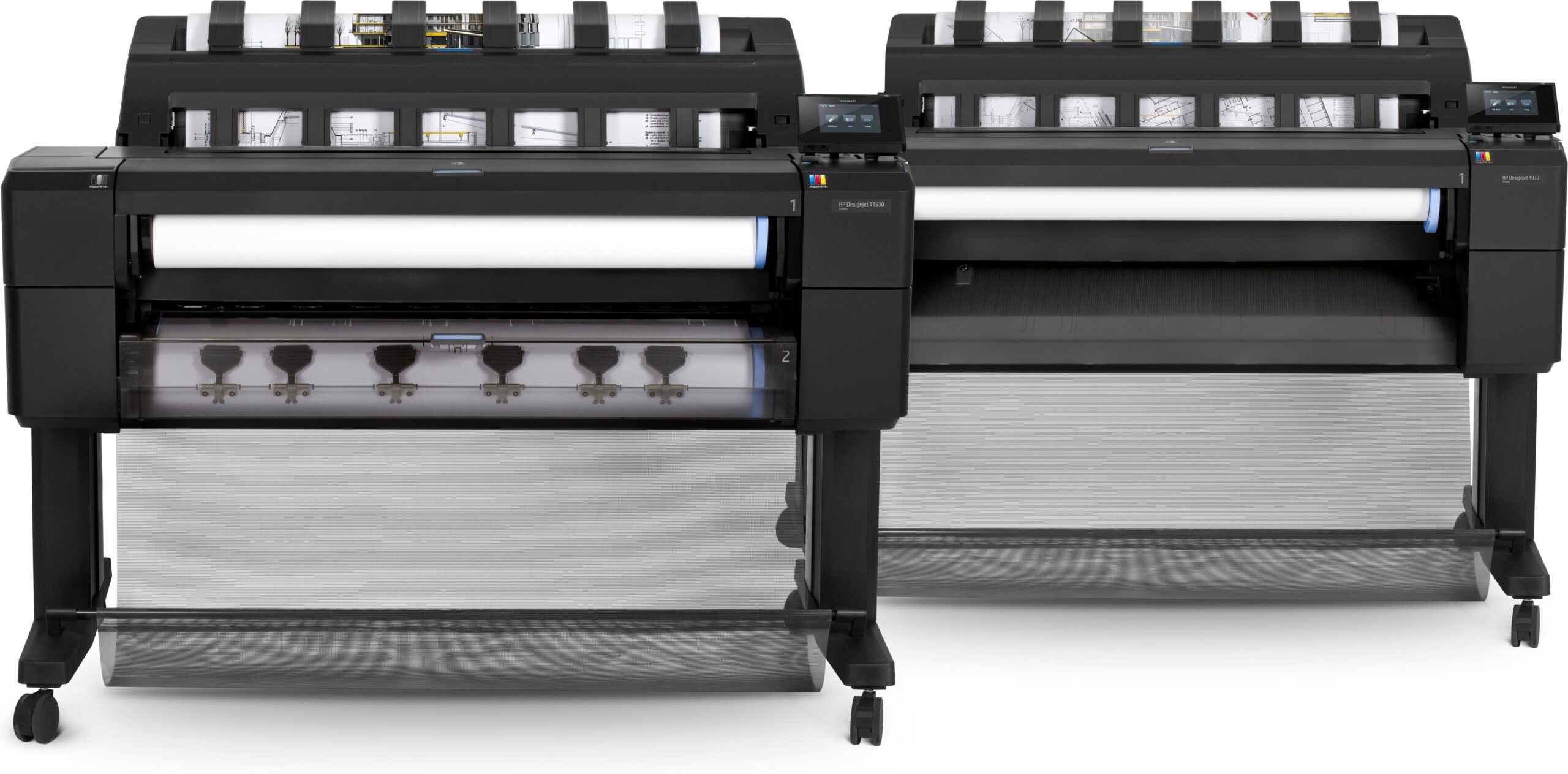

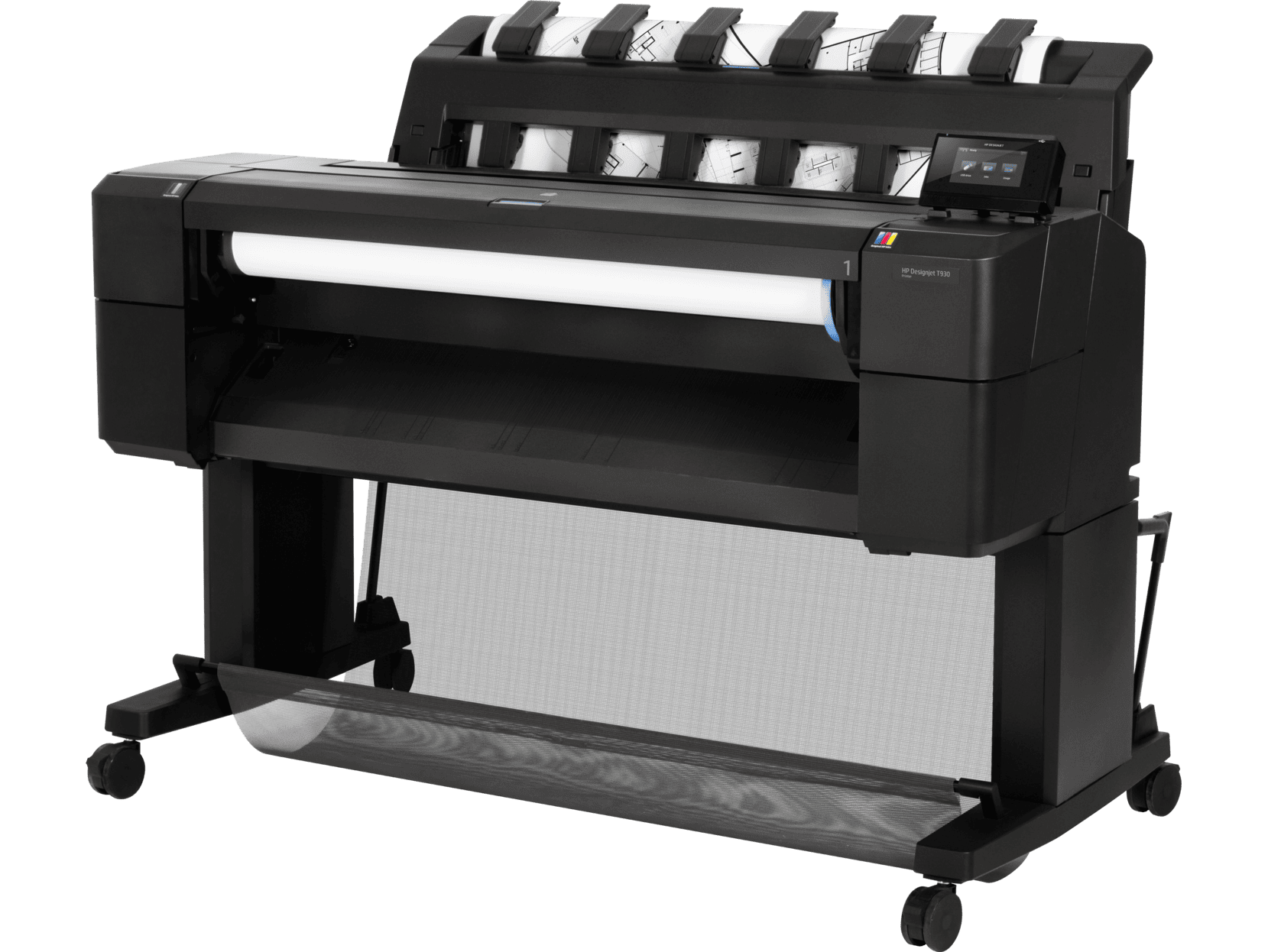

HP DesignJet T930
  • Speed 21 sec A1/120 A1/hr
  • Memory 64 GB 320 GB hard disk
  • 6 cartridges 130ml & 300ml
  • Printheads 1 (C, G, M, mK, pK, Y)
  • Technology HP Thermal Inkjet
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.1 x 0.1 x 0.1 x 0.1 in) Sheet: 3 x 22 x 3 x 3 mm (0.1 x 0.87 x 0.1 x 0.1 in) Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Printheads 1 (C, G, M, mK, pK, Y) Line accuracy +/- 0.1%5 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6 Media Handling Input: automatic front-loading roll feed, sheet feed; Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Connectivity8 Interfaces (standard) Gigabit Ethernet (1000Base-T) Print languages (standard)
  • Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X9
  • Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
  • Weight Printer 87 kg (191.8 lb) Shipping 120 kg (265 lb)
  • What’s in the box HP DesignJet T930 Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindle, quick reference guide, setup poster, startup software, power cord Environmental ranges Operating temperature: 5 to 40°C (41 to 104°F) Storage temperature: -25 to 55°C (-13 to 131°F) Operating humidity: 20 to 80% RH Acoustic Sound pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep) Sound power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power consumption 120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max

  • Speed 21 sec A1/120 A1/hr
  • Memory 64 GB 320 GB hard disk
  • 6 cartridges 130ml & 300ml
  • Printheads 1 (C, G, M, mK, pK, Y)
  • Technology HP Thermal Inkjet
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.1 x 0.1 x 0.1 x 0.1 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.1 x 0.87 x 0.1 x 0.1 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Printheads 1 (C, G, M, mK, pK, Y)
    Line accuracy +/- 0.1%5
    Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed minimum
    line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
    Media Handling Input: automatic front-loading roll feed, sheet feed;
    Output: integrated output stacking tray (from A4/A to AO/E,
    with up to 50 A1/D-size capacity), media bin, automatic cutter
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Connectivity8 Interfaces (standard) Gigabit Ethernet (1000Base-T)
    Print languages
    (standard)
  • Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7
    Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for
    Windows, HP driver for MAC OS X, HP Print Service for Android,
    Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X;
    PostScript drivers for Windows, Linux, and Mac OS X9
  • Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
  • Weight Printer 87 kg (191.8 lb)
    Shipping 120 kg (265 lb)
  • What’s in the box HP DesignJet T930 Printer, printhead, introductory ink cartridges, stacking tray, printer
    stand and media bin, spindle, quick reference guide, setup poster, startup software,
    power cord
    Environmental
    ranges
    Operating temperature: 5 to 40°C (41 to 104°F)
    Storage temperature: -25 to 55°C (-13 to 131°F)
    Operating humidity: 20 to 80% RH
    Acoustic Sound pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)
    Sound power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power
    consumption
    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
-
Quick View
HPDesignjet t1530ps
  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in) Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in) Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Printheads (C, G, M, mK, pK, Y) Line accuracy +/- 0.1%5 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6 Media Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T) Printing languages (standard) Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X9 Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in) Weight Printer 88 kg (194 lb) Shipping 120 kg (265 lb) What’s in the box HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Environmental ranges Operating temperature 5 to 40oC (41 to 104oF) Storage temperature -25 to 55oC (-13 to 131oF) Operating humidity 20 to 80% RH Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)) Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep) Power consumption 120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze Warranty One-year limited hardware warranty

  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Printheads (C, G, M, mK, pK, Y)
    Line accuracy +/- 0.1%5
    Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
    Media Handling Input: two automatic front-loading roll feeds, smart roll switching,
    sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to
    50 A1/D-size capacity), media bin, automatic cutter
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
    Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T)
    Printing languages
    (standard)
    Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level
    3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for
    Windows, HP driver for MAC OS X, HP Print Service for Android, Apple
    AirPrint driver
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript
    drivers for Windows, Linux, and Mac OS X9
    Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
    Weight Printer 88 kg (194 lb)
    Shipping 120 kg (265 lb)
    What’s in the
    box
    HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand
    and media bin, spindles, quick reference guide, setup poster, start-up software, power cord
    Environmental
    ranges
    Operating temperature 5 to 40oC (41 to 104oF)
    Storage temperature -25 to 55oC (-13 to 131oF)
    Operating humidity 20 to 80% RH
    Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))
    Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
    Power
    consumption
    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
    Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant),
    Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico
    (NYCE), Korea (KATS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada
    (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China
    (CCC), Japan (VCCI); Certified as Class A product:
    Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
    Warranty One-year limited hardware warranty
-
Quick View

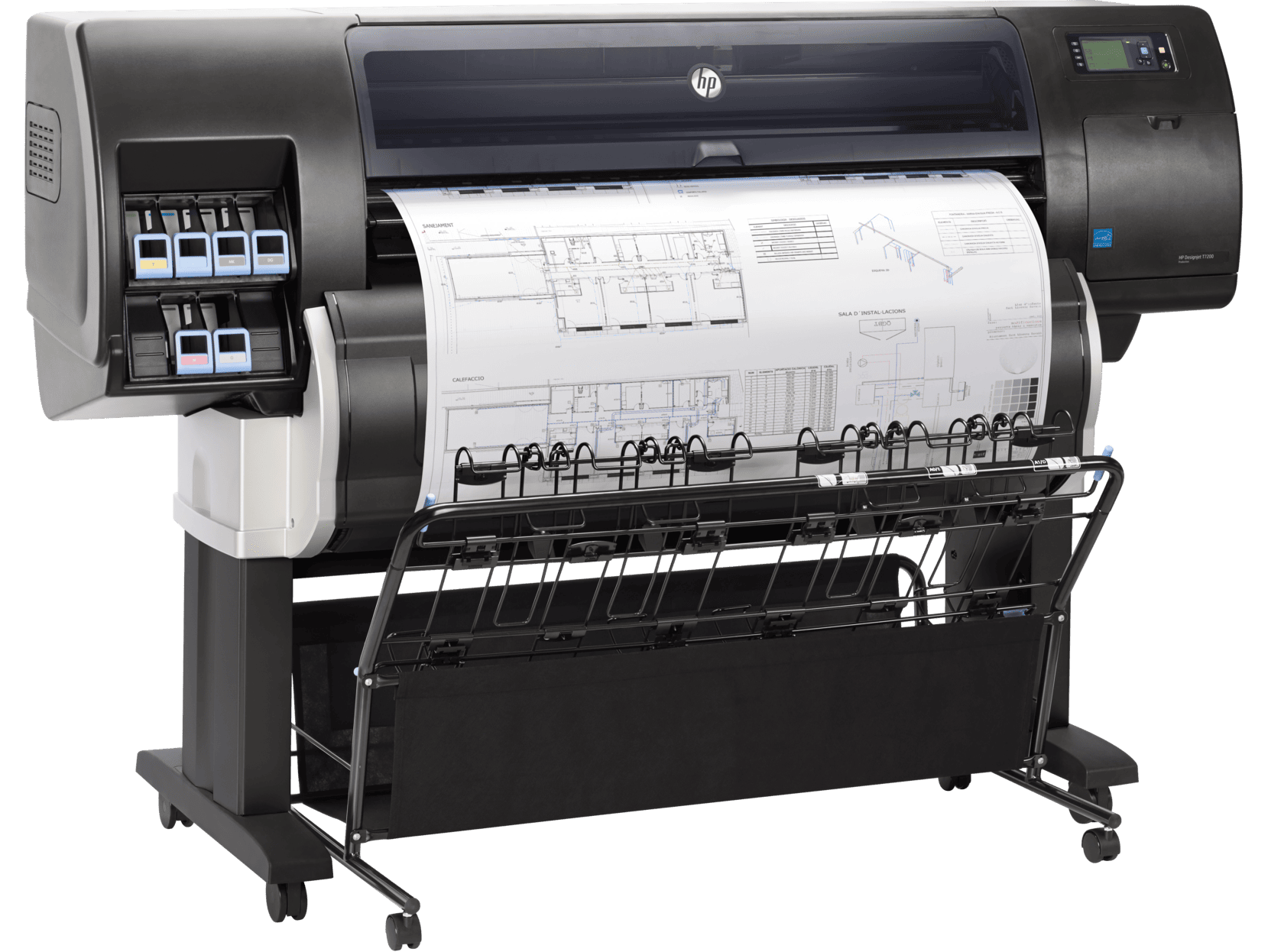

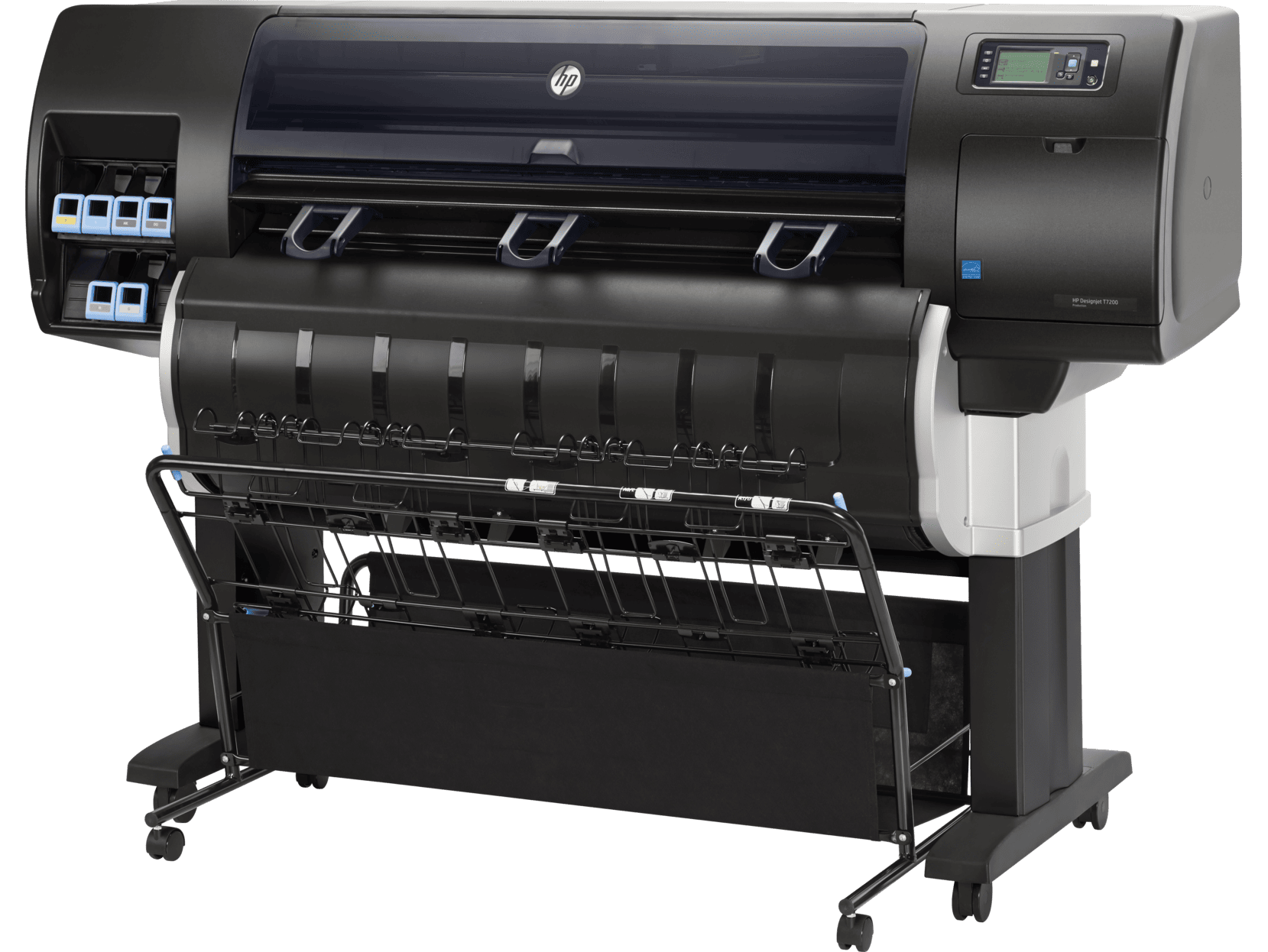

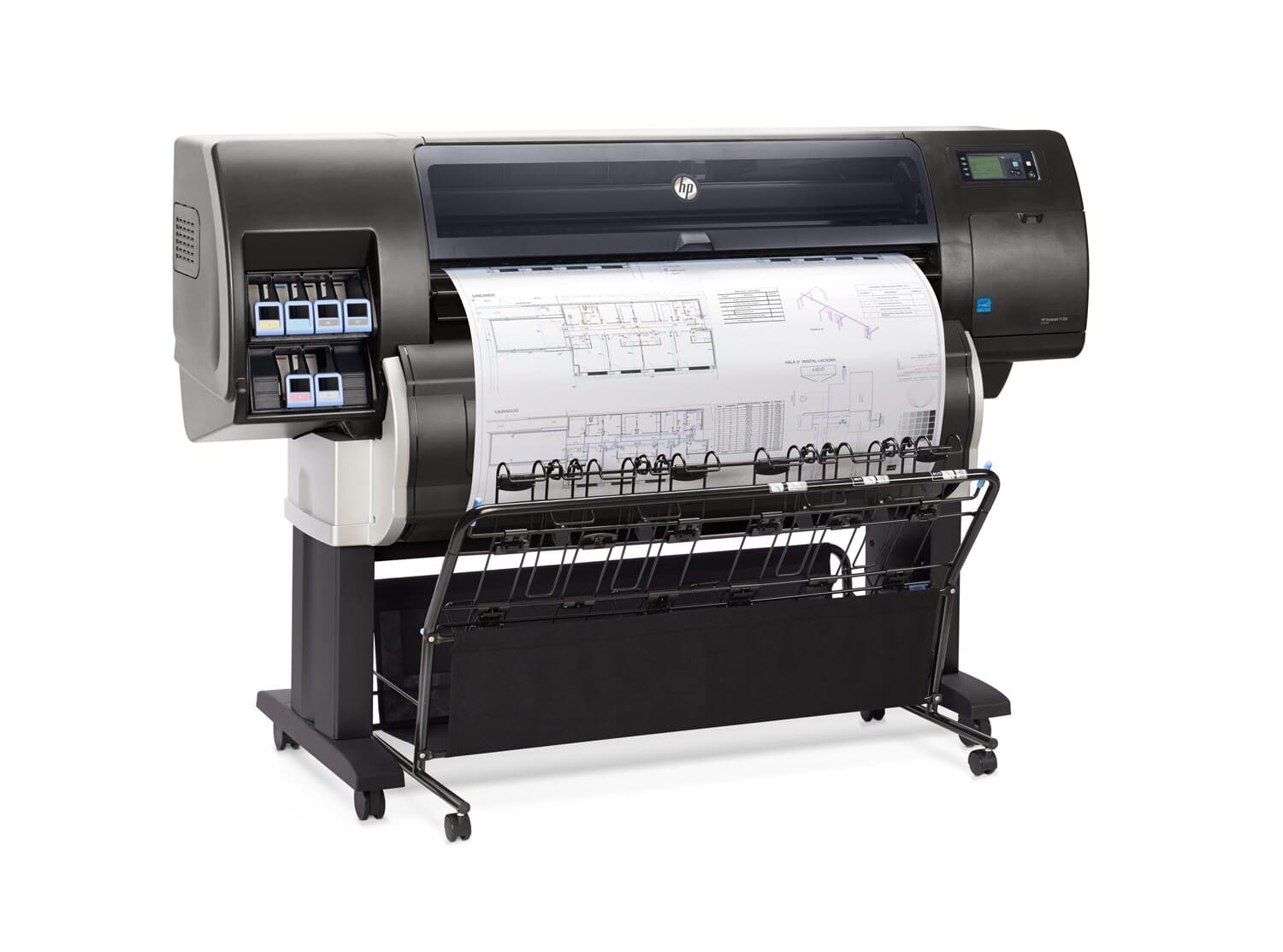

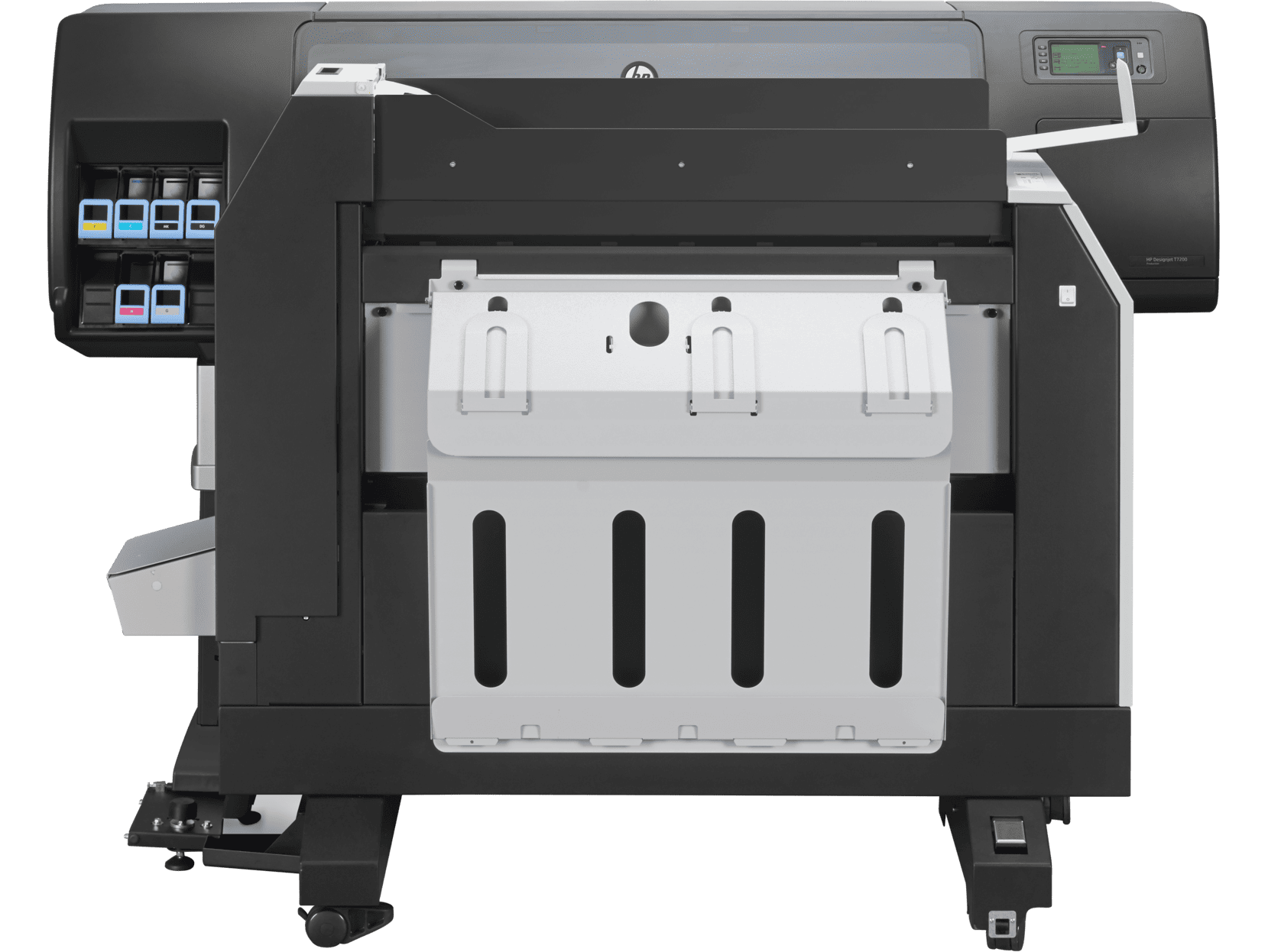

HP DesignJet T7200
  • Speed 15.5 sec A1, 165 A1/hr
  • Memory 64 GB , 320 GB hdd
  • Media Handling 3 roll feeds
  • 6 cartridges 400ml & 775ml
  • 8 printheads no.761
  • Color images6 Up to: 17.5 sec/page on A1/D or up to 117.5 m²/hr (1265 ft²/hr) on
  • coated media
  • Max print speed5 123.3 m²/hr (1320 ft²/hr)
  • Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
  • Ink types Dye-based (C, M, Y, G, DG); pigment-based (mK)
  • Ink drop 6 pl (C, M, DG, G); 9 pl (Y, mK)
  • Ink cartridges 6 (cyan, magenta, yellow, matte black, gray, dark gray)
  • Printheads 8 (cyan, magenta, yellow x2, dark gray, gray, matte black x2) Line accuracy +/- 0.1%7 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.06 mm (0.0024 in) (ISO/IEC 13660:2001(E))8
  • Media Handling Two roll feeds (upgradeable to three), automatic roll switching, rolls up to 200 m (650 ft) each, automatic cutter, media bin Size 280 to 1067-mm (11 to 42-in) rolls, up to 18 kg (26.5 lb)
  • Thickness Up to 0.4 mm (15.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos, Posters, Point of sale/ display, Photos Connectivity Interfaces
  • (standard) Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
  • Print languages (standard) HP-GL/2, HP-RTL, CALS G4 Print languages (optional) Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG Printing paths HP SmartStream software, Printer driver, HP Embedded Web Server
  • Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac OS X drivers with optional PostScript/PDF Upgrade Kit. Compatible with HP DesignJet Universal Print Driver for HP-GL/2 and HP DesignJet Universal Print Driver for PS (with PostScript/PDF Upgrade Kit)
  • Dimensions (w x d x h) Printer 1974 x 700 x 1374 mm (77.7 x 27.6 x 54.1 in) Shipping 2232 x 761 x 1269 mm (87.9 x 30 x 50 in)
  • Weight Printer 187 kg (412 lb) Shipping 225 kg (496 lb) What’s in the box
  • HP DesignJet T7200 Production Printer, 2-in spindle, printheads, introductory ink cartridges, printer stand and media bin, 3-in spindle adapter kit (x2), maintenance cartridge, startup software, quick reference guide, setup poster, power cords
  • Environmental ranges Operating temperature 5 to 40?C (41 to 104?F) Storage temperature -20 to 55?C (-4 to 131?F) Operating humidity 20 to 80% RH
  • Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep) Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)
  • Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off) Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)

  • Speed 15.5 sec A1, 165 A1/hr
  • Memory 64 GB , 320 GB hdd
  • Media Handling 3 roll feeds
  • 6 cartridges 400ml & 775ml
  • 8 printheads no.761
  • Color images6 Up to: 17.5 sec/page on A1/D or up to 117.5 m²/hr (1265 ft²/hr) on
  • coated media
  • Max print speed5 123.3 m²/hr (1320 ft²/hr)
  • Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x
    right)
    5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
  • Ink types Dye-based (C, M, Y, G, DG); pigment-based (mK)
  • Ink drop 6 pl (C, M, DG, G); 9 pl (Y, mK)
  • Ink cartridges 6 (cyan, magenta, yellow, matte black, gray, dark gray)
  • Printheads 8 (cyan, magenta, yellow x2, dark gray, gray, matte black x2)
    Line accuracy +/- 0.1%7
    Minimum line
    width
    0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line
    width
    0.06 mm (0.0024 in) (ISO/IEC 13660:2001(E))8
  • Media Handling Two roll feeds (upgradeable to three), automatic roll switching, rolls
    up to 200 m (650 ft) each, automatic cutter, media bin
    Size 280 to 1067-mm (11 to 42-in) rolls, up to 18 kg (26.5 lb)
  • Thickness Up to 0.4 mm (15.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos, Posters, Point of sale/
    display, Photos
    Connectivity Interfaces
  • (standard)
    Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
  • Print languages
    (standard)
    HP-GL/2, HP-RTL, CALS G4
    Print languages
    (optional)
    Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
    Printing paths HP SmartStream software, Printer driver, HP Embedded Web Server
  • Drivers
    (included)
    HP-GL/2, HP-RTL drivers for Windows; PostScript Windows
    and Mac OS X drivers with optional PostScript/PDF Upgrade Kit.
    Compatible with HP DesignJet Universal Print Driver for HP-GL/2
    and HP DesignJet Universal Print Driver for PS (with PostScript/PDF
    Upgrade Kit)
  • Dimensions
    (w x d x h)
    Printer 1974 x 700 x 1374 mm (77.7 x 27.6 x 54.1 in)
    Shipping 2232 x 761 x 1269 mm (87.9 x 30 x 50 in)
  • Weight Printer 187 kg (412 lb)
    Shipping 225 kg (496 lb)
    What’s in the
    box
  • HP DesignJet T7200 Production Printer, 2-in spindle, printheads, introductory ink
    cartridges, printer stand and media bin, 3-in spindle adapter kit (x2), maintenance
    cartridge, startup software, quick reference guide, setup poster, power cords
  • Environmental
    ranges
    Operating
    temperature
    5 to 40?C (41 to 104?F)
    Storage
    temperature
    -20 to 55?C (-4 to 131?F)
    Operating
    humidity
    20 to 80% RH
  • Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)
    Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)
  • Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep);
    < 0.3 watts (off)
    Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to
    240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)
-
Quick View
TAIMES T601
  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER Number of Printhead T1601-DX5-1H Ink Type Eco-solvent ink, water ink, Sublimation ink ink Supply System Auto Cleaning Capping System Media Type PP, vinyl sheet indoor, light box cloth, drawi ng paper canvas, vinyl, reflective material Special Function Print head Height 2-8mm Above Media step less Adjustable Heating System Intelligent embedded heating system Media Adsorption System Suction fan sucking step less adjustment Auto Media System Equipped（Max Media Weight 60kg） Auto cleaning capping Auto Capping System&Moisturizing System Clamp Combined anti-warping Clamps Auto take up system 60kg heavy type take-up system Print Interface Hi-USB2.0 PIP software Photoprint, Maintop Input power AC220V,50Hz / 60Hz 800W- 2500W Working environment Temperature：18-32℃ Humidity：46-65% Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs

  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER
    Number of Printhead T1601-DX5-1H
    Ink Type Eco-solvent ink, water ink, Sublimation ink
    ink Supply System Auto Cleaning Capping System
    Media
    Type PP, vinyl sheet indoor, light box cloth, drawi
    ng paper canvas, vinyl, reflective material
    Special
    Function
    Print head Height 2-8mm Above Media step less Adjustable
    Heating System Intelligent embedded heating system
    Media Adsorption System
    Suction fan sucking step less adjustment
    Auto Media System Equipped（Max Media Weight 60kg）
    Auto cleaning capping Auto Capping System&Moisturizing System
    Clamp Combined anti-warping Clamps
    Auto take up system 60kg heavy type take-up system
    Print Interface Hi-USB2.0
    PIP software Photoprint, Maintop
    Input power AC220V,50Hz / 60Hz 800W- 2500W
    Working environment Temperature：18-32℃ Humidity：46-65%
    Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs
    Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs
-
Quick View
HP Latex 365
  • Printing speed 91 m²/hr
  • Resolution Up to 1200 x 1200 dpi
  • Cartridge size 775 ml NO.831
  • Printheads 6
  • Weight Printer 216 kg (476 lb)
  • Printing Printing modes 91 m²/hr (980 ft²/hr) - Max Speed (1 pass) 31 m²/hr (334 ft²/hr) - Outdoor High Speed (4 pass) 23 m²/hr (248 ft²/hr) - Outdoor Plus (6 pass) 17 m²/hr (183 ft²/hr) - Indoor Quality (8 pass) 14 m²/hr (151 ft²/hr) - Indoor High Quality (10 pass) 6 m²/hr (65 ft²/hr) - Backlits, Textiles, and Canvas (16 pass) 5 m²/hr (54 ft²/hr) - High Saturation Textiles (20 pass) Margins 5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders) Ink types HP Latex Inks Ink cartridges Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer Printheads 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer) Color consistency18 Average <= 1 dE2000, 95% of colors <= 2 dE2000 Media Handling Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film) Media types Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles Roll size 254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support) Roll weight 42 kg (92.6 lb) Roll diameter 250 mm (9.8 in) Thickness Up to 0.5 mm (19.7 mil) Applications Banners, Displays, Double-sided banners, Exhibition and event graphics,Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light boxes – paper, Murals, POP/POS, Posters, Textile, Traffic signage, Vehicle graphics Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T) Dimensions Printer 2561 x 840 x 1380 mm (101 x 33 x 54 in) Shipping 2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in) (w x d x h) Operating area 2761 x 1840 mm (109 x 72 in) Weight Printer 216 kg (476 lb) Shipping 303.5 kg (671.5 lb) What’s in the box HP Latex 365 Printer, printheads, maintenance cartridge, ink collector, output platen protector, printer stand, spindle, take-up reel, variable front tension kit, loading accessory, user maintenance kit, edge holders, quick reference guide, setup poster, documentation software, power cords Environmental ranges Operating temperature 15 to 30°C (59 to 86°F) Operating humidity 20 to 80% RH (non-condensing) Acoustic Sound pressure 55 dB(A) (printing); 39 dB(A) (ready); < 15 dB(A) (sleep) Sound power 7.4 B(A) (printing); 5.7 B(A) (ready); < 3.5 B(A) (sleep) Power Consumption 4.6 kW (printing); 85 watts (ready); < 2.5 watts (sleep) Requirements Input voltage (auto ranging) 200 to 240 VAC (-10% +10%) two wires and PE; 50/60 Hz (+/- 3 Hz); two power cords; 16 A max per power cord

  • Printing speed 91 m²/hr
  • Resolution Up to 1200 x 1200 dpi
  • Cartridge size 775 ml NO.831
  • Printheads 6
  • Weight Printer 216 kg (476 lb)
  • Printing Printing modes 91 m²/hr (980 ft²/hr) – Max Speed (1 pass)
    31 m²/hr (334 ft²/hr) – Outdoor High Speed (4 pass)
    23 m²/hr (248 ft²/hr) – Outdoor Plus (6 pass)
    17 m²/hr (183 ft²/hr) – Indoor Quality (8 pass)
    14 m²/hr (151 ft²/hr) – Indoor High Quality (10 pass)
    6 m²/hr (65 ft²/hr) – Backlits, Textiles, and Canvas (16 pass)
    5 m²/hr (54 ft²/hr) – High Saturation Textiles (20 pass)
    Margins 5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)
    Ink types HP Latex Inks
    Ink cartridges Black, cyan, light cyan, light magenta, magenta, yellow,
    HP Latex Optimizer
    Printheads 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta,
    1 HP Latex Optimizer)
    Color
    consistency18
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Media Handling Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)
    Media types Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles
    Roll size 254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support)
    Roll weight 42 kg (92.6 lb)
    Roll diameter 250 mm (9.8 in)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Banners, Displays, Double-sided banners, Exhibition and event graphics,Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light
    boxes – paper, Murals, POP/POS, Posters, Textile, Traffic signage, Vehicle graphics
    Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T)
    Dimensions Printer 2561 x 840 x 1380 mm (101 x 33 x 54 in) Shipping 2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in)
    (w x d x h)
    Operating area 2761 x 1840 mm (109 x 72 in)
    Weight Printer 216 kg (476 lb)
    Shipping 303.5 kg (671.5 lb)
    What’s in the
    box
    HP Latex 365 Printer, printheads, maintenance cartridge, ink collector, output
    platen protector, printer stand, spindle, take-up reel, variable front tension kit,
    loading accessory, user maintenance kit, edge holders, quick reference guide,
    setup poster, documentation software, power cords
    Environmental
    ranges
    Operating
    temperature
    15 to 30°C (59 to 86°F)
    Operating
    humidity
    20 to 80% RH (non-condensing)
    Acoustic Sound pressure 55 dB(A) (printing); 39 dB(A) (ready); < 15 dB(A) (sleep)
    Sound power 7.4 B(A) (printing); 5.7 B(A) (ready); < 3.5 B(A) (sleep)
    Power Consumption 4.6 kW (printing); 85 watts (ready); < 2.5 watts (sleep)
    Requirements Input voltage (auto ranging) 200 to 240 VAC (-10% +10%) two
    wires and PE; 50/60 Hz (+/- 3 Hz); two power cords;
    16 A max per power cord
-
Quick View
Roland
  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.

  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.
-
Quick View
Taimes T5-KM5121
  • Media Width 3300mm
  • Speed 2pass 110sqm/h
  • Konica Minolta 512I head
  • Ink Type Low Solvent Ink
  • Capacity 5L Per color
Product Name TAIMES T5 SOLVENT PRINTER Maximum Print Width 3200mm (10.5ft) Printing Resolution 480DPI (Physical) Product Model 4H KM512I-30PL Printhead (4head or 8head) 480X360dpi 2pass 110sqm/h 480X540dpi 3pass 80sqm/h 480X720dpi 4pass 50sqm/h Ink Type Low Solvent Ink Color 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM) Capacity 5L Per Main Tank of Each Color Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System Media Width 3300mm (10.8ft) Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc Media Feeding System Equipped (Max. Media Weight 120kg ) Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System Heating & Drying System Equipped (Drying System Optional) Clamp Equipped Print Interface USB2.0 Printhead Height 2 to 4 mm Above Media Adjustable RIP Software PhotoPRINT10.5 or Maintop V5.30 Input Power AC 220V ,50Hz Operation Environment Temperature: 20~28℃ Humidity: 40%~60% Machine Dimension L4,360x W790 x H1,170 mm; Net Weight: 700Kgs Package Dimension Dismantle package:L4,820 x W1000 x H1050mm Normal Package: L4,820 x W1000 x H1570mm; Gross Weight: 820Kgs; Four units in one 20 feet container

  • Media Width 3300mm
  • Speed 2pass 110sqm/h
  • Konica Minolta 512I head
  • Ink Type Low Solvent Ink
  • Capacity 5L Per color

Product Name TAIMES T5 SOLVENT PRINTER
Maximum Print Width 3200mm (10.5ft)
Printing Resolution 480DPI (Physical)
Product Model 4H
KM512I-30PL Printhead (4head or 8head)
480X360dpi 2pass 110sqm/h
480X540dpi 3pass 80sqm/h
480X720dpi 4pass 50sqm/h
Ink Type Low Solvent Ink
Color 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM)
Capacity 5L Per Main Tank of Each Color
Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Media Width 3300mm (10.8ft) Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Media Feeding System Equipped (Max. Media Weight 120kg )
Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Heating & Drying System Equipped (Drying System Optional)
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software PhotoPRINT10.5 or Maintop V5.30
Input Power AC 220V ,50Hz
Operation Environment Temperature: 20~28℃ Humidity: 40%~60%
Machine Dimension L4,360x W790 x H1,170 mm; Net Weight: 700Kgs
Package Dimension
Dismantle package:L4,820 x W1000 x H1050mm
Normal Package: L4,820 x W1000 x H1570mm;
Gross Weight: 820Kgs; Four units in one 20 feet container

-
Quick View

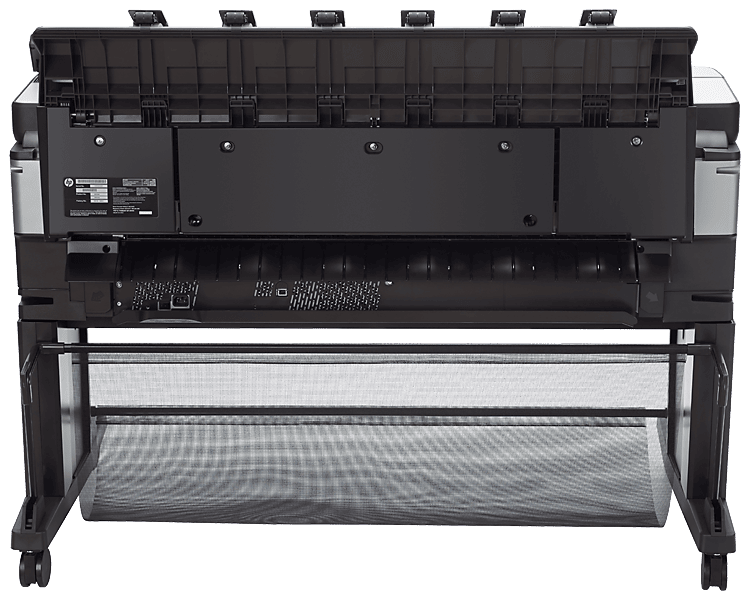

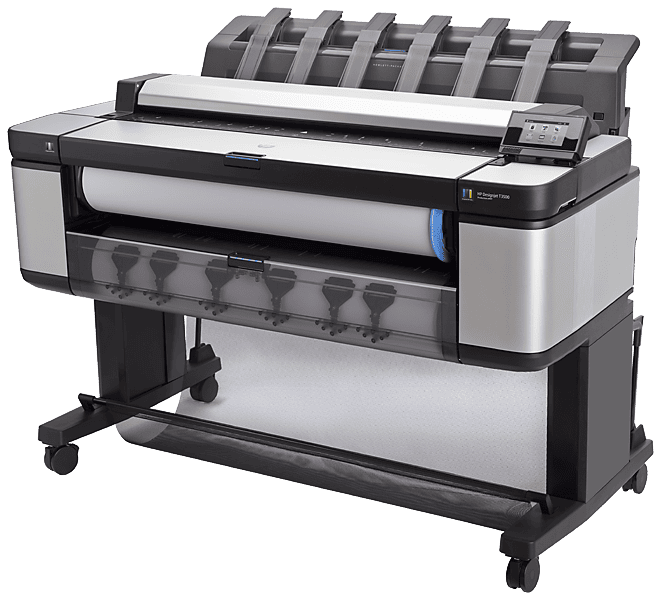

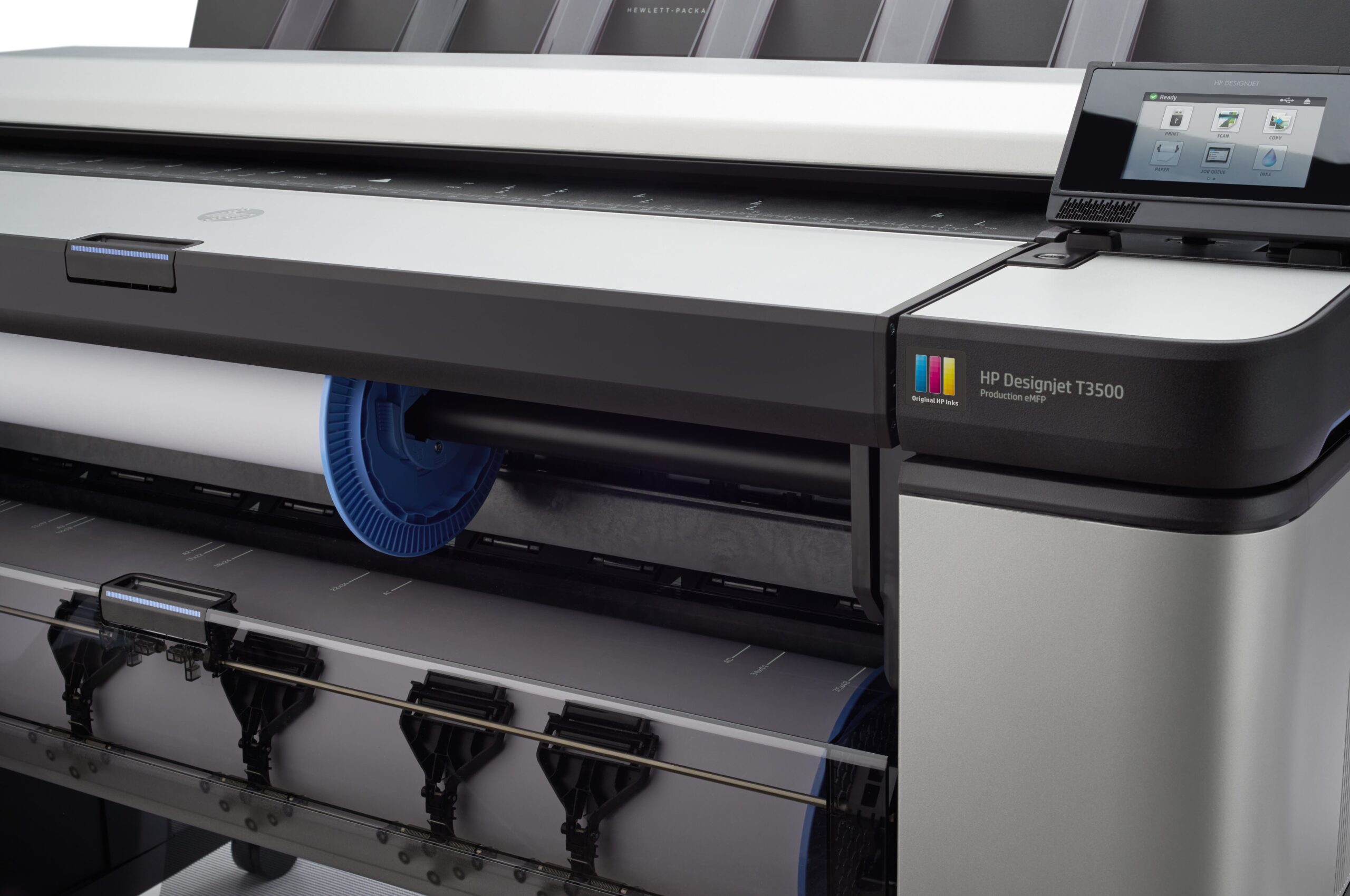

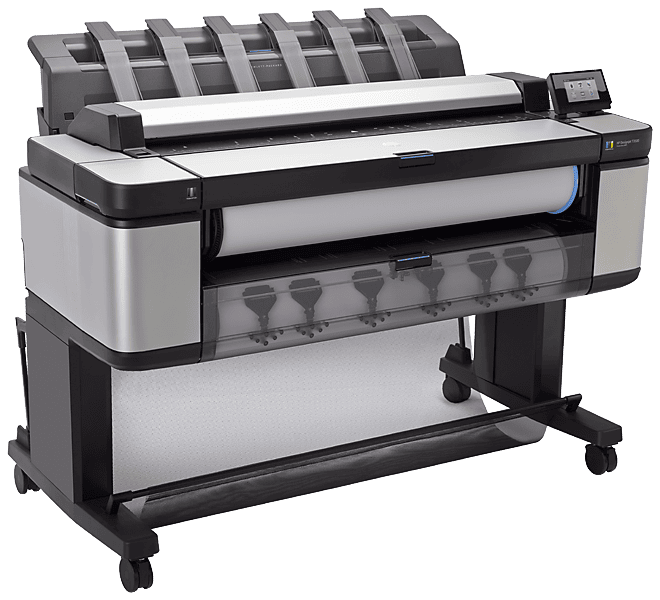

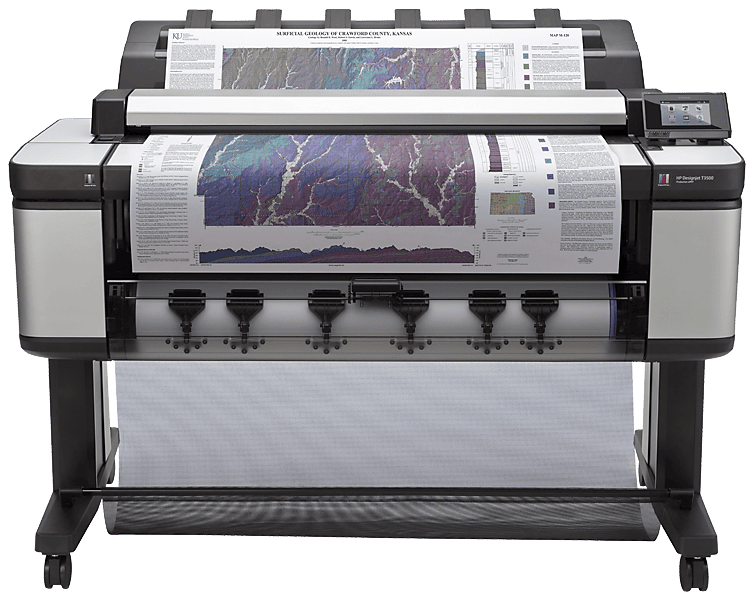

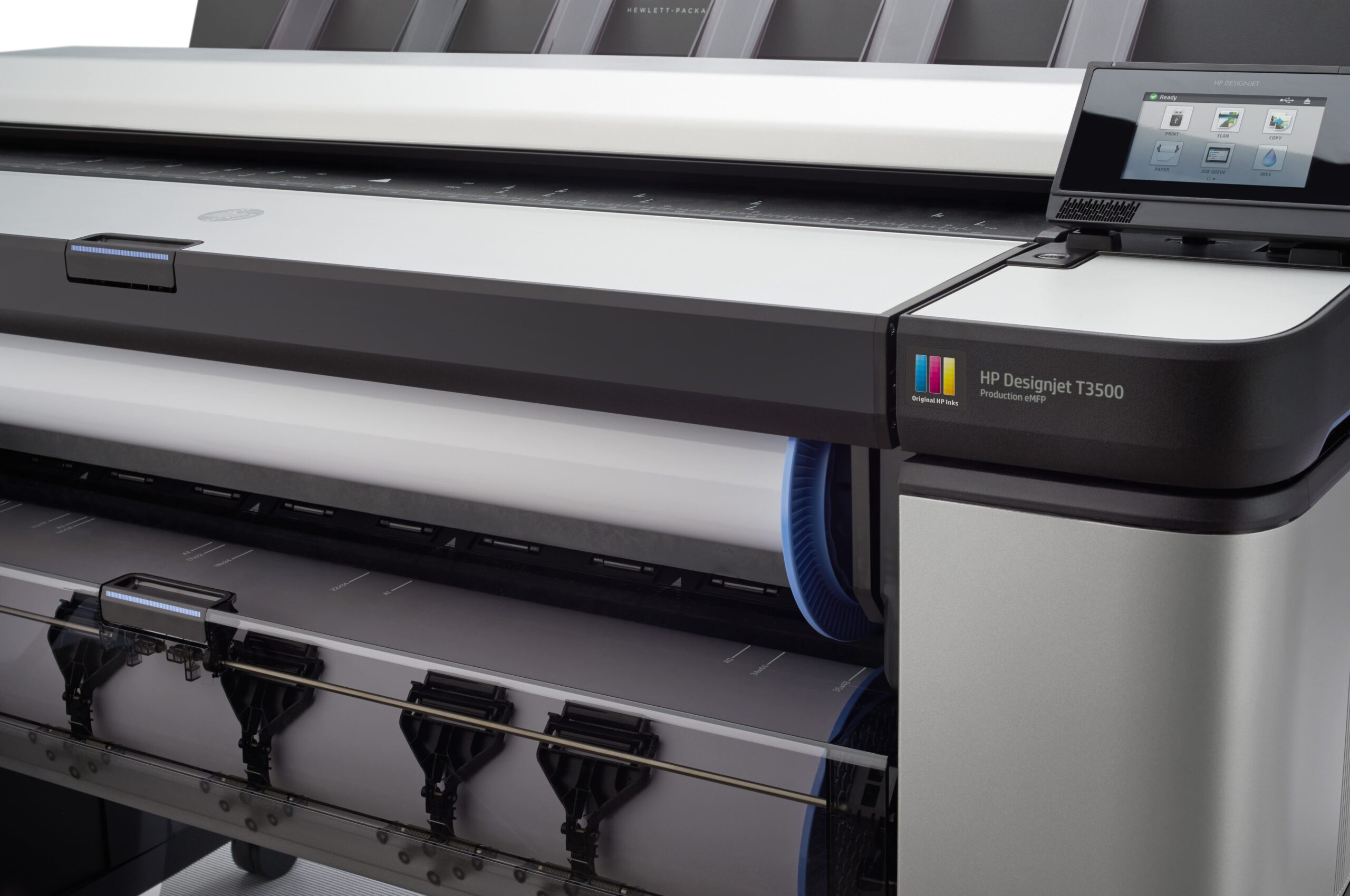

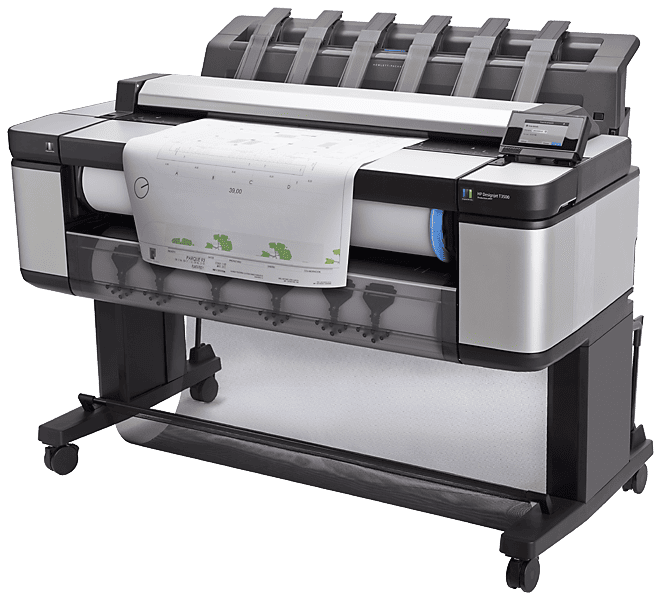

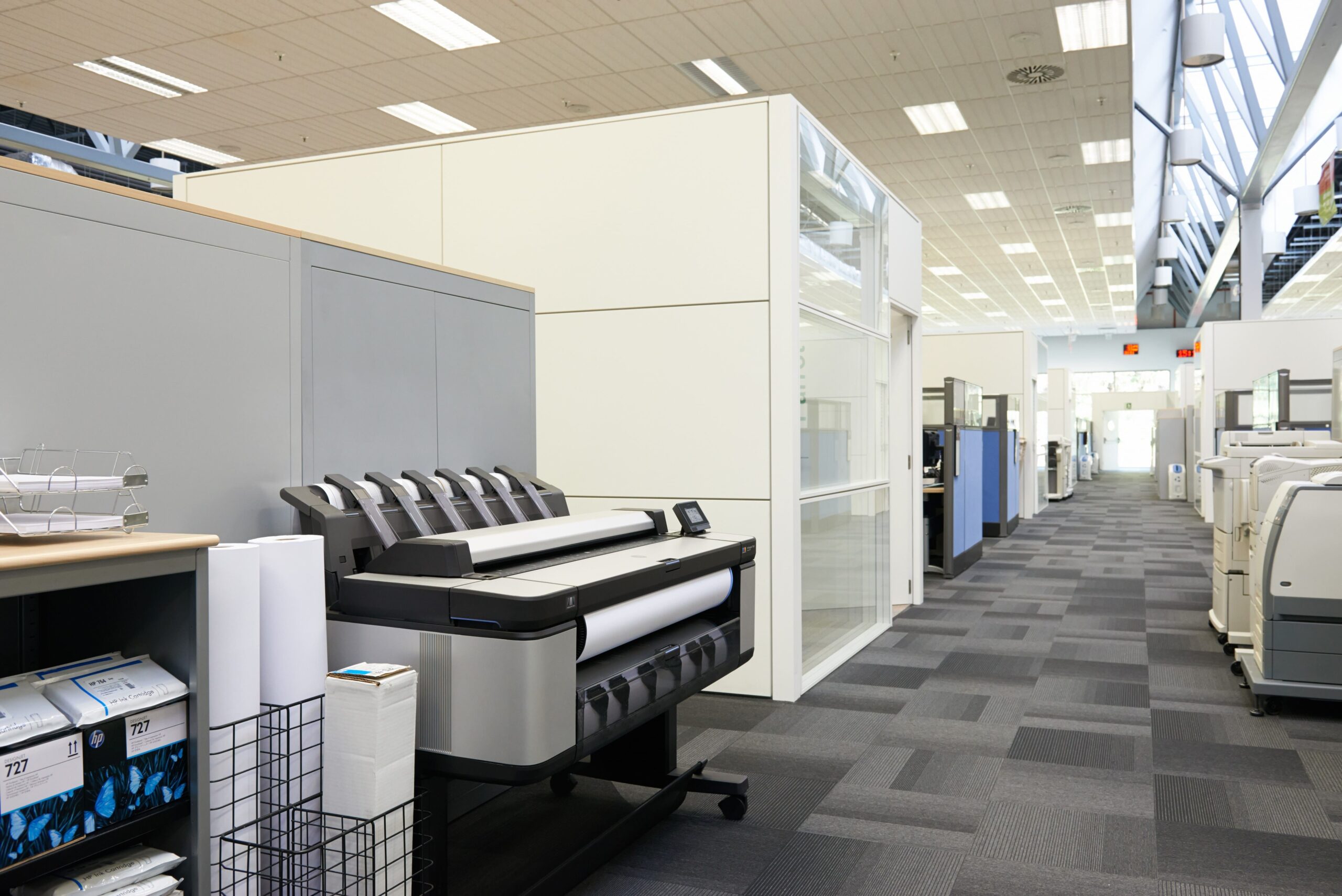

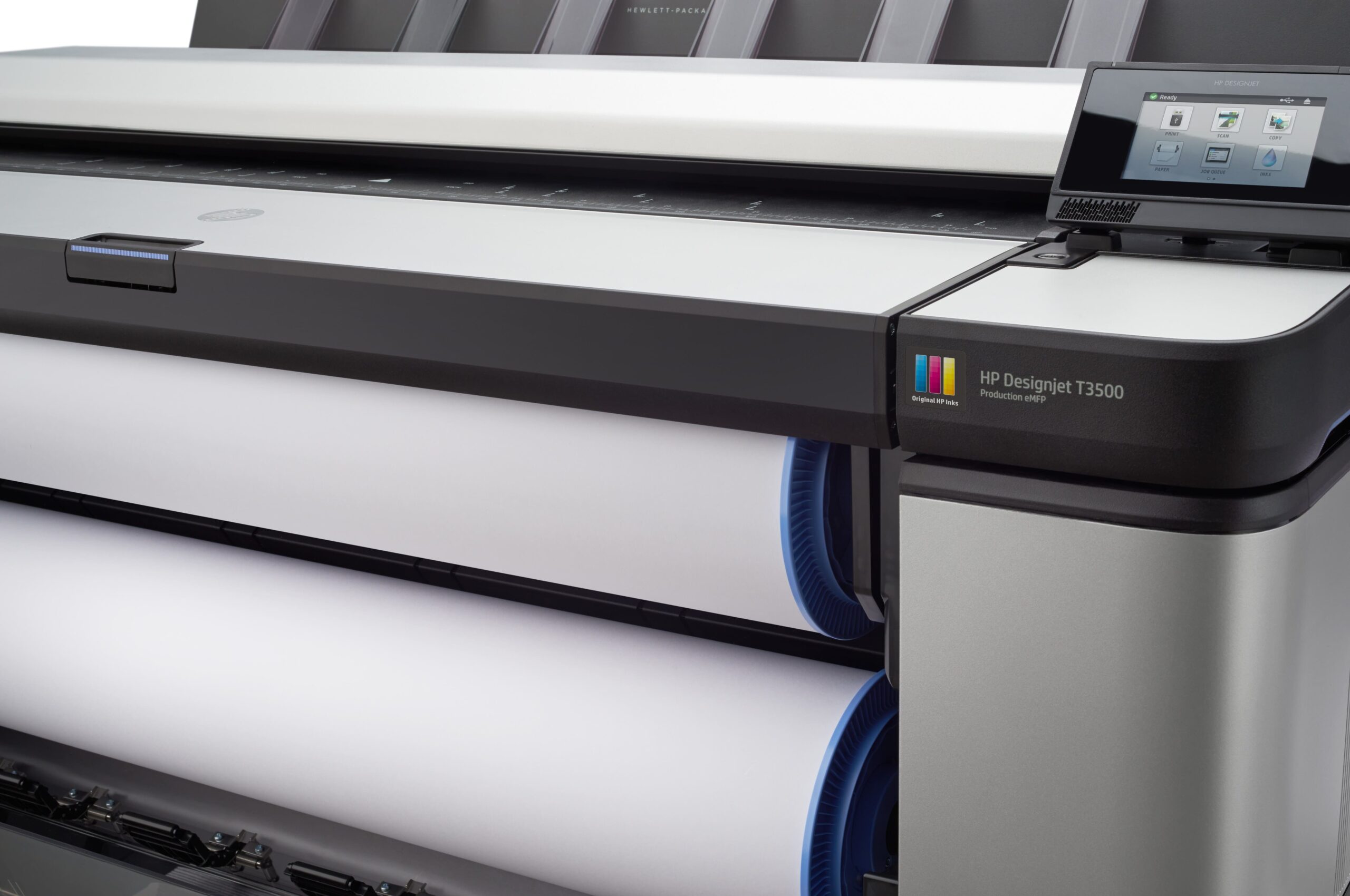

HP Designjet T3500mfp
  • Speed  21 sec A1, 120 A1 /hr
  • Memory 128gb,500gb hdd
  • Warranty 2 years
  • Scan speed up to 19.05 cm/sec

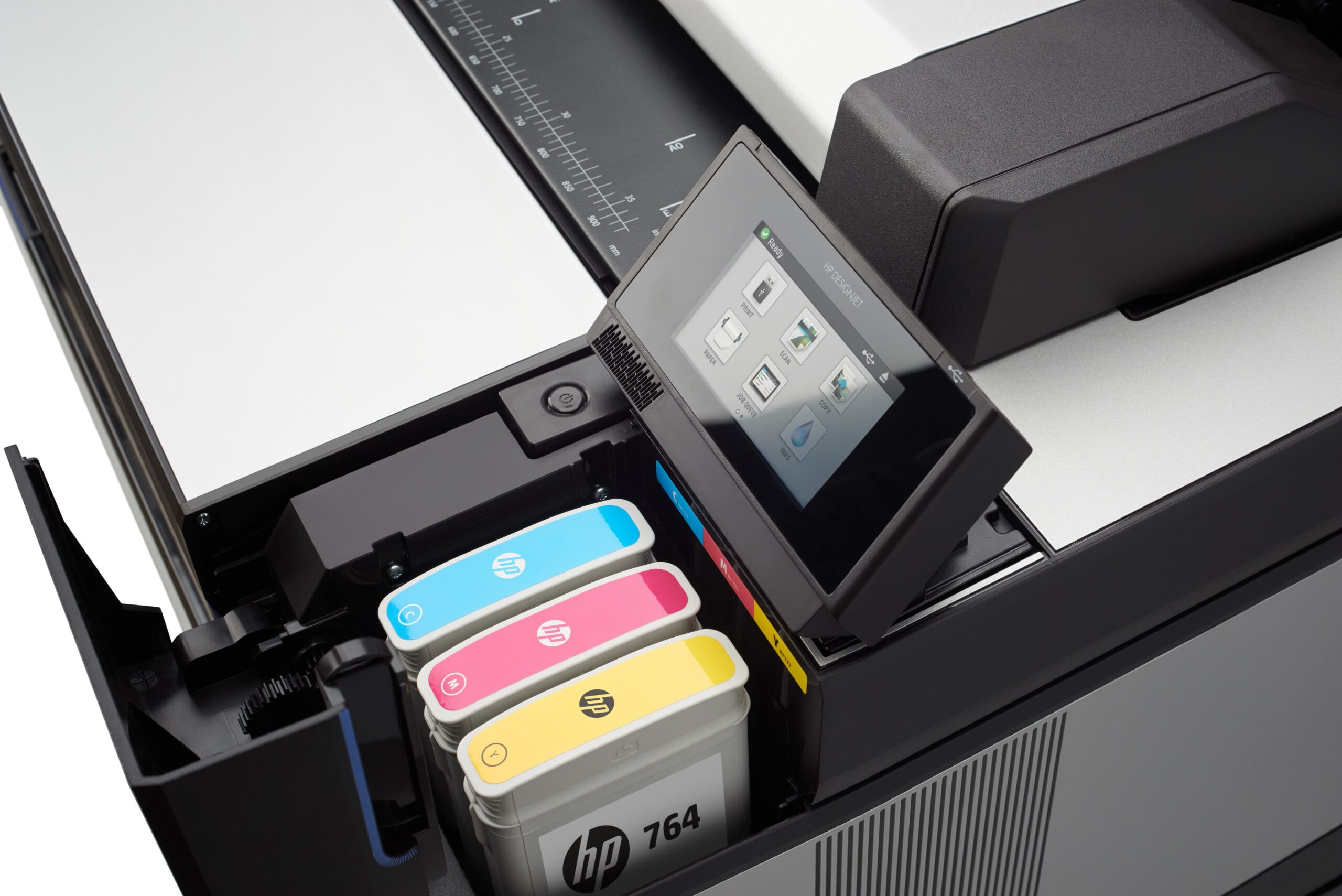

  • HP 764 300-ml  Ink Cartridge
  • B3P06A HP 727 Designjet PrintheadPrint resolution Up to 2400 x 1200 optimised dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (borderless on photo papers) Sheet: 3 x 22 x 3 x 3 mm Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Print heads 1 (cyan, grey, magenta, matte black, photo black, yellow) Line accuracy +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater) at 23°C, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal mode with Original HP inks Minimum line width 0.02 mm (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E)) Media Handling Input: two automatic front-loading roll feeds, smart roll switching, rolls up to 200 m long each and 180 mm of diameter, sheet feed; Output: integrated output stacker (from A4 to A0, with up to 100 A1-size capacity), media bin, automatic cutter; Scanner: straight-through scan paper path for sheet and cardboard originals Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) Size 210 to 914 mm wide sheets; 279 to 914 mm rolls A4; A3; A2; A1; A0 Weight 60 to 328 g/m² Thickness Up to 19.7 mil (0.5 mm) Scan Scan speed Up to 6.35 cm/sec (colour, 200 dpi); up to 19.05 cm/sec (greyscale, 200 dpi) Resolution 600 x 600 dpi Maximum scan size 914 x 8000 mm (JPEG); 914 x 5000 mm (PDF); 610 x 15000 mm (TIFF) Maximum scan thickness 0.8 mm Copy Reduction/enlargement 25 to 400% Maximum copies Up to 99 copies Copier settings Copy quality; copy colour; roll; paper output; content type; original paper type; background removal; contrast; de-skew; blueprints support; copy margin layout; full width; job queue storage mode Memory Standard Intel Core i5M-260 processor, 128GB (virtual). Based on 2.5 GB RAM Hard disk Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified) Connectivity Interfaces (standard) High-Speed USB 2.0 certified host connector; Gigabit Ethernet (1000Base-T) Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI Printing paths HP Designjet SmartStream (optional), printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing Print languages (optional) Adobe PostScript 3; Adobe PDF 1.7 Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit; Compatible with HP Designjet Universal Print Driver for HP-GL/2 and HP Designjet Universal
  • What's in the box B9E24A HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick reference guide; setup poster; startup software; power cord B9E24B HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick reference guide; setup poster; startup software; power cord
  • Dimensions (w x d x h) Printer 1400 x 784 x 1109 mm Packaged 1502 x 780.5 x 804 mm
  • Weight Printer 114 kg Packaged 141 kg
  • Power Power consumption < 120 watts (printing); < 2 watts / < 7 watts with embedded Digital Front End (sleep); 0 watts (off); 12 Wh per A0 (per print) Power requirements Input voltage

  • Speed  21 sec A1, 120 A1 /hr
  • Memory 128gb,500gb hdd
  • Warranty 2 years
  • Scan speed up to 19.05 cm/sec
  • HP 764 300-ml  Ink Cartridge
  • B3P06A HP 727 Designjet PrintheadPrint resolution Up to 2400 x 1200 optimised dpi
    Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (borderless on photo papers)
    Sheet: 3 x 22 x 3 x 3 mm
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Print heads 1 (cyan, grey, magenta, matte black, photo black, yellow)
    Line accuracy +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater)
    at 23°C, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal
    mode with Original HP inks
    Minimum line width 0.02 mm (HP-GL/2 addressable)
    Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E))
    Media
    Handling Input: two automatic front-loading roll feeds, smart roll switching, rolls up
    to 200 m long each and 180 mm of diameter, sheet feed; Output:
    integrated output stacker (from A4 to A0, with up to 100 A1-size capacity),
    media bin, automatic cutter; Scanner: straight-through scan paper path
    for sheet and cardboard originals
    Types Bond and coated paper (bond, coated, heavyweight coated, super
    heavyweight plus matte, coloured), technical paper (natural tracing,
    translucent bond, vellum), film (clear, matte, polyester), photographic
    paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive
    (two-view cling, indoor paper, polypropylene, vinyl)
    Size 210 to 914 mm wide sheets; 279 to 914 mm rolls
    A4; A3; A2; A1; A0
    Weight 60 to 328 g/m²
    Thickness Up to 19.7 mil (0.5 mm)
    Scan
    Scan speed Up to 6.35 cm/sec (colour, 200 dpi); up to 19.05 cm/sec (greyscale, 200
    dpi)
    Resolution 600 x 600 dpi
    Maximum scan size 914 x 8000 mm (JPEG); 914 x 5000 mm (PDF); 610 x 15000 mm (TIFF)
    Maximum scan thickness 0.8 mm
    Copy
    Reduction/enlargement 25 to 400%
    Maximum copies Up to 99 copies
    Copier settings Copy quality; copy colour; roll; paper output; content type; original paper
    type; background removal; contrast; de-skew; blueprints support; copy
    margin layout; full width; job queue storage mode
    Memory
    Standard Intel Core i5M-260 processor, 128GB (virtual). Based on 2.5 GB RAM
    Hard disk Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified)
    Connectivity
    Interfaces (standard) High-Speed USB 2.0 certified host connector; Gigabit Ethernet
    (1000Base-T)
    Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI
    Printing paths HP Designjet SmartStream (optional), printer driver, HP Embedded Web
    Server, direct printing from USB flash drive, email printing
    Print languages (optional) Adobe PostScript 3; Adobe PDF 1.7
    Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X;
    PostScript Windows and Mac drivers with optional PostScript/PDF
    Upgrade Kit; Compatible with HP Designjet Universal Print Driver for
    HP-GL/2 and HP Designjet Universal
  • What’s in the box
    B9E24A HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking
    tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick
    reference guide; setup poster; startup software; power cord
    B9E24B HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking
    tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick
    reference guide; setup poster; startup software; power cord
  • Dimensions (w x d x h)
    Printer 1400 x 784 x 1109 mm
    Packaged 1502 x 780.5 x 804 mm
  • Weight
    Printer 114 kg
    Packaged 141 kg
  • Power
    Power consumption < 120 watts (printing); < 2 watts / < 7 watts with embedded Digital Front
    End (sleep); 0 watts (off); 12 Wh per A0 (per print)
    Power requirements Input voltage
-
Quick View

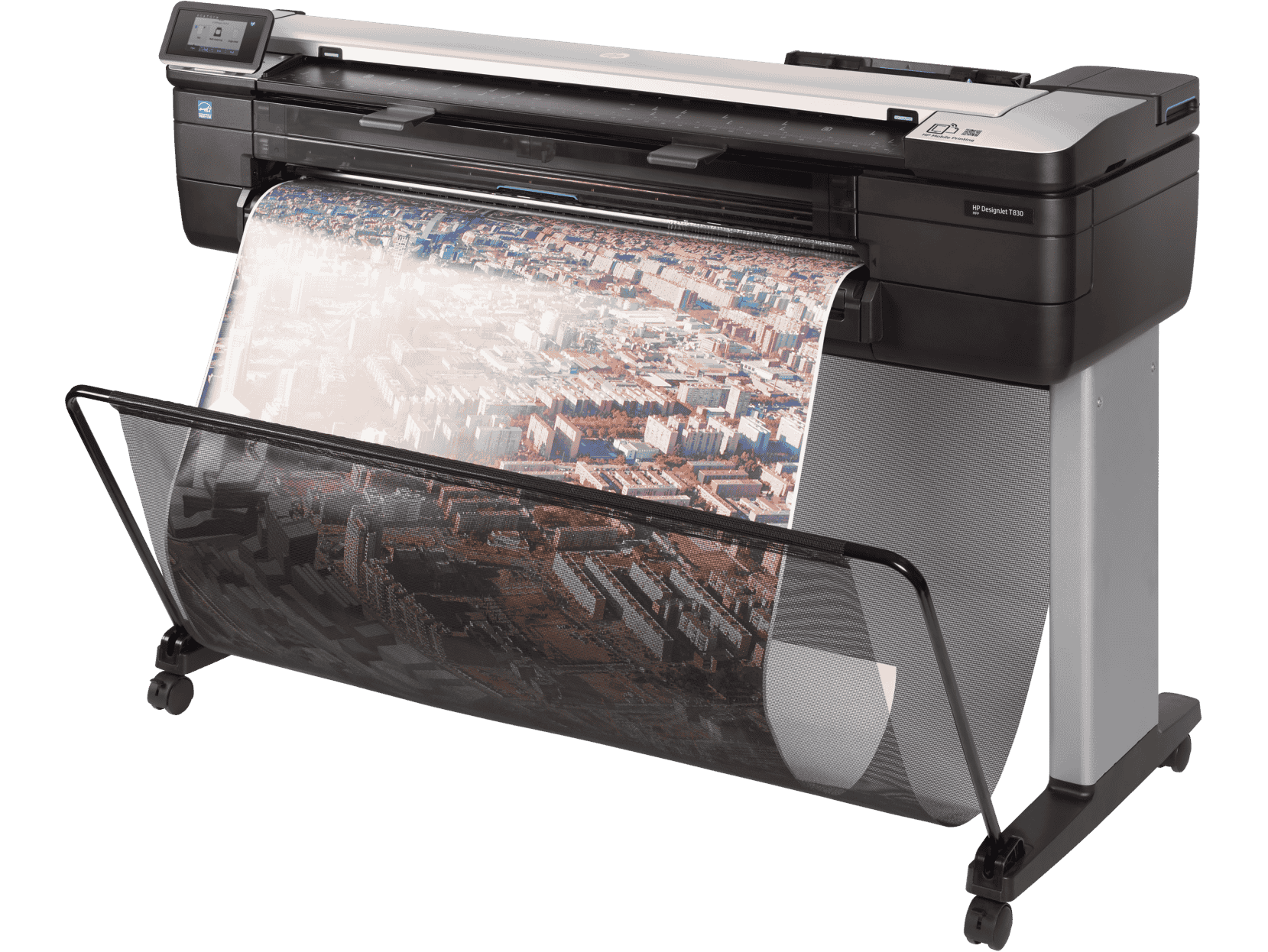

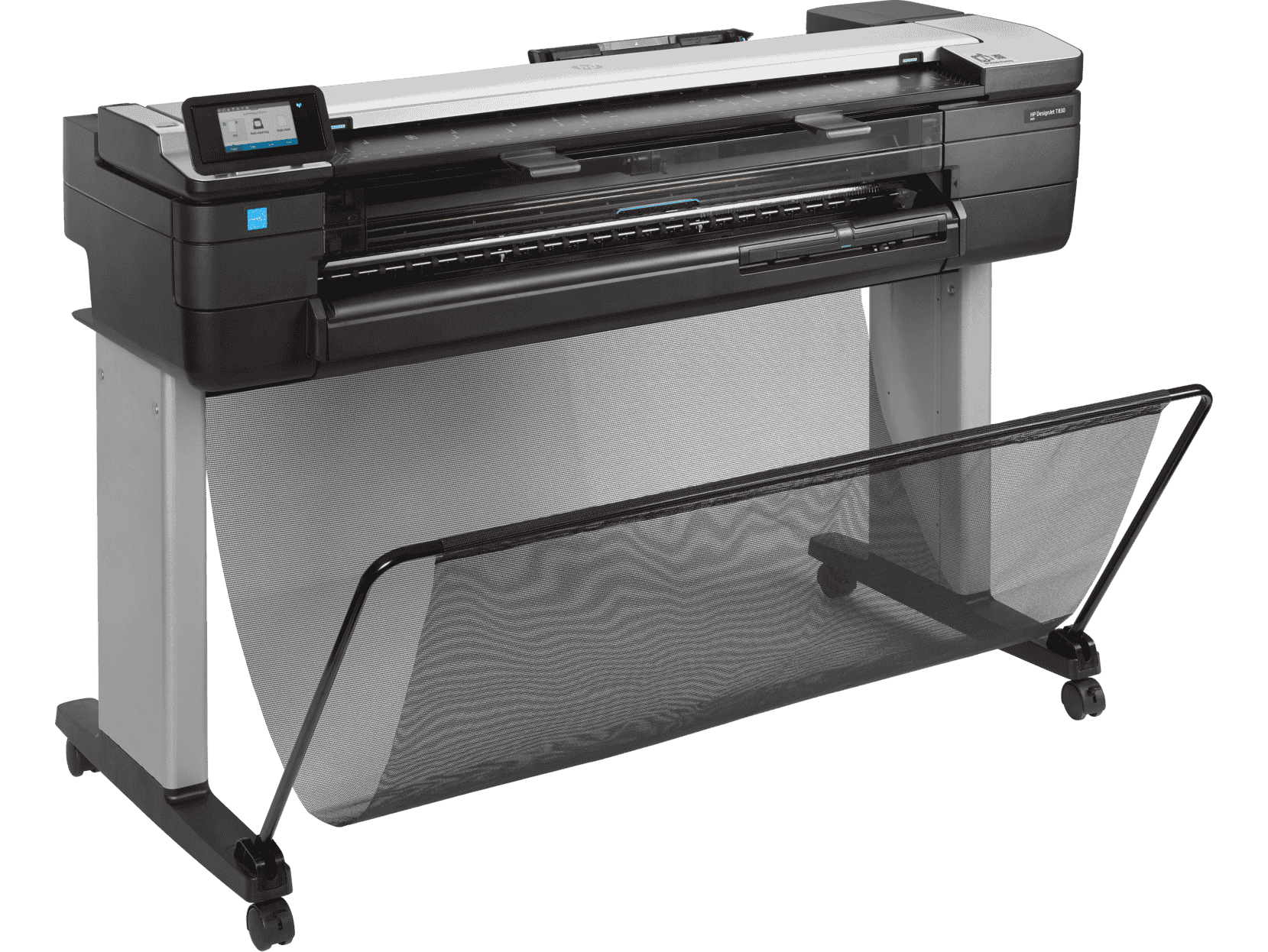

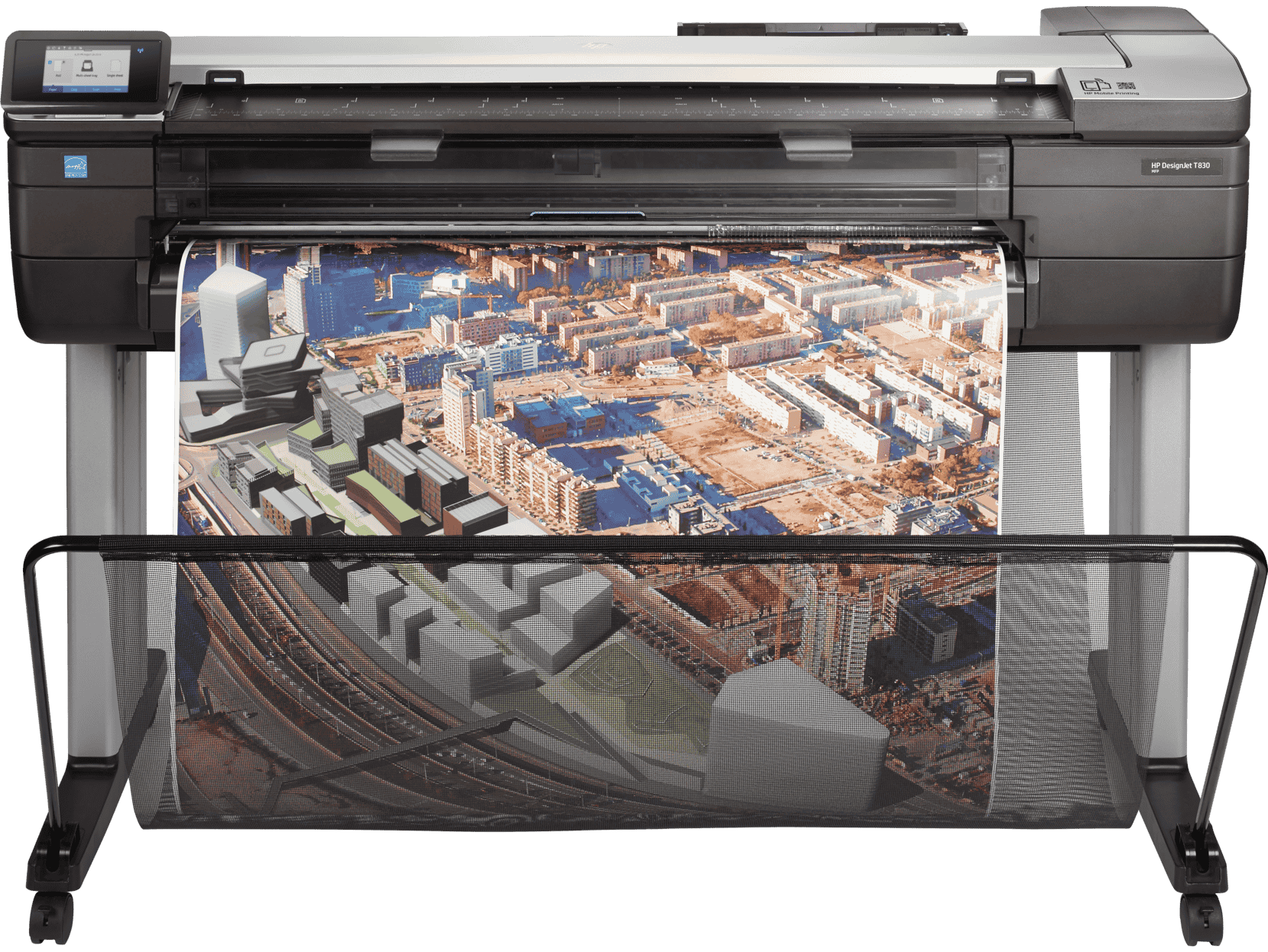

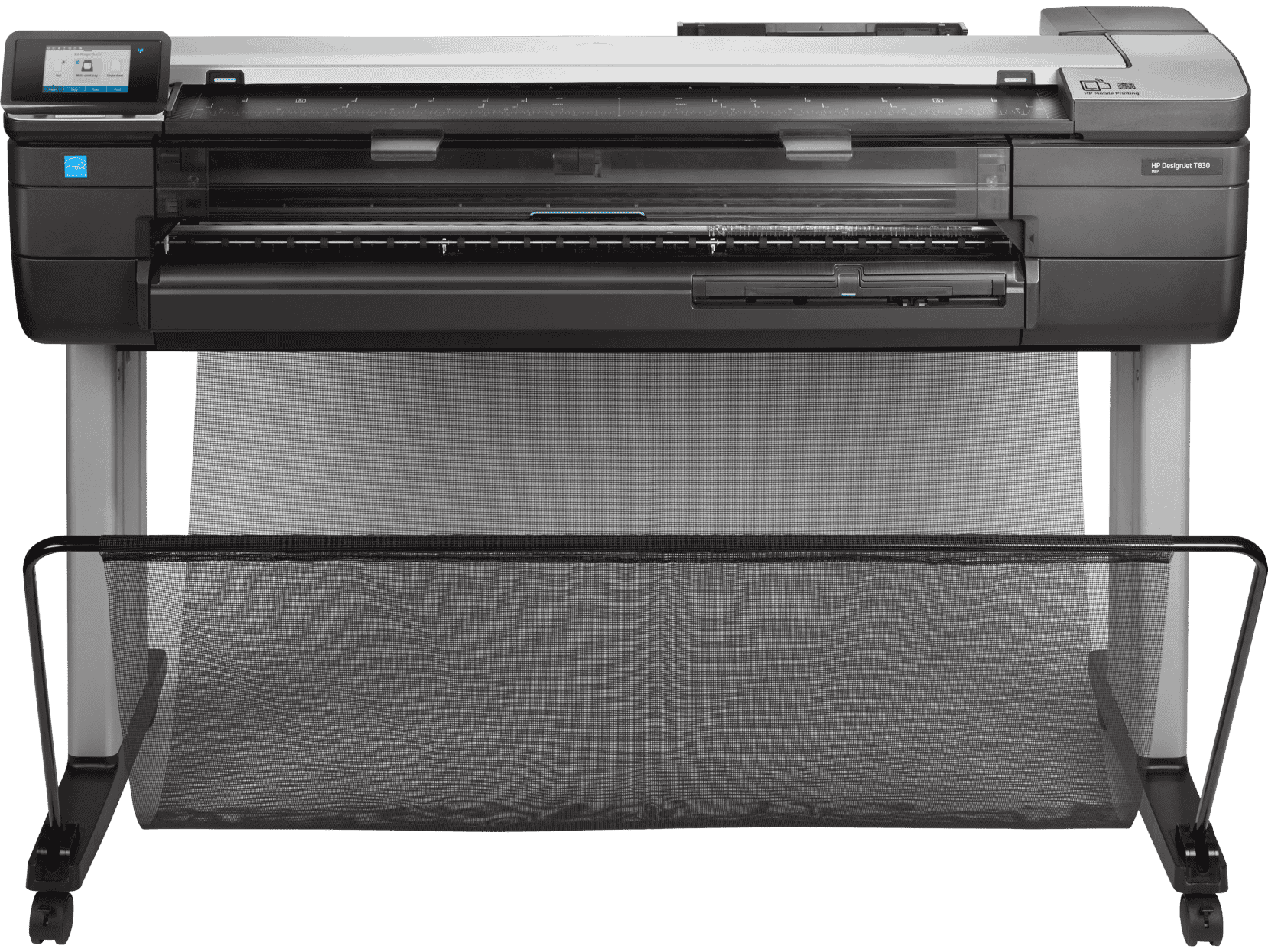

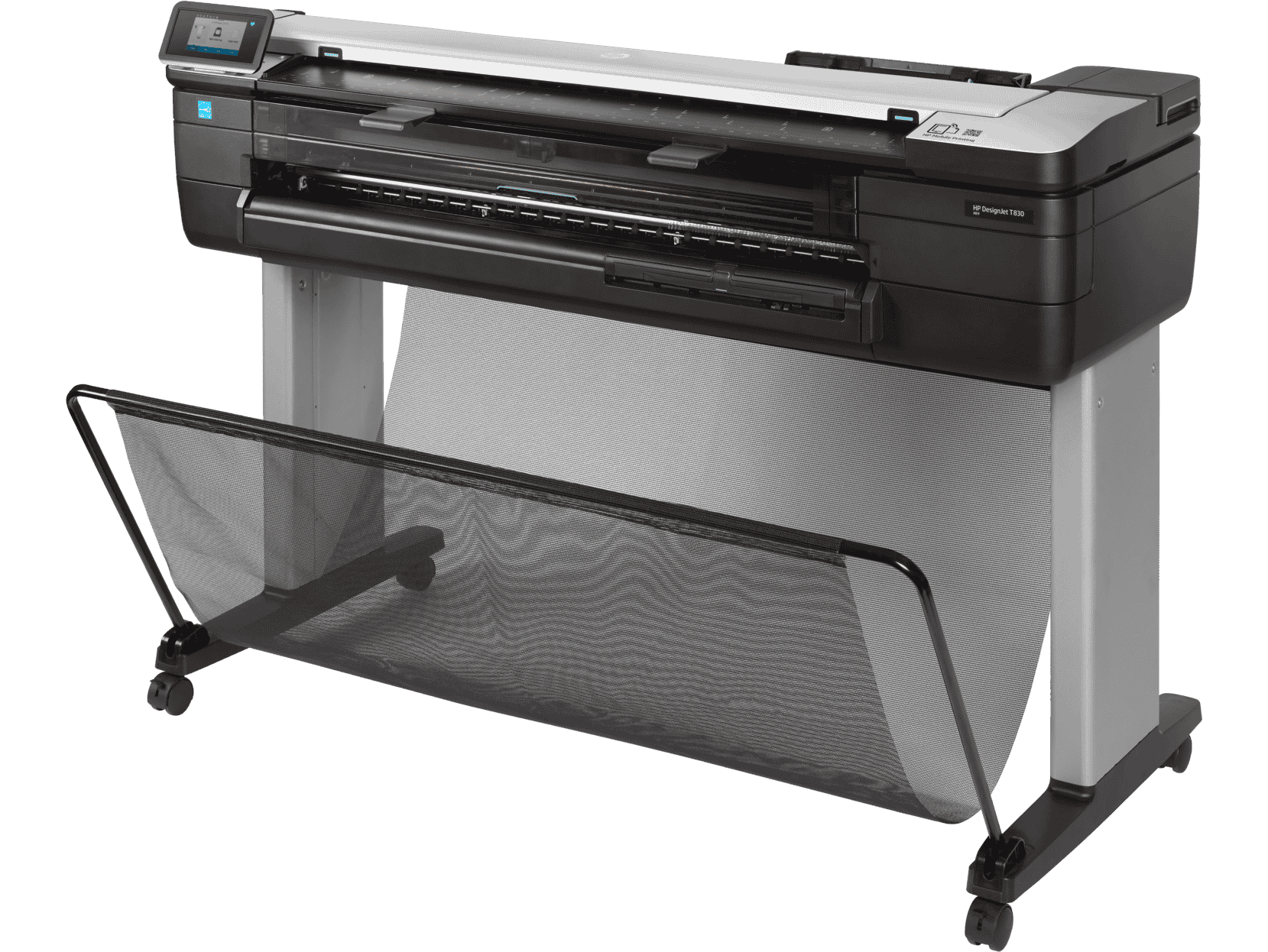

HP DesignJet T830 36-in MFP
  • speed 25 sec A1 82 A1's per hour
  • Scan/copy resolution 600 dpi
  • Memory 1 GB
  • Wifi,Mobile printing,usb port
  • Scan speed Color: up to 3.81 cm/sec
  • Grayscale: up to 11.43 cm/sec
  • Media Handling Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Ink types Dye-based (C, M, Y); pigment-based (mK)
  • Maximum scan Size: 914mm x 2.77m (36x109in) Thickness: 0.8 mm (0.03 in)
  • Copy Reduction/enlargement 50 to 400%Maximum copies Up to 99 copies Copier settings Content type, Lighter/Darker, Background noise removal,
  • Background color removal, Blue print invert, Translucent media, Color, Scan full width (36-in), Auto De-skew, Resize, Copy Margins, Quality Applications Line drawings, Renderings, PresentationsConnectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0
  • Printing paths Windows and Mac printer drivers, Apple AirPrint driver, print from USB pen drivecapability features Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing and scaning via HP ePrint, Apple AirPrint™ and HP All-in-One printer remote App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS Drivers (included) HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows
  • Dimensions (w x d x h) Printer 1403 x 629 x 1155 mm (55.2 x 24.8 x 45.5 in) Shipping 1578 x 575 x 646 mm (62.5 x 22.6 x 25.4 in)
  • Weight Printer 62.5 kg (137.8 lb) Shipping 85 kg (187.4 lb)
  • What’s in the box HP DesignJet T830 MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers Environmental ranges
  • Operating temperature: 5 to 40°C (41 to 104°F) Storage temperature: -25 to 55°C (-13 to 131°F) Operating humidity: 20 to 80% RH Acoustic Sound pressure: 48 dB(A) (printing); < 16 dB(A) (sleep) Sound power: 6.5 B(A) (printing); < 3.4 B(A) (sleep)
  • Power consumption 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby) Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max

  • speed 25 sec A1 82 A1’s per hour
  • Scan/copy resolution 600 dpi
  • Memory 1 GB
  • Wifi,Mobile printing,usb port
  • Scan speed Color: up to 3.81 cm/sec
  • Grayscale: up to 11.43 cm/sec
  • Media Handling Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Ink types Dye-based (C, M, Y); pigment-based (mK)
  • Maximum scan Size: 914mm x 2.77m (36x109in)
    Thickness: 0.8 mm (0.03 in)
  • Copy Reduction/enlargement 50 to 400%Maximum copies Up to 99 copies
    Copier settings Content type, Lighter/Darker, Background noise removal,
  • Background color removal, Blue print invert, Translucent media,
    Color, Scan full width (36-in), Auto De-skew, Resize, Copy Margins,
    Quality
    Applications Line drawings, Renderings, PresentationsConnectivity Interfaces
    (standard)
    Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0
  • Printing paths Windows and Mac printer drivers, Apple AirPrint driver, print from
    USB pen drivecapability
    features
    Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing
    and scaning via HP ePrint, Apple AirPrint™ and HP All-in-One printer
    remote App. Supports printing from most smartphones and tablets
    using these operating systems: Android, iOS
    Drivers (included) HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac
    OS X and Windows
  • Dimensions
    (w x d x h)
    Printer 1403 x 629 x 1155 mm (55.2 x 24.8 x 45.5 in)
    Shipping 1578 x 575 x 646 mm (62.5 x 22.6 x 25.4 in)
  • Weight Printer 62.5 kg (137.8 lb)
    Shipping 85 kg (187.4 lb)
  • What’s in the box HP DesignJet T830 MFP, printhead, ink cartridges, printer stand, spindle, quick reference
    guide, setup poster, startup software, power cord, refeed preventers
    Environmental
    ranges
  • Operating temperature: 5 to 40°C (41 to 104°F)
    Storage temperature: -25 to 55°C (-13 to 131°F)
    Operating humidity: 20 to 80% RH
    Acoustic Sound pressure: 48 dB(A) (printing); < 16 dB(A) (sleep)
    Sound power: 6.5 B(A) (printing); < 3.4 B(A) (sleep)
  • Power
    consumption
    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
    Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max
-
Quick View
HP DesignJet T2530 Multifunction
  • Speed 21 sec on A1, 120 A1s per hour
  • Memory 128 GB, 500 GB hdd
  • Scan/ copy resolution Up to 600 dpi
  • Scan speed Color: up to 6.35 cm/sec
  • Grayscale: up to 19.05 cm/sec (7.5 in/sec)
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
  • one Printheads (C, G, M, mK, pK, Y) Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in) Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
  • Technology HP Thermal
  • Media Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Scanner: straight-through
  • scan paper path for sheet and cardboard originals Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil)
  • Copy Reduction/ enlargement 25 to 400% Maximum copies Up to 99 copies Copier settings Copy quality, copy color, roll, content type, original paper type, background removal, contrast, de-skew, blueprints support
  • Connectivity9 Interfaces (standard) Gigabit Ethernet (1000 Base-T) Print languages (standard)
  • Basic Multifunction Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Multifunction Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X10
  • Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in
  • Weight Printer 112 kg (245 lb) Shipping 145 kg (320 lb)
  • What’s in the box HP DesignJet T2530 Multifunction Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord
  • Environmental ranges Operating temperature 5 to 40oC (41 to 104oF) Storage temperature -25 to 55oC (-13 to 131oF) Operating humidity 20 to 80% RH Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)) Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power consumption 120 watts (printing/scanning); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max

  • Speed 21 sec on A1, 120 A1s per hour
  • Memory 128 GB, 500 GB hdd
  • Scan/ copy resolution Up to 600 dpi
  • Scan speed Color: up to 6.35 cm/sec
  • Grayscale: up to 19.05 cm/sec (7.5 in/sec)
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
  • one Printheads (C, G, M, mK, pK, Y)
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
  • Technology HP Thermal
  • Media Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to 50
    A1/D-size capacity), media bin, automatic cutter Scanner: straight-through
  • scan paper path for sheet and cardboard originals
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
  • Copy Reduction/ enlargement 25 to 400%
    Maximum copies Up to 99 copies
    Copier settings Copy quality, copy color, roll, content type, original paper type, background
    removal, contrast, de-skew, blueprints support
  • Connectivity9 Interfaces (standard) Gigabit Ethernet (1000 Base-T)
    Print languages
    (standard)
  • Basic Multifunction Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Multifunction Printer: Adobe PostScript 3, Adobe PDF 1.7
    Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows,
    HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript
    drivers for Windows, Linux, and Mac OS X10
  • Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in
  • Weight Printer 112 kg (245 lb)
    Shipping 145 kg (320 lb)
  • What’s in
    the box

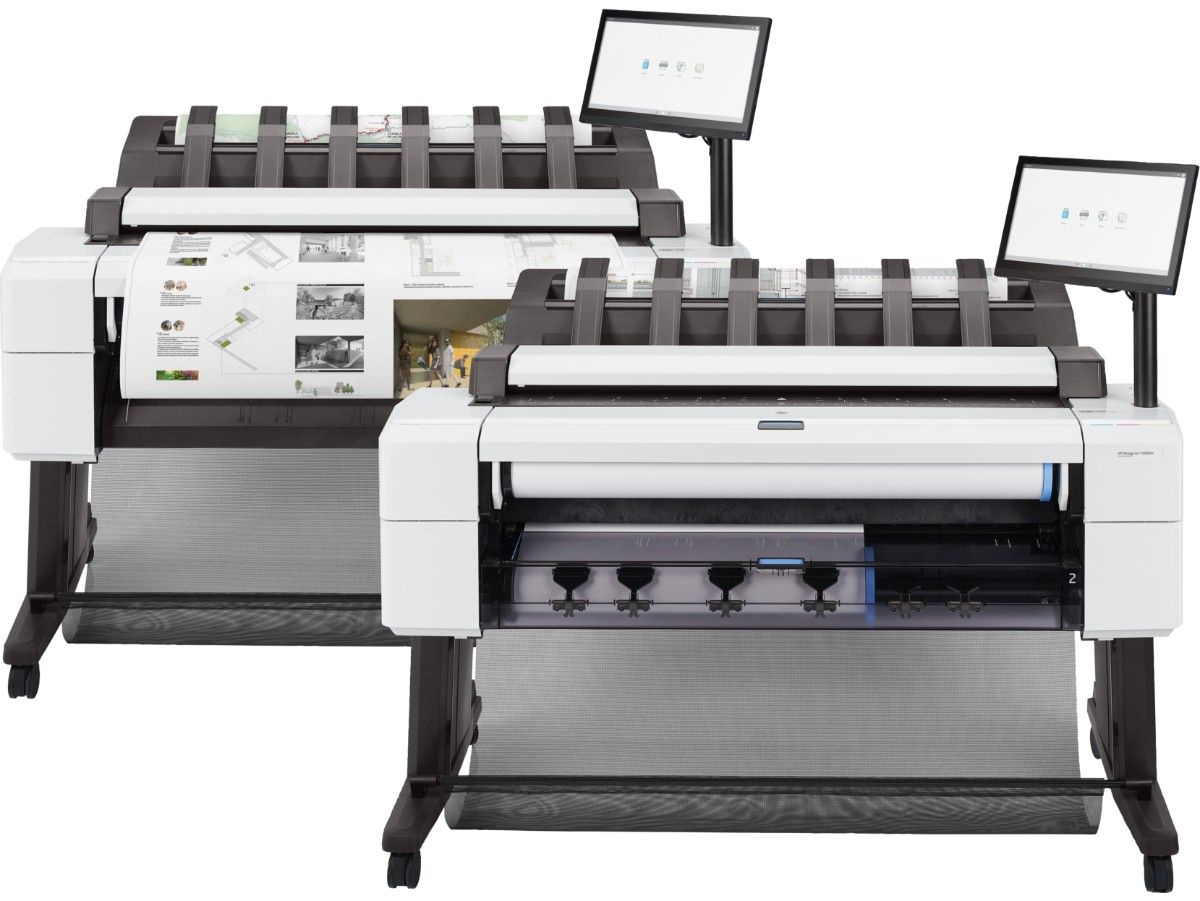

    HP DesignJet T2530 Multifunction Printer, printhead, introductory ink cartridges, stacking tray, printer
    stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord
  • Environmental
    ranges
    Operating temperature 5 to 40oC (41 to 104oF)
    Storage temperature -25 to 55oC (-13 to 131oF)
    Operating humidity 20 to 80% RH
    Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))
    Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power
    consumption
    120 watts (printing/scanning); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
-
Quick View
Super diazo 4
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)
-
Quick View
Dart xl300
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")
The Dart XL 300 blueprint machine is designed for moderate to heavy production of all ammonia-developing products. The Dart XL 300 is a three lamp machine offering printing speeds up to 640 m/hr (35 fpm) and a print width of 1200 mm (48 in.) The developer features a ceramic coated roller for maximum developer life . The Dart XL 300 model can be purchased as a tabletop model or with a mobile stand featuring a sling-type print catcher allowing convenient front access that requires no adjustment for roll stock or different size cut sheets. A 50 meter (50yard) roll storage compartment is also available with a built in paper cutter. AMMONIA ARRESTORS AND ACCESSORIES All Daft XL models can be equipped with the DiAZiT exclusive Ammonia Arrestor System that reduces ammonia odors up to 90%, depending upon conditions. The Dart XL 300 Ammonia Arrestor System is included as standard equipment. There is a variety of optional accessories for the Dart XL series including mobile stands with print catchers, roll storage cabinets with built-in paper cutters (as pictured on opposite page), feed boards, table mounts (pictured right) and even a special wall mount option for the Dart XL 80 model

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)

The Dart XL 300 blueprint machine is
designed for moderate to heavy production
of all ammonia-developing products. The
Dart XL 300 is a three lamp machine
offering printing speeds up to 640 m/hr (35
fpm) and a print width of 1200 mm (48 in.)
The developer features a ceramic coated
roller for maximum developer life .

The Dart XL 300 model can be purchased
as a tabletop model or with a mobile stand
featuring a sling-type print catcher allowing
convenient front access that requires no
adjustment for roll stock or different size cut
sheets. A 50 meter (50yard) roll storage
compartment is also available with a built in
paper cutter.

AMMONIA ARRESTORS
AND ACCESSORIES
All Daft XL models can be equipped with
the DiAZiT exclusive Ammonia Arrestor
System that reduces ammonia odors up to
90%, depending upon conditions. The Dart
XL 300 Ammonia Arrestor System is
included as standard equipment. There is a
variety of optional accessories for the Dart
XL series including mobile stands with print
catchers, roll storage cabinets with built-in
paper cutters (as pictured on opposite
page), feed boards, table mounts (pictured
right) and even a special wall mount option
for the Dart XL 80 model

-
Quick View
Diazit xl80 Printer
  • Print Speed 21ft/min (384 m/hr)
  • Print Width 32" (812 mm ISO A1)
  • Electrical 1-100 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 55 lbs. (25 kg)
  • Dimensions 108Wx14Hx46D cm (42.5"x5.5"x18")
DiAZiT's Dart XL80 blueprint machine offers contemporary low profile styling and performance at an economical price. The many operator-friendly features that are incorporated into the design of this machine make it easy to use and control. All operating controls are recessed and conveniently located in the center of the unit for easy access by either hand.
  • Instant, No Warm-Up Operation: As with all DiAZiT blueprint machines, the Dart XL80 is ready to go at the flip of a switch with no warm-up and no wait.
  • Solid State Speed Control: A solid state, single dial speed control ensures accurate and repeatable operation from a highly reliable component.
  • Forward/Reverse Switch: Convenience & Safety first for those valuable originals with a flip of a switch.
  • Corrosion-Resistant Developer: All DiAZiT models are equipped with a corrosionresistant developer system for long lasting, trouble-free operation.
  • Precision Glass Cylinders: As with all DiAZiT machines, the Dart XL80 is equipped with high quality, precision glass cylinders that ensure proper contact between the original and print for crisp clear copies every time.

  • Print Speed 21ft/min (384 m/hr)
  • Print Width 32″ (812 mm ISO A1)
  • Electrical 1-100 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 55 lbs. (25 kg)
  • Dimensions 108Wx14Hx46D cm
    (42.5″x5.5″x18″)

DiAZiT’s Dart XL80 blueprint machine offers contemporary low profile styling and performance
at an economical price. The many operator-friendly features that are incorporated into the
design of this machine make it easy to use and control. All operating controls are recessed
and conveniently located in the center of the unit for easy access by either hand.

  • Instant, No Warm-Up Operation: As with all DiAZiT blueprint machines, the Dart
    XL80 is ready to go at the flip of a switch with no warm-up and no wait.
  • Solid State Speed Control: A solid state, single dial speed control ensures accurate
    and repeatable operation from a highly reliable component.
  • Forward/Reverse Switch: Convenience & Safety first for those valuable originals
    with a flip of a switch.
  • Corrosion-Resistant Developer: All DiAZiT models are equipped with a corrosionresistant
    developer system for long lasting, trouble-free operation.
  • Precision Glass Cylinders: As with all DiAZiT machines, the Dart XL80 is equipped
    with high quality, precision glass cylinders that ensure proper contact between the
    original and print for crisp clear copies every time.
-
Quick View
TECHNODIAZO 2 3
  • Variable speed up to 300 m/h 400 m/h
  • Print Width 125 cm ( ISO A0)
  • Electrical 3 lamps 140 W (3 tubes)
  • Forward/Reverse Switch
  • Consumption 650 W 850 W
  • Weight without stand 56 Kg 59 Kg Stand weight 14 Kg 14 Kg
  • Dimensions 22 x 172 x 48 cm 22 x 172 x 48 cm
born from a twenty years experience in the diazo machines production, the TECHNODIAdistinguishes itself for its new technological solutions. A high level rationalization assures high reliability and easy maintenance. The modern and essential design is in keeping with all furniture solution of the office. A great care has been used to make the TECHNODIAZO of ergonomic use. The residual ammonia vapours of the closed circuit and of the copy 95% neutralized by the "NEOFILTER" system, allowing the installation of the TECHNODIAZO in any offices with no problem. As a further possibility, the residual vapours instead of going through a filter, can be conveyed outside through an exhaust pipe. Technical Specifications TECHNODIAZO 2 3 Working width 125 cm Variable speed up to 300 m/h 400 m/h Light source 2 lamps 140 W with rotating crystal with rotating crystal Available power supply 220 V - 50 Hz 240 V - 50 Hz 110 V - 60 HZ 220 V - 50 Hz 240 V - 50 Hz 110 V - 60 HZ Consumption 650 W 850 W Drawer capacity 50 m roll 1 1 Working surface height on stand 95 cm 95 cm Dimensions without stand: height - width - depth Packing dimensions height - width - depth 34 x 186 x 59 cm 34 x 186 x 59 cm

  • Variable speed up to 300 m/h 400 m/h
  • Print Width 125 cm ( ISO A0)
  • Electrical 3 lamps 140 W (3 tubes)
  • Forward/Reverse Switch
  • Consumption 650 W 850 W
  • Weight without stand 56 Kg 59 Kg
    Stand weight 14 Kg 14 Kg
  • Dimensions 22 x 172 x 48 cm 22 x 172 x 48 cm

born from a twenty years experience in the diazo machines production, the TECHNODIAdistinguishes itself for its new technological solutions.
A high level rationalization assures high reliability and easy maintenance. The modern and essential
design is in keeping with all furniture solution of the office.
A great care has been used to make the TECHNODIAZO of ergonomic use.
The residual ammonia vapours of the closed circuit and of the copy 95% neutralized by the
“NEOFILTER” system, allowing the installation of the TECHNODIAZO in any offices with no problem.
As a further possibility, the residual vapours instead of going through a filter, can be conveyed
outside through an exhaust pipe.
Technical Specifications
TECHNODIAZO 2 3
Working width 125 cm
Variable speed up to 300 m/h 400 m/h
Light source 2 lamps 140 W
with rotating crystal
with rotating crystal
Available power supply 220 V – 50 Hz
240 V – 50 Hz
110 V – 60 HZ
220 V – 50 Hz
240 V – 50 Hz
110 V – 60 HZ
Consumption 650 W 850 W
Drawer capacity 50 m roll 1 1
Working surface height on stand 95 cm 95 cm
Dimensions without stand:
height – width – depth
Packing dimensions
height – width – depth
34 x 186 x 59 cm 34 x 186 x 59 cm



-
Quick View

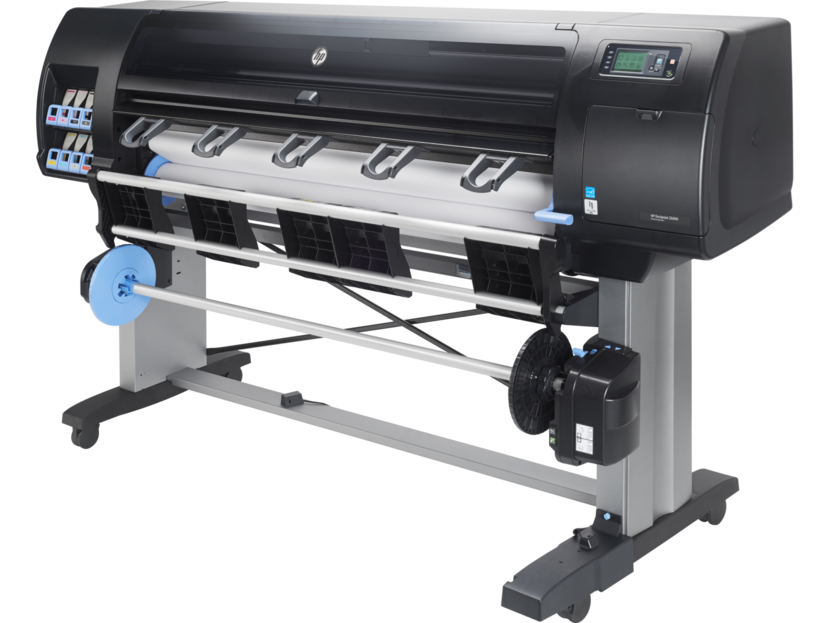

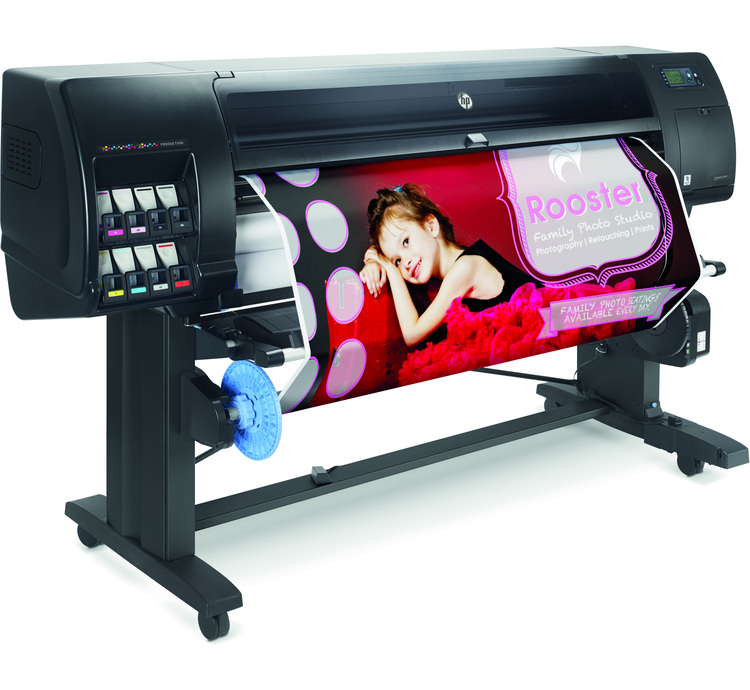

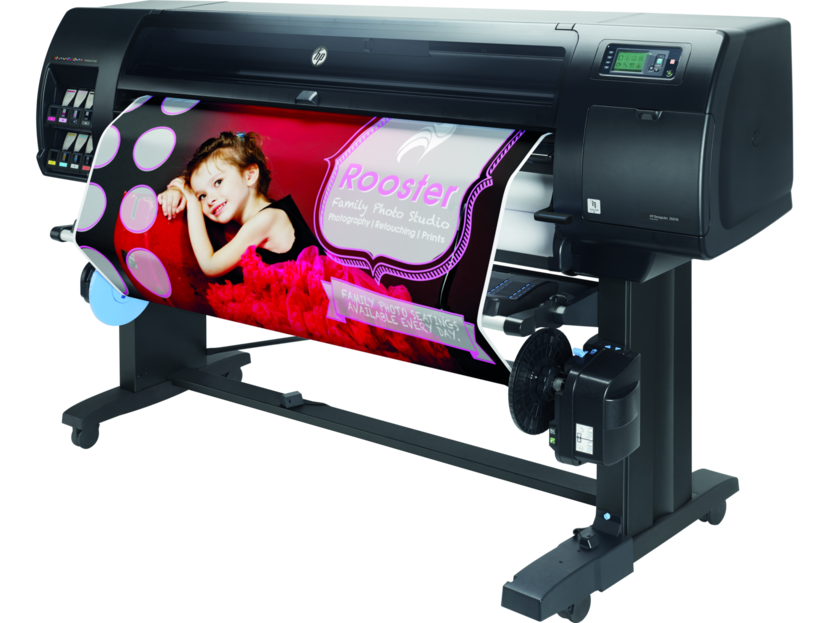

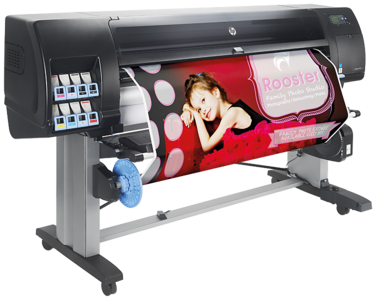

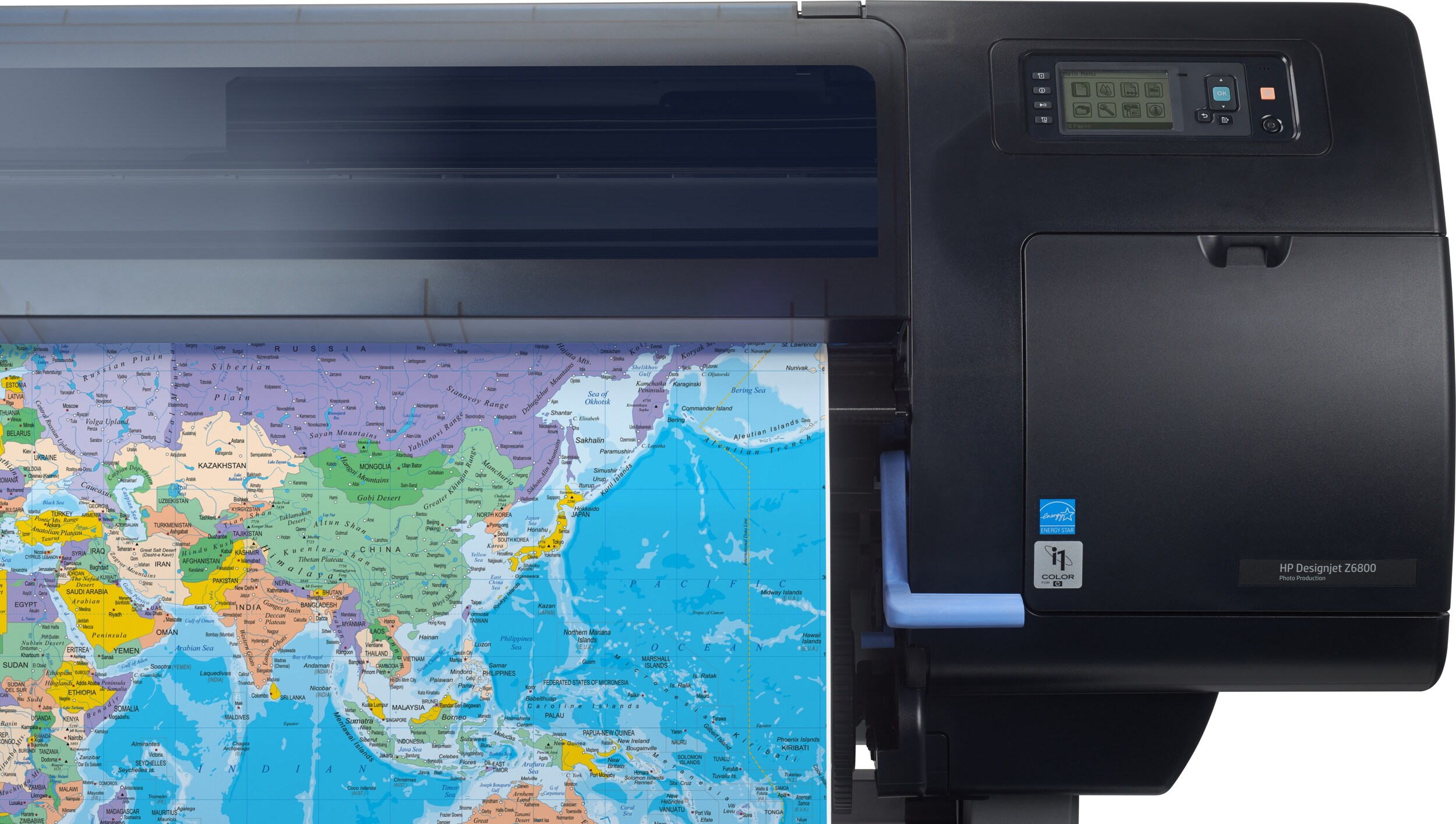

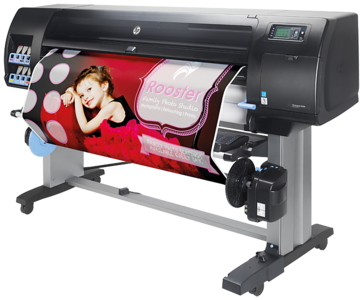

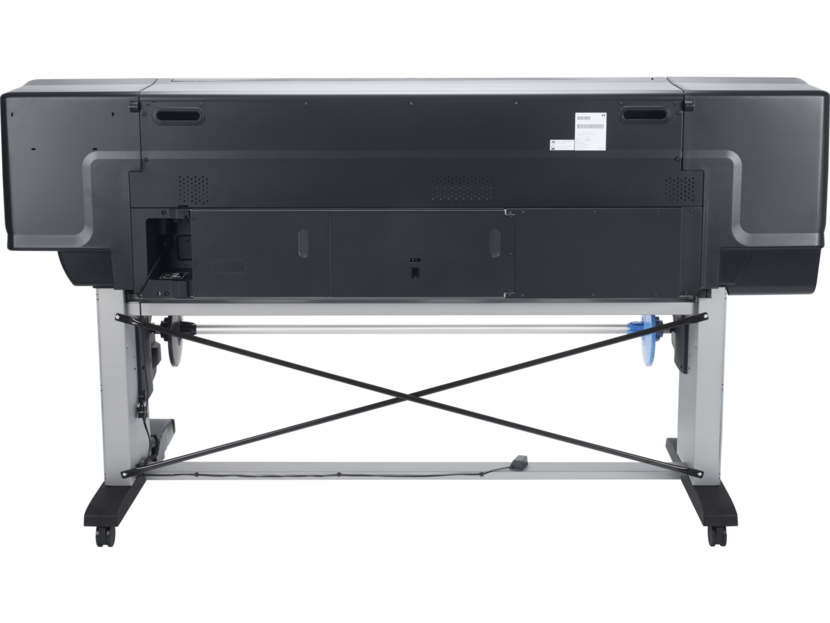

HP Designjet Z6800
  • Memory 64 GB , 320 GB hdd
  • Speed 19.7 m²/hr
  • Ink types Pigment-based
  • width 60inch
  • 8 cartridges 775ml
  • Color images7 Best: 3.2 min/page on A1/D or up to 13.1 m²/hr (141 ft²/hr) on glossy media Normal: 2.1 min/page on A1/D or up to 19.7 m²/hr (212 ft²/hr) on glossy media
Print resolution Up to 2400 x 1200 optimized dpi Margins 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in) Technology HP Thermal Inkjet Ink cartridges Chromatic red, magenta, yellow, light cyan, light gray, light magenta, matte black, photo black Line accuracy +/- 0.1%8 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.067 mm (0.0026 in) (ISO/IEC 13660:2001(E))9 Image quality Color accuracy Median < 1.19 dE2000, 95% of colors < 2.77 dE200010 Short term color stability < 1 dE2000 in less than 5 minutes11 Long term print-toprint repeatability Average < 0.5 dE2000, max < 1 dE200011 Maximum optical density 4.5 L* min/2.31 D12 Media Handling Roll feed, automatic cutter, take-up reel Media types Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material Size 279 to 1524-mm (11 to 60-in) rolls Thickness Up to 0.56 mm (22 mil) Applications Posters, Banners, Mockups, Photos, Digital fine art, Proofs, Displays, POP/POS, Light boxes – film, Exhibition, Event graphics Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot Print languages (standard) HP-GL/2, HP-RTL, CALS G4 Print languages (optional) Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG Printing paths Printer driver, HP Embedded Web Server Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit Dimensions (w x d x h) Printer 2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in) Shipping 2700 x 750 x 1200 mm (106.3 x 29.5 x 47.2 in) Weight Printer 190 kg (419 lb) Shipping 252 kg (555.6 lb)   What’s in the box HP Designjet Z6800 Photo Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, take-up reel, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord Environmental ranges Operating temp. -20 to 55?C (-4 to 131?F) Storage temp. -20 to 55?C (-4 to 131?F) Operating humidity 20 to 80% RH Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep) Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep) Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off) Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz) Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP) Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze Warranty One-year limited hardware warranty

  • Memory 64 GB , 320 GB hdd
  • Speed 19.7 m²/hr
  • Ink types Pigment-based
  • width 60inch
  • 8 cartridges 775ml
  • Color images7 Best: 3.2 min/page on A1/D or up to 13.1 m²/hr
    (141 ft²/hr) on glossy media
    Normal: 2.1 min/page on A1/D or up to 19.7 m²/hr
    (212 ft²/hr) on glossy media

Print resolution Up to 2400 x 1200 optimized dpi

Margins 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)

Technology HP Thermal Inkjet
Ink cartridges Chromatic red, magenta, yellow, light cyan, light gray, light
magenta, matte black, photo black
Line accuracy +/- 0.1%8
Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed
minimum line width
0.067 mm (0.0026 in) (ISO/IEC 13660:2001(E))9
Image quality Color accuracy Median < 1.19 dE2000, 95% of colors < 2.77 dE200010
Short term color
stability
< 1 dE2000 in less than 5 minutes11
Long term print-toprint
repeatability
Average < 0.5 dE2000, max < 1 dE200011
Maximum optical
density
4.5 L* min/2.31 D12
Media Handling Roll feed, automatic cutter, take-up reel
Media types Bond and coated paper, technical paper, film, photographic
paper, proofing paper, backlit, self-adhesive, banner and
sign, fabric, fine art printing material
Size 279 to 1524-mm (11 to 60-in) rolls
Thickness Up to 0.56 mm (22 mil)
Applications Posters, Banners, Mockups, Photos, Digital fine art, Proofs, Displays, POP/POS,
Light boxes – film, Exhibition, Event graphics
Connectivity Interfaces (standard)
Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
Print languages
(standard)
HP-GL/2, HP-RTL, CALS G4

Print languages
(optional)
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Printing paths Printer driver, HP Embedded Web Server
Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows
and Mac drivers with optional PostScript/PDF Upgrade Kit

Dimensions (w x d x h)
Printer 2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in)
Shipping 2700 x 750 x 1200 mm (106.3 x 29.5 x 47.2 in)
Weight Printer 190 kg (419 lb)
Shipping 252 kg (555.6 lb)



What’s in the box
HP Designjet Z6800 Photo Production Printer, spindle, printheads, introductory
ink cartridges, maintenance cartridge, printer stand, take-up reel, 3-in spindle
adapter kit, quick reference guide, setup poster, startup software, power cord

Environmental ranges
Operating temp. -20 to 55?C (-4 to 131?F)
Storage temp. -20 to 55?C (-4 to 131?F)
Operating humidity 20 to 80% RH
Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)
Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)

Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep);
< 0.3 watts (off)
Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A;
220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)

Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1
compliant), Russia (GOST), Singapore (PSB), China (CCC),
Argentina (IRAM), Mexico (NYCE), Korea (KC)
Electromagnetic Compliant with Class A requirements, including: USA (FCC
rules), Canada (ICES), EU (EMC Directive), Australia (ACMA),
New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH,
EPEAT Bronze

Warranty One-year limited hardware warranty

-
Quick View
HP Designjet Z5600
  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm) (borderless on photo roll media); Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet Ink types Pigment-based Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red) Line accuracy +/- 0.1%7 Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable) Guaranteed minimum line width 0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8 Image quality Short-term color stability < 1 dE2000 in less than 5 minutes9 Long-term print-toprint repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed; media output bin; automatic cutter10 Types Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit Size Rolls: 11 to 44 in (279 to 1118 mm) Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm) Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0) Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and event graphics, Light boxes - film
  • Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot
  • Print languages (standard) Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12 Printing paths Printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing, HP DesignJet Click printing software Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h) Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm) Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm) Weight Printer 190.7 lb (86.5 kg) Shipping 263.5 lb (119.5 kg)
  • What’s in the box DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Software included Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center, HP DesignJet Excel Accounting Tool
  • Environmental ranges Operating temp. 41 to 104°F (5 to 40°C) Storage temp. -13 to 131°F (-25 to 55°C) Operating humidity 20 to 80% RH (non-condensing) Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep) Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts with embedded Digital Front End) (sleep); 0.1 watts (off) Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT Bronze
  • Warranty One-year limited hardware warranty

  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi
    Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
    (borderless on photo roll media);
    Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet
    Ink types Pigment-based
    Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and
    chromatic red)
    Line accuracy +/- 0.1%7
    Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8
    Image quality Short-term color
    stability
    < 1 dE2000 in less than 5 minutes9
    Long-term print-toprint
    repeatability
    Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed;
    media output bin; automatic cutter10
    Types Photographic, fine art printing material, self-adhesive, banner
    and sign, bond and coated, backlit
    Size Rolls: 11 to 44 in (279 to 1118 mm)
    Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
    Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0)
    Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics
    design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and
    event graphics, Light boxes – film
  • Connectivity Interfaces
    (standard)
    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO
    Jetdirect accessory slot
  • Print languages
    (standard)
    Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4,
    HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12
    Printing paths Printer driver, HP Embedded Web Server, direct printing from
    USB flash drive, email printing, HP DesignJet Click printing
    software
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X;
    PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h)
    Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm)
    Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm)
    Weight Printer 190.7 lb (86.5 kg)
    Shipping 263.5 lb (119.5 kg)
  • What’s in the box
    DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges,
    printer stand and media bin, spindles, quick reference guide, setup poster, start-up
    software, power cord
    Software
    included
    Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center,
    HP DesignJet Excel Accounting Tool
  • Environmental ranges
    Operating temp. 41 to 104°F (5 to 40°C)
    Storage temp. -13 to 131°F (-25 to 55°C)
    Operating humidity 20 to 80% RH (non-condensing)
    Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep)
    Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts
    with embedded Digital Front End) (sleep); 0.1 watts (off)
    Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz
    (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1
    compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB);
    China (CCC); Argentina (IRAM); India (BIS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC
    rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New
    Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT
    Bronze
  • Warranty One-year limited hardware warranty
-
Quick View
HP Designjet Z2600PS
  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red)

  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black
    photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black
    and chromatic red)
-
Quick View
Power Supply
  • 480W Dual Fan 20+4-pin ATX Power Supply PS480D2, 1 x 12V(P4), 4 x Peripheral, 2 x SATA 1 x Floppy
  • Supports Intel P4 and AMD Motherboards
  • Low Noise and Ripple
  • Short Circuit Protection
  • Over-Voltage Protection

  • 480W Dual Fan 20+4-pin ATX Power Supply PS480D2, 1 x 12V(P4), 4 x Peripheral, 2 x SATA 1 x Floppy
  • Supports Intel P4 and AMD Motherboards
  • Low Noise and Ripple
  • Short Circuit Protection
  • Over-Voltage Protection
-
Quick View
HP Designjet T3500mfp
  • Speed  21 sec A1, 120 A1 /hr
  • Memory 128gb,500gb hdd
  • Warranty 2 years
  • Scan speed up to 19.05 cm/sec
  • HP 764 300-ml  Ink Cartridge
  • B3P06A HP 727 Designjet PrintheadPrint resolution Up to 2400 x 1200 optimised dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (borderless on photo papers) Sheet: 3 x 22 x 3 x 3 mm Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Print heads 1 (cyan, grey, magenta, matte black, photo black, yellow) Line accuracy +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater) at 23°C, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal mode with Original HP inks Minimum line width 0.02 mm (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E)) Media Handling Input: two automatic front-loading roll feeds, smart roll switching, rolls up to 200 m long each and 180 mm of diameter, sheet feed; Output: integrated output stacker (from A4 to A0, with up to 100 A1-size capacity), media bin, automatic cutter; Scanner: straight-through scan paper path for sheet and cardboard originals Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) Size 210 to 914 mm wide sheets; 279 to 914 mm rolls A4; A3; A2; A1; A0 Weight 60 to 328 g/m² Thickness Up to 19.7 mil (0.5 mm) Scan Scan speed Up to 6.35 cm/sec (colour, 200 dpi); up to 19.05 cm/sec (greyscale, 200 dpi) Resolution 600 x 600 dpi Maximum scan size 914 x 8000 mm (JPEG); 914 x 5000 mm (PDF); 610 x 15000 mm (TIFF) Maximum scan thickness 0.8 mm Copy Reduction/enlargement 25 to 400% Maximum copies Up to 99 copies Copier settings Copy quality; copy colour; roll; paper output; content type; original paper type; background removal; contrast; de-skew; blueprints support; copy margin layout; full width; job queue storage mode Memory Standard Intel Core i5M-260 processor, 128GB (virtual). Based on 2.5 GB RAM Hard disk Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified) Connectivity Interfaces (standard) High-Speed USB 2.0 certified host connector; Gigabit Ethernet (1000Base-T) Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI Printing paths HP Designjet SmartStream (optional), printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing Print languages (optional) Adobe PostScript 3; Adobe PDF 1.7 Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit; Compatible with HP Designjet Universal Print Driver for HP-GL/2 and HP Designjet Universal
  • What's in the box B9E24A HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick reference guide; setup poster; startup software; power cord B9E24B HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick reference guide; setup poster; startup software; power cord
  • Dimensions (w x d x h) Printer 1400 x 784 x 1109 mm Packaged 1502 x 780.5 x 804 mm
  • Weight Printer 114 kg Packaged 141 kg
  • Power Power consumption < 120 watts (printing); < 2 watts / < 7 watts with embedded Digital Front End (sleep); 0 watts (off); 12 Wh per A0 (per print) Power requirements Input voltage

  • Speed  21 sec A1, 120 A1 /hr
  • Memory 128gb,500gb hdd
  • Warranty 2 years
  • Scan speed up to 19.05 cm/sec
  • HP 764 300-ml  Ink Cartridge
  • B3P06A HP 727 Designjet PrintheadPrint resolution Up to 2400 x 1200 optimised dpi
    Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (borderless on photo papers)
    Sheet: 3 x 22 x 3 x 3 mm
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Print heads 1 (cyan, grey, magenta, matte black, photo black, yellow)
    Line accuracy +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater)
    at 23°C, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal
    mode with Original HP inks
    Minimum line width 0.02 mm (HP-GL/2 addressable)
    Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E))
    Media
    Handling Input: two automatic front-loading roll feeds, smart roll switching, rolls up
    to 200 m long each and 180 mm of diameter, sheet feed; Output:
    integrated output stacker (from A4 to A0, with up to 100 A1-size capacity),
    media bin, automatic cutter; Scanner: straight-through scan paper path
    for sheet and cardboard originals
    Types Bond and coated paper (bond, coated, heavyweight coated, super
    heavyweight plus matte, coloured), technical paper (natural tracing,
    translucent bond, vellum), film (clear, matte, polyester), photographic
    paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive
    (two-view cling, indoor paper, polypropylene, vinyl)
    Size 210 to 914 mm wide sheets; 279 to 914 mm rolls
    A4; A3; A2; A1; A0
    Weight 60 to 328 g/m²
    Thickness Up to 19.7 mil (0.5 mm)
    Scan
    Scan speed Up to 6.35 cm/sec (colour, 200 dpi); up to 19.05 cm/sec (greyscale, 200
    dpi)
    Resolution 600 x 600 dpi
    Maximum scan size 914 x 8000 mm (JPEG); 914 x 5000 mm (PDF); 610 x 15000 mm (TIFF)
    Maximum scan thickness 0.8 mm
    Copy
    Reduction/enlargement 25 to 400%
    Maximum copies Up to 99 copies
    Copier settings Copy quality; copy colour; roll; paper output; content type; original paper
    type; background removal; contrast; de-skew; blueprints support; copy
    margin layout; full width; job queue storage mode
    Memory
    Standard Intel Core i5M-260 processor, 128GB (virtual). Based on 2.5 GB RAM
    Hard disk Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified)
    Connectivity
    Interfaces (standard) High-Speed USB 2.0 certified host connector; Gigabit Ethernet
    (1000Base-T)
    Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI
    Printing paths HP Designjet SmartStream (optional), printer driver, HP Embedded Web
    Server, direct printing from USB flash drive, email printing
    Print languages (optional) Adobe PostScript 3; Adobe PDF 1.7
    Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X;
    PostScript Windows and Mac drivers with optional PostScript/PDF
    Upgrade Kit; Compatible with HP Designjet Universal Print Driver for
    HP-GL/2 and HP Designjet Universal
  • What’s in the box
    B9E24A HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking
    tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick
    reference guide; setup poster; startup software; power cord
    B9E24B HP Designjet T3500 eMFP; printhead; introductory ink cartridges; stacking
    tray; printer stand and media bin; spindles; 3-in spindle adapter kit; quick
    reference guide; setup poster; startup software; power cord
  • Dimensions (w x d x h)
    Printer 1400 x 784 x 1109 mm
    Packaged 1502 x 780.5 x 804 mm
  • Weight
    Printer 114 kg
    Packaged 141 kg
  • Power
    Power consumption < 120 watts (printing); < 2 watts / < 7 watts with embedded Digital Front
    End (sleep); 0 watts (off); 12 Wh per A0 (per print)
    Power requirements Input voltage
-
Quick View
Super diazo 4
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)
-
Quick View
Dart xl300
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")
The Dart XL 300 blueprint machine is designed for moderate to heavy production of all ammonia-developing products. The Dart XL 300 is a three lamp machine offering printing speeds up to 640 m/hr (35 fpm) and a print width of 1200 mm (48 in.) The developer features a ceramic coated roller for maximum developer life . The Dart XL 300 model can be purchased as a tabletop model or with a mobile stand featuring a sling-type print catcher allowing convenient front access that requires no adjustment for roll stock or different size cut sheets. A 50 meter (50yard) roll storage compartment is also available with a built in paper cutter. AMMONIA ARRESTORS AND ACCESSORIES All Daft XL models can be equipped with the DiAZiT exclusive Ammonia Arrestor System that reduces ammonia odors up to 90%, depending upon conditions. The Dart XL 300 Ammonia Arrestor System is included as standard equipment. There is a variety of optional accessories for the Dart XL series including mobile stands with print catchers, roll storage cabinets with built-in paper cutters (as pictured on opposite page), feed boards, table mounts (pictured right) and even a special wall mount option for the Dart XL 80 model

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)

The Dart XL 300 blueprint machine is
designed for moderate to heavy production
of all ammonia-developing products. The
Dart XL 300 is a three lamp machine
offering printing speeds up to 640 m/hr (35
fpm) and a print width of 1200 mm (48 in.)
The developer features a ceramic coated
roller for maximum developer life .

The Dart XL 300 model can be purchased
as a tabletop model or with a mobile stand
featuring a sling-type print catcher allowing
convenient front access that requires no
adjustment for roll stock or different size cut
sheets. A 50 meter (50yard) roll storage
compartment is also available with a built in
paper cutter.

AMMONIA ARRESTORS
AND ACCESSORIES
All Daft XL models can be equipped with
the DiAZiT exclusive Ammonia Arrestor
System that reduces ammonia odors up to
90%, depending upon conditions. The Dart
XL 300 Ammonia Arrestor System is
included as standard equipment. There is a
variety of optional accessories for the Dart
XL series including mobile stands with print
catchers, roll storage cabinets with built-in
paper cutters (as pictured on opposite
page), feed boards, table mounts (pictured
right) and even a special wall mount option
for the Dart XL 80 model

-
Quick View
HPDesignjet t1530ps
  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in) Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in) Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Printheads (C, G, M, mK, pK, Y) Line accuracy +/- 0.1%5 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6 Media Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T) Printing languages (standard) Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X9 Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in) Weight Printer 88 kg (194 lb) Shipping 120 kg (265 lb) What’s in the box HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Environmental ranges Operating temperature 5 to 40oC (41 to 104oF) Storage temperature -25 to 55oC (-13 to 131oF) Operating humidity 20 to 80% RH Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)) Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep) Power consumption 120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze Warranty One-year limited hardware warranty

  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Printheads (C, G, M, mK, pK, Y)
    Line accuracy +/- 0.1%5
    Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
    Media Handling Input: two automatic front-loading roll feeds, smart roll switching,
    sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to
    50 A1/D-size capacity), media bin, automatic cutter
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
    Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T)
    Printing languages
    (standard)
    Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level
    3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for
    Windows, HP driver for MAC OS X, HP Print Service for Android, Apple
    AirPrint driver
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript
    drivers for Windows, Linux, and Mac OS X9
    Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
    Weight Printer 88 kg (194 lb)
    Shipping 120 kg (265 lb)
    What’s in the
    box
    HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand
    and media bin, spindles, quick reference guide, setup poster, start-up software, power cord
    Environmental
    ranges
    Operating temperature 5 to 40oC (41 to 104oF)
    Storage temperature -25 to 55oC (-13 to 131oF)
    Operating humidity 20 to 80% RH
    Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))
    Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
    Power
    consumption
    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
    Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant),
    Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico
    (NYCE), Korea (KATS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada
    (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China
    (CCC), Japan (VCCI); Certified as Class A product:
    Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
    Warranty One-year limited hardware warranty
-
Quick View
TAIMES T601
  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER Number of Printhead T1601-DX5-1H Ink Type Eco-solvent ink, water ink, Sublimation ink ink Supply System Auto Cleaning Capping System Media Type PP, vinyl sheet indoor, light box cloth, drawi ng paper canvas, vinyl, reflective material Special Function Print head Height 2-8mm Above Media step less Adjustable Heating System Intelligent embedded heating system Media Adsorption System Suction fan sucking step less adjustment Auto Media System Equipped（Max Media Weight 60kg） Auto cleaning capping Auto Capping System&Moisturizing System Clamp Combined anti-warping Clamps Auto take up system 60kg heavy type take-up system Print Interface Hi-USB2.0 PIP software Photoprint, Maintop Input power AC220V,50Hz / 60Hz 800W- 2500W Working environment Temperature：18-32℃ Humidity：46-65% Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs

  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER
    Number of Printhead T1601-DX5-1H
    Ink Type Eco-solvent ink, water ink, Sublimation ink
    ink Supply System Auto Cleaning Capping System
    Media
    Type PP, vinyl sheet indoor, light box cloth, drawi
    ng paper canvas, vinyl, reflective material
    Special
    Function
    Print head Height 2-8mm Above Media step less Adjustable
    Heating System Intelligent embedded heating system
    Media Adsorption System
    Suction fan sucking step less adjustment
    Auto Media System Equipped（Max Media Weight 60kg）
    Auto cleaning capping Auto Capping System&Moisturizing System
    Clamp Combined anti-warping Clamps
    Auto take up system 60kg heavy type take-up system
    Print Interface Hi-USB2.0
    PIP software Photoprint, Maintop
    Input power AC220V,50Hz / 60Hz 800W- 2500W
    Working environment Temperature：18-32℃ Humidity：46-65%
    Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs
    Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs
-
Quick View
HP Designjet Z5600
  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm) (borderless on photo roll media); Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet Ink types Pigment-based Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red) Line accuracy +/- 0.1%7 Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable) Guaranteed minimum line width 0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8 Image quality Short-term color stability < 1 dE2000 in less than 5 minutes9 Long-term print-toprint repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed; media output bin; automatic cutter10 Types Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit Size Rolls: 11 to 44 in (279 to 1118 mm) Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm) Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0) Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and event graphics, Light boxes - film
  • Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot
  • Print languages (standard) Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12 Printing paths Printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing, HP DesignJet Click printing software Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h) Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm) Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm) Weight Printer 190.7 lb (86.5 kg) Shipping 263.5 lb (119.5 kg)
  • What’s in the box DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Software included Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center, HP DesignJet Excel Accounting Tool
  • Environmental ranges Operating temp. 41 to 104°F (5 to 40°C) Storage temp. -13 to 131°F (-25 to 55°C) Operating humidity 20 to 80% RH (non-condensing) Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep) Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts with embedded Digital Front End) (sleep); 0.1 watts (off) Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT Bronze
  • Warranty One-year limited hardware warranty

  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi
    Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
    (borderless on photo roll media);
    Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet
    Ink types Pigment-based
    Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and
    chromatic red)
    Line accuracy +/- 0.1%7
    Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8
    Image quality Short-term color
    stability
    < 1 dE2000 in less than 5 minutes9
    Long-term print-toprint
    repeatability
    Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed;
    media output bin; automatic cutter10
    Types Photographic, fine art printing material, self-adhesive, banner
    and sign, bond and coated, backlit
    Size Rolls: 11 to 44 in (279 to 1118 mm)
    Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
    Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0)
    Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics
    design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and
    event graphics, Light boxes – film
  • Connectivity Interfaces
    (standard)
    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO
    Jetdirect accessory slot
  • Print languages
    (standard)
    Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4,
    HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12
    Printing paths Printer driver, HP Embedded Web Server, direct printing from
    USB flash drive, email printing, HP DesignJet Click printing
    software
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X;
    PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h)
    Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm)
    Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm)
    Weight Printer 190.7 lb (86.5 kg)
    Shipping 263.5 lb (119.5 kg)
  • What’s in the box
    DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges,
    printer stand and media bin, spindles, quick reference guide, setup poster, start-up
    software, power cord
    Software
    included
    Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center,
    HP DesignJet Excel Accounting Tool
  • Environmental ranges
    Operating temp. 41 to 104°F (5 to 40°C)
    Storage temp. -13 to 131°F (-25 to 55°C)
    Operating humidity 20 to 80% RH (non-condensing)
    Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep)
    Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts
    with embedded Digital Front End) (sleep); 0.1 watts (off)
    Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz
    (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1
    compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB);
    China (CCC); Argentina (IRAM); India (BIS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC
    rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New
    Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT
    Bronze
  • Warranty One-year limited hardware warranty
-
Quick View
HP Designjet Z2600PS
  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red)

  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black
    photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black
    and chromatic red)
-
Quick View
Roland
  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.

  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.
-
Quick View
Taimes T5-KM5121
  • Media Width 3300mm
  • Speed 2pass 110sqm/h
  • Konica Minolta 512I head
  • Ink Type Low Solvent Ink
  • Capacity 5L Per color
Product Name TAIMES T5 SOLVENT PRINTER Maximum Print Width 3200mm (10.5ft) Printing Resolution 480DPI (Physical) Product Model 4H KM512I-30PL Printhead (4head or 8head) 480X360dpi 2pass 110sqm/h 480X540dpi 3pass 80sqm/h 480X720dpi 4pass 50sqm/h Ink Type Low Solvent Ink Color 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM) Capacity 5L Per Main Tank of Each Color Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System Media Width 3300mm (10.8ft) Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc Media Feeding System Equipped (Max. Media Weight 120kg ) Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System Heating & Drying System Equipped (Drying System Optional) Clamp Equipped Print Interface USB2.0 Printhead Height 2 to 4 mm Above Media Adjustable RIP Software PhotoPRINT10.5 or Maintop V5.30 Input Power AC 220V ,50Hz Operation Environment Temperature: 20~28℃ Humidity: 40%~60% Machine Dimension L4,360x W790 x H1,170 mm; Net Weight: 700Kgs Package Dimension Dismantle package:L4,820 x W1000 x H1050mm Normal Package: L4,820 x W1000 x H1570mm; Gross Weight: 820Kgs; Four units in one 20 feet container

  • Media Width 3300mm
  • Speed 2pass 110sqm/h
  • Konica Minolta 512I head
  • Ink Type Low Solvent Ink
  • Capacity 5L Per color

Product Name TAIMES T5 SOLVENT PRINTER
Maximum Print Width 3200mm (10.5ft)
Printing Resolution 480DPI (Physical)
Product Model 4H
KM512I-30PL Printhead (4head or 8head)
480X360dpi 2pass 110sqm/h
480X540dpi 3pass 80sqm/h
480X720dpi 4pass 50sqm/h
Ink Type Low Solvent Ink
Color 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM)
Capacity 5L Per Main Tank of Each Color
Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Media Width 3300mm (10.8ft) Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Media Feeding System Equipped (Max. Media Weight 120kg )
Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Heating & Drying System Equipped (Drying System Optional)
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software PhotoPRINT10.5 or Maintop V5.30
Input Power AC 220V ,50Hz
Operation Environment Temperature: 20~28℃ Humidity: 40%~60%
Machine Dimension L4,360x W790 x H1,170 mm; Net Weight: 700Kgs
Package Dimension
Dismantle package:L4,820 x W1000 x H1050mm
Normal Package: L4,820 x W1000 x H1570mm;
Gross Weight: 820Kgs; Four units in one 20 feet container

-

Best Selling Products
Quick View
Power Supply
  • 480W Dual Fan 20+4-pin ATX Power Supply PS480D2, 1 x 12V(P4), 4 x Peripheral, 2 x SATA 1 x Floppy
  • Supports Intel P4 and AMD Motherboards
  • Low Noise and Ripple
  • Short Circuit Protection
  • Over-Voltage Protection

  • 480W Dual Fan 20+4-pin ATX Power Supply PS480D2, 1 x 12V(P4), 4 x Peripheral, 2 x SATA 1 x Floppy
  • Supports Intel P4 and AMD Motherboards
  • Low Noise and Ripple
  • Short Circuit Protection
  • Over-Voltage Protection
-
Quick View
HP Designjet T795
  • Speed 28 sec A1, 103 A1 /hr
  • Colour images 41 m²/hr
  • Memory  16 GB 160GB HDD
  • 6 cartridges 69 ml & 130ml
  • 3 printheads hp 72
  • Colour images 41 m²/hr on coated media; 6.7 m²/hr on glossy media Print resolution Up to 2400 x 1200 optimised dpi Margins (top x bottom x left x right) Roll: 5 x 5 x 5 x 5 mm Sheet: 5 x 17 x 5 x 5 mm
  • Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink colours 6 (1 each cyan, grey, magenta, matte black, photo black, yellow) Ink drop 6 pl (C, G, M, pK); 9 pl (mK, Y) Print cartridge volume delivered Matte black (300 ml); cyan, grey, magenta, matte black, photo black, yellow (130 ml); cyan, grey, magenta, photo black, yellow (69 ml)
  • Print head nozzles 1056
  • Print heads 3 (1 each matte black and yellow, magenta and cyan, photo black and grey)
  • Print speed 103 A1 prints per hour Line accuracy +/- 0.1% Line accuracy note: +/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal mode with Original HP inks Minimum line width 0.02 mm (HP-GL/2 addressable) Guaranteed minimum line width 0.06 mm (ISO/IEC 13660:2001(E)) Maximum print weight 11.9 kg Maximum optical density 6 L* min/2.15 D
  • Media Handling Sheet feed; roll feed; automatic cutter Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) Weight 60 to 328 g/m² Size CR649C 210 x 279 to 1118 x 1676 mm Thickness Up to 31.5 milConnectivity Interfaces (standard) Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect accessory slot Interfaces (optional) Compatible HP Jetdirect print servers Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI Print languages (optional) Adobe PostScript® 3; Adobe PDF 1.7 Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript® Windows and Mac drivers with optional PostScript®/PDF Upgrade Kit Environmental ranges Operating temperature 5 to 40ºC Storage temperature -25 to 55ºC Operating humidity 20 to 80% RH Storage humidity 0 to 95% RH Acoustic Sound Pressure 43 dB(A) Sound Power 6.1 B(A) Dimensions (w x d x h) Printer 1770 x 701 x 1050 mm Packaged 1930 x 766 x 770 mm Weight Printer 81.6 kg Packaged 103 kg Power consumption Maximum < 120 watts (printing), < 27 watts (ready), < 7 watts /< 25 watts with embedded Digital Front End (sleep), 0.1 watts (off) Power requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max

  • Speed 28 sec A1, 103 A1 /hr
  • Colour images 41 m²/hr
  • Memory  16 GB 160GB HDD
  • 6 cartridges 69 ml & 130ml
  • 3 printheads hp 72
  • Colour images 41 m²/hr on coated media; 6.7 m²/hr on glossy media
    Print resolution Up to 2400 x 1200 optimised dpi
    Margins (top x bottom x left x right) Roll: 5 x 5 x 5 x 5 mm
    Sheet: 5 x 17 x 5 x 5 mm
  • Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink colours 6 (1 each cyan, grey, magenta, matte black, photo black, yellow)
    Ink drop 6 pl (C, G, M, pK); 9 pl (mK, Y)
    Print cartridge volume delivered Matte black (300 ml); cyan, grey, magenta, matte black, photo black, yellow (130
    ml); cyan, grey, magenta, photo black, yellow (69 ml)
  • Print head nozzles 1056
  • Print heads 3 (1 each matte black and yellow, magenta and cyan, photo black and grey)
  • Print speed 103 A1 prints per hour
    Line accuracy +/- 0.1%
    Line accuracy note: +/- 0.1% of the specified vector length or +/- 0.2 mm
    (whichever greater) at 23ºC, 50-60% relative humidity, on A0 HP Matte Film in
    Best or Normal mode with Original HP inks
    Minimum line width 0.02 mm (HP-GL/2 addressable)
    Guaranteed minimum line width 0.06 mm (ISO/IEC 13660:2001(E))
    Maximum print weight 11.9 kg
    Maximum optical density 6 L* min/2.15 D
  • Media
    Handling Sheet feed; roll feed; automatic cutter
    Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight
    plus matte, coloured), technical paper (natural tracing, translucent bond,
    vellum), film (clear, matte, polyester), photographic paper (satin, gloss,
    semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor
    paper, polypropylene, vinyl)
    Weight 60 to 328 g/m²
    Size
    CR649C 210 x 279 to 1118 x 1676 mm
    Thickness Up to 31.5 milConnectivity
    Interfaces (standard) Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect
    accessory slot
    Interfaces (optional) Compatible HP Jetdirect print servers
    Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI
    Print languages (optional) Adobe PostScript® 3; Adobe PDF 1.7
    Drivers included HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X;
    PostScript® Windows and Mac drivers with optional PostScript®/PDF Upgrade Kit
    Environmental ranges
    Operating temperature 5 to 40ºC
    Storage temperature -25 to 55ºC
    Operating humidity 20 to 80% RH
    Storage humidity 0 to 95% RH
    Acoustic
    Sound Pressure 43 dB(A)
    Sound Power 6.1 B(A)
    Dimensions (w x d x h)
    Printer 1770 x 701 x 1050 mm
    Packaged 1930 x 766 x 770 mm
    Weight
    Printer 81.6 kg
    Packaged 103 kg
    Power consumption
    Maximum < 120 watts (printing), < 27 watts (ready), < 7 watts /< 25 watts with embedded
    Digital Front End (sleep), 0.1 watts (off)
    Power requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A
    max
-
Quick View
Spindle Caps
  • Model: HP DesignJet T610 T770 T1100 T1200 Z2100 Z3100
  • END cap Spindle hub (Blue+black) HP DJ T610 T770
  • Brand: For HP
  • Product: 1 pair of spindle hubs (one blue and one black)

  • Model: HP DesignJet T610 T770 T1100 T1200 Z2100 Z3100
  • END cap Spindle hub (Blue+black) HP DJ T610 T770
  • Brand: For HP
  • Product: 1 pair of spindle hubs (one blue and one black)
-
Quick View
HP DesignJet T930
  • Speed 21 sec A1/120 A1/hr
  • Memory 64 GB 320 GB hard disk
  • 6 cartridges 130ml & 300ml
  • Printheads 1 (C, G, M, mK, pK, Y)
  • Technology HP Thermal Inkjet
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.1 x 0.1 x 0.1 x 0.1 in) Sheet: 3 x 22 x 3 x 3 mm (0.1 x 0.87 x 0.1 x 0.1 in) Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Printheads 1 (C, G, M, mK, pK, Y) Line accuracy +/- 0.1%5 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6 Media Handling Input: automatic front-loading roll feed, sheet feed; Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Connectivity8 Interfaces (standard) Gigabit Ethernet (1000Base-T) Print languages (standard)
  • Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X9
  • Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
  • Weight Printer 87 kg (191.8 lb) Shipping 120 kg (265 lb)
  • What’s in the box HP DesignJet T930 Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindle, quick reference guide, setup poster, startup software, power cord Environmental ranges Operating temperature: 5 to 40°C (41 to 104°F) Storage temperature: -25 to 55°C (-13 to 131°F) Operating humidity: 20 to 80% RH Acoustic Sound pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep) Sound power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power consumption 120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max

  • Speed 21 sec A1/120 A1/hr
  • Memory 64 GB 320 GB hard disk
  • 6 cartridges 130ml & 300ml
  • Printheads 1 (C, G, M, mK, pK, Y)
  • Technology HP Thermal Inkjet
  • Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.1 x 0.1 x 0.1 x 0.1 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.1 x 0.87 x 0.1 x 0.1 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Printheads 1 (C, G, M, mK, pK, Y)
    Line accuracy +/- 0.1%5
    Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed minimum
    line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
    Media Handling Input: automatic front-loading roll feed, sheet feed;
    Output: integrated output stacking tray (from A4/A to AO/E,
    with up to 50 A1/D-size capacity), media bin, automatic cutter
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
  • Connectivity8 Interfaces (standard) Gigabit Ethernet (1000Base-T)
    Print languages
    (standard)
  • Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7
    Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for
    Windows, HP driver for MAC OS X, HP Print Service for Android,
    Apple AirPrint driver
  • Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X;
    PostScript drivers for Windows, Linux, and Mac OS X9
  • Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
  • Weight Printer 87 kg (191.8 lb)
    Shipping 120 kg (265 lb)
  • What’s in the box HP DesignJet T930 Printer, printhead, introductory ink cartridges, stacking tray, printer
    stand and media bin, spindle, quick reference guide, setup poster, startup software,
    power cord
    Environmental
    ranges
    Operating temperature: 5 to 40°C (41 to 104°F)
    Storage temperature: -25 to 55°C (-13 to 131°F)
    Operating humidity: 20 to 80% RH
    Acoustic Sound pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)
    Sound power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
  • Power
    consumption
    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
-
Quick View
Trailing Cable 42” for 500 series
  • Get the Best quality trailing cable only on DMC.
  • We have all the spare parts you may need for your printers. Get in touch with us today.

  • Get the Best quality trailing cable only on DMC.
  • We have all the spare parts you may need for your printers. Get in touch with us today.
-
Quick View
HPDesignjet t1530ps
  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in) Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in) Technology HP Thermal Inkjet Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK) Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK) Printheads (C, G, M, mK, pK, Y) Line accuracy +/- 0.1%5 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6 Media Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter Size Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Thickness Up to 0.5 mm (19.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T) Printing languages (standard) Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X9 Dimensions (w x d x h) Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in) Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in) Weight Printer 88 kg (194 lb) Shipping 120 kg (265 lb) What’s in the box HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Environmental ranges Operating temperature 5 to 40oC (41 to 104oF) Storage temperature -25 to 55oC (-13 to 131oF) Operating humidity 20 to 80% RH Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)) Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep) Power consumption 120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End) Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze Warranty One-year limited hardware warranty

  • Speed 21 sec/ A1/120 A1/hr
  • Memory 96 GB,500GB HDD
  • 50-page output stacking tray
  • Two rolls with automatic switching
  • 6 cartridges no.727 130 & 300ml
    Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x right)
    Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in)
    Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
    Technology HP Thermal Inkjet
    Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
    Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
    Printheads (C, G, M, mK, pK, Y)
    Line accuracy +/- 0.1%5
    Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
    Media Handling Input: two automatic front-loading roll feeds, smart roll switching,
    sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to
    50 A1/D-size capacity), media bin, automatic cutter
    Size Rolls: 279 to 914 mm (11 to 36 in)
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48 in)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
    Connectivity8 Interfaces (standard) Gigabit Ethernet (1000 Base-T)
    Printing languages
    (standard)
    Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4,
    HP-PCL3GUI, URF
    PostScript® Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level
    3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
    Printing paths Direct printing from USB flash drive, email printing, HP driver for
    Windows, HP driver for MAC OS X, HP Print Service for Android, Apple
    AirPrint driver
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript
    drivers for Windows, Linux, and Mac OS X9
    Dimensions
    (w x d x h)
    Printer 1399 x 916 x 1110 mm (55.1 x 36.1 x 43.7 in)
    Shipping 1500 x 781 x 815 mm (59.1 x 30.8 x 33.5 in)
    Weight Printer 88 kg (194 lb)
    Shipping 120 kg (265 lb)
    What’s in the
    box
    HP DesignJet T1530 Printer, printhead, introductory ink cartridges, stacking tray, printer stand
    and media bin, spindles, quick reference guide, setup poster, start-up software, power cord
    Environmental
    ranges
    Operating temperature 5 to 40oC (41 to 104oF)
    Storage temperature -25 to 55oC (-13 to 131oF)
    Operating humidity 20 to 80% RH
    Acoustic Sound pressure 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))
    Sound power 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
    Power
    consumption
    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz),
    Input Current 2 A max
    Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant),
    Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico
    (NYCE), Korea (KATS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada
    (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China
    (CCC), Japan (VCCI); Certified as Class A product:
    Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
    Warranty One-year limited hardware warranty
-
Quick View
HP Designjet Z6800
  • Memory 64 GB , 320 GB hdd
  • Speed 19.7 m²/hr
  • Ink types Pigment-based
  • width 60inch
  • 8 cartridges 775ml
  • Color images7 Best: 3.2 min/page on A1/D or up to 13.1 m²/hr (141 ft²/hr) on glossy media Normal: 2.1 min/page on A1/D or up to 19.7 m²/hr (212 ft²/hr) on glossy media
Print resolution Up to 2400 x 1200 optimized dpi Margins 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in) Technology HP Thermal Inkjet Ink cartridges Chromatic red, magenta, yellow, light cyan, light gray, light magenta, matte black, photo black Line accuracy +/- 0.1%8 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.067 mm (0.0026 in) (ISO/IEC 13660:2001(E))9 Image quality Color accuracy Median < 1.19 dE2000, 95% of colors < 2.77 dE200010 Short term color stability < 1 dE2000 in less than 5 minutes11 Long term print-toprint repeatability Average < 0.5 dE2000, max < 1 dE200011 Maximum optical density 4.5 L* min/2.31 D12 Media Handling Roll feed, automatic cutter, take-up reel Media types Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material Size 279 to 1524-mm (11 to 60-in) rolls Thickness Up to 0.56 mm (22 mil) Applications Posters, Banners, Mockups, Photos, Digital fine art, Proofs, Displays, POP/POS, Light boxes – film, Exhibition, Event graphics Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot Print languages (standard) HP-GL/2, HP-RTL, CALS G4 Print languages (optional) Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG Printing paths Printer driver, HP Embedded Web Server Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit Dimensions (w x d x h) Printer 2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in) Shipping 2700 x 750 x 1200 mm (106.3 x 29.5 x 47.2 in) Weight Printer 190 kg (419 lb) Shipping 252 kg (555.6 lb)   What’s in the box HP Designjet Z6800 Photo Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, take-up reel, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord Environmental ranges Operating temp. -20 to 55?C (-4 to 131?F) Storage temp. -20 to 55?C (-4 to 131?F) Operating humidity 20 to 80% RH Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep) Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep) Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off) Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz) Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP) Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze Warranty One-year limited hardware warranty

  • Memory 64 GB , 320 GB hdd
  • Speed 19.7 m²/hr
  • Ink types Pigment-based
  • width 60inch
  • 8 cartridges 775ml
  • Color images7 Best: 3.2 min/page on A1/D or up to 13.1 m²/hr
    (141 ft²/hr) on glossy media
    Normal: 2.1 min/page on A1/D or up to 19.7 m²/hr
    (212 ft²/hr) on glossy media

Print resolution Up to 2400 x 1200 optimized dpi

Margins 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)

Technology HP Thermal Inkjet
Ink cartridges Chromatic red, magenta, yellow, light cyan, light gray, light
magenta, matte black, photo black
Line accuracy +/- 0.1%8
Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed
minimum line width
0.067 mm (0.0026 in) (ISO/IEC 13660:2001(E))9
Image quality Color accuracy Median < 1.19 dE2000, 95% of colors < 2.77 dE200010
Short term color
stability
< 1 dE2000 in less than 5 minutes11
Long term print-toprint
repeatability
Average < 0.5 dE2000, max < 1 dE200011
Maximum optical
density
4.5 L* min/2.31 D12
Media Handling Roll feed, automatic cutter, take-up reel
Media types Bond and coated paper, technical paper, film, photographic
paper, proofing paper, backlit, self-adhesive, banner and
sign, fabric, fine art printing material
Size 279 to 1524-mm (11 to 60-in) rolls
Thickness Up to 0.56 mm (22 mil)
Applications Posters, Banners, Mockups, Photos, Digital fine art, Proofs, Displays, POP/POS,
Light boxes – film, Exhibition, Event graphics
Connectivity Interfaces (standard)
Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
Print languages
(standard)
HP-GL/2, HP-RTL, CALS G4

Print languages
(optional)
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Printing paths Printer driver, HP Embedded Web Server
Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows
and Mac drivers with optional PostScript/PDF Upgrade Kit

Dimensions (w x d x h)
Printer 2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in)
Shipping 2700 x 750 x 1200 mm (106.3 x 29.5 x 47.2 in)
Weight Printer 190 kg (419 lb)
Shipping 252 kg (555.6 lb)



What’s in the box
HP Designjet Z6800 Photo Production Printer, spindle, printheads, introductory
ink cartridges, maintenance cartridge, printer stand, take-up reel, 3-in spindle
adapter kit, quick reference guide, setup poster, startup software, power cord

Environmental ranges
Operating temp. -20 to 55?C (-4 to 131?F)
Storage temp. -20 to 55?C (-4 to 131?F)
Operating humidity 20 to 80% RH
Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)
Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)

Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep);
< 0.3 watts (off)
Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A;
220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)

Certification Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1
compliant), Russia (GOST), Singapore (PSB), China (CCC),
Argentina (IRAM), Mexico (NYCE), Korea (KC)
Electromagnetic Compliant with Class A requirements, including: USA (FCC
rules), Canada (ICES), EU (EMC Directive), Australia (ACMA),
New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH,
EPEAT Bronze

Warranty One-year limited hardware warranty

-
Quick View
Super diazo 4
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm up to ISO A0)
  • Electrical 3-150 VA fluorescent lamp (3 tubes)
  • Forward/Reverse Switch
  • Instant, 10 minutes Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)
-
Quick View
TAIMES T601
  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER Number of Printhead T1601-DX5-1H Ink Type Eco-solvent ink, water ink, Sublimation ink ink Supply System Auto Cleaning Capping System Media Type PP, vinyl sheet indoor, light box cloth, drawi ng paper canvas, vinyl, reflective material Special Function Print head Height 2-8mm Above Media step less Adjustable Heating System Intelligent embedded heating system Media Adsorption System Suction fan sucking step less adjustment Auto Media System Equipped（Max Media Weight 60kg） Auto cleaning capping Auto Capping System&Moisturizing System Clamp Combined anti-warping Clamps Auto take up system 60kg heavy type take-up system Print Interface Hi-USB2.0 PIP software Photoprint, Maintop Input power AC220V,50Hz / 60Hz 800W- 2500W Working environment Temperature：18-32℃ Humidity：46-65% Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs

  • Printing Speed 15sqm/hr
  • Width 1880mm（74inch）
  • PrintHead Epson DX5
  • Color 4 colors（K, C, M, Y）
  • Ink Type Eco-solvent ink
  • Model TAIMES T1601 ESPON PRINTER
    Number of Printhead T1601-DX5-1H
    Ink Type Eco-solvent ink, water ink, Sublimation ink
    ink Supply System Auto Cleaning Capping System
    Media
    Type PP, vinyl sheet indoor, light box cloth, drawi
    ng paper canvas, vinyl, reflective material
    Special
    Function
    Print head Height 2-8mm Above Media step less Adjustable
    Heating System Intelligent embedded heating system
    Media Adsorption System
    Suction fan sucking step less adjustment
    Auto Media System Equipped（Max Media Weight 60kg）
    Auto cleaning capping Auto Capping System&Moisturizing System
    Clamp Combined anti-warping Clamps
    Auto take up system 60kg heavy type take-up system
    Print Interface Hi-USB2.0
    PIP software Photoprint, Maintop
    Input power AC220V,50Hz / 60Hz 800W- 2500W
    Working environment Temperature：18-32℃ Humidity：46-65%
    Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs
    Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs
-
Quick View
HP DesignJet T830 36-in MFP
  • speed 25 sec A1 82 A1's per hour
  • Scan/copy resolution 600 dpi
  • Memory 1 GB
  • Wifi,Mobile printing,usb port
  • Scan speed Color: up to 3.81 cm/sec
  • Grayscale: up to 11.43 cm/sec
  • Media Handling Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Ink types Dye-based (C, M, Y); pigment-based (mK)
  • Maximum scan Size: 914mm x 2.77m (36x109in) Thickness: 0.8 mm (0.03 in)
  • Copy Reduction/enlargement 50 to 400%Maximum copies Up to 99 copies Copier settings Content type, Lighter/Darker, Background noise removal,
  • Background color removal, Blue print invert, Translucent media, Color, Scan full width (36-in), Auto De-skew, Resize, Copy Margins, Quality Applications Line drawings, Renderings, PresentationsConnectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0
  • Printing paths Windows and Mac printer drivers, Apple AirPrint driver, print from USB pen drivecapability features Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing and scaning via HP ePrint, Apple AirPrint™ and HP All-in-One printer remote App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS Drivers (included) HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows
  • Dimensions (w x d x h) Printer 1403 x 629 x 1155 mm (55.2 x 24.8 x 45.5 in) Shipping 1578 x 575 x 646 mm (62.5 x 22.6 x 25.4 in)
  • Weight Printer 62.5 kg (137.8 lb) Shipping 85 kg (187.4 lb)
  • What’s in the box HP DesignJet T830 MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers Environmental ranges
  • Operating temperature: 5 to 40°C (41 to 104°F) Storage temperature: -25 to 55°C (-13 to 131°F) Operating humidity: 20 to 80% RH Acoustic Sound pressure: 48 dB(A) (printing); < 16 dB(A) (sleep) Sound power: 6.5 B(A) (printing); < 3.4 B(A) (sleep)
  • Power consumption 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby) Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max

  • speed 25 sec A1 82 A1’s per hour
  • Scan/copy resolution 600 dpi
  • Memory 1 GB
  • Wifi,Mobile printing,usb port
  • Scan speed Color: up to 3.81 cm/sec
  • Grayscale: up to 11.43 cm/sec
  • Media Handling Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Ink types Dye-based (C, M, Y); pigment-based (mK)
  • Maximum scan Size: 914mm x 2.77m (36x109in)
    Thickness: 0.8 mm (0.03 in)
  • Copy Reduction/enlargement 50 to 400%Maximum copies Up to 99 copies
    Copier settings Content type, Lighter/Darker, Background noise removal,
  • Background color removal, Blue print invert, Translucent media,
    Color, Scan full width (36-in), Auto De-skew, Resize, Copy Margins,
    Quality
    Applications Line drawings, Renderings, PresentationsConnectivity Interfaces
    (standard)
    Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0
  • Printing paths Windows and Mac printer drivers, Apple AirPrint driver, print from
    USB pen drivecapability
    features
    Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing
    and scaning via HP ePrint, Apple AirPrint™ and HP All-in-One printer
    remote App. Supports printing from most smartphones and tablets
    using these operating systems: Android, iOS
    Drivers (included) HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac
    OS X and Windows
  • Dimensions
    (w x d x h)
    Printer 1403 x 629 x 1155 mm (55.2 x 24.8 x 45.5 in)
    Shipping 1578 x 575 x 646 mm (62.5 x 22.6 x 25.4 in)
  • Weight Printer 62.5 kg (137.8 lb)
    Shipping 85 kg (187.4 lb)
  • What’s in the box HP DesignJet T830 MFP, printhead, ink cartridges, printer stand, spindle, quick reference
    guide, setup poster, startup software, power cord, refeed preventers
    Environmental
    ranges
  • Operating temperature: 5 to 40°C (41 to 104°F)
    Storage temperature: -25 to 55°C (-13 to 131°F)
    Operating humidity: 20 to 80% RH
    Acoustic Sound pressure: 48 dB(A) (printing); < 16 dB(A) (sleep)
    Sound power: 6.5 B(A) (printing); < 3.4 B(A) (sleep)
  • Power
    consumption
    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
    Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max
-
Quick View
HP Latex 365
  • Printing speed 91 m²/hr
  • Resolution Up to 1200 x 1200 dpi
  • Cartridge size 775 ml NO.831
  • Printheads 6
  • Weight Printer 216 kg (476 lb)
  • Printing Printing modes 91 m²/hr (980 ft²/hr) - Max Speed (1 pass) 31 m²/hr (334 ft²/hr) - Outdoor High Speed (4 pass) 23 m²/hr (248 ft²/hr) - Outdoor Plus (6 pass) 17 m²/hr (183 ft²/hr) - Indoor Quality (8 pass) 14 m²/hr (151 ft²/hr) - Indoor High Quality (10 pass) 6 m²/hr (65 ft²/hr) - Backlits, Textiles, and Canvas (16 pass) 5 m²/hr (54 ft²/hr) - High Saturation Textiles (20 pass) Margins 5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders) Ink types HP Latex Inks Ink cartridges Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer Printheads 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer) Color consistency18 Average <= 1 dE2000, 95% of colors <= 2 dE2000 Media Handling Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film) Media types Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles Roll size 254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support) Roll weight 42 kg (92.6 lb) Roll diameter 250 mm (9.8 in) Thickness Up to 0.5 mm (19.7 mil) Applications Banners, Displays, Double-sided banners, Exhibition and event graphics,Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light boxes – paper, Murals, POP/POS, Posters, Textile, Traffic signage, Vehicle graphics Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T) Dimensions Printer 2561 x 840 x 1380 mm (101 x 33 x 54 in) Shipping 2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in) (w x d x h) Operating area 2761 x 1840 mm (109 x 72 in) Weight Printer 216 kg (476 lb) Shipping 303.5 kg (671.5 lb) What’s in the box HP Latex 365 Printer, printheads, maintenance cartridge, ink collector, output platen protector, printer stand, spindle, take-up reel, variable front tension kit, loading accessory, user maintenance kit, edge holders, quick reference guide, setup poster, documentation software, power cords Environmental ranges Operating temperature 15 to 30°C (59 to 86°F) Operating humidity 20 to 80% RH (non-condensing) Acoustic Sound pressure 55 dB(A) (printing); 39 dB(A) (ready); < 15 dB(A) (sleep) Sound power 7.4 B(A) (printing); 5.7 B(A) (ready); < 3.5 B(A) (sleep) Power Consumption 4.6 kW (printing); 85 watts (ready); < 2.5 watts (sleep) Requirements Input voltage (auto ranging) 200 to 240 VAC (-10% +10%) two wires and PE; 50/60 Hz (+/- 3 Hz); two power cords; 16 A max per power cord

  • Printing speed 91 m²/hr
  • Resolution Up to 1200 x 1200 dpi
  • Cartridge size 775 ml NO.831
  • Printheads 6
  • Weight Printer 216 kg (476 lb)
  • Printing Printing modes 91 m²/hr (980 ft²/hr) – Max Speed (1 pass)
    31 m²/hr (334 ft²/hr) – Outdoor High Speed (4 pass)
    23 m²/hr (248 ft²/hr) – Outdoor Plus (6 pass)
    17 m²/hr (183 ft²/hr) – Indoor Quality (8 pass)
    14 m²/hr (151 ft²/hr) – Indoor High Quality (10 pass)
    6 m²/hr (65 ft²/hr) – Backlits, Textiles, and Canvas (16 pass)
    5 m²/hr (54 ft²/hr) – High Saturation Textiles (20 pass)
    Margins 5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)
    Ink types HP Latex Inks
    Ink cartridges Black, cyan, light cyan, light magenta, magenta, yellow,
    HP Latex Optimizer
    Printheads 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta,
    1 HP Latex Optimizer)
    Color
    consistency18
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Media Handling Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)
    Media types Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles
    Roll size 254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support)
    Roll weight 42 kg (92.6 lb)
    Roll diameter 250 mm (9.8 in)
    Thickness Up to 0.5 mm (19.7 mil)
    Applications Banners, Displays, Double-sided banners, Exhibition and event graphics,Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light
    boxes – paper, Murals, POP/POS, Posters, Textile, Traffic signage, Vehicle graphics
    Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T)
    Dimensions Printer 2561 x 840 x 1380 mm (101 x 33 x 54 in) Shipping 2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in)
    (w x d x h)
    Operating area 2761 x 1840 mm (109 x 72 in)
    Weight Printer 216 kg (476 lb)
    Shipping 303.5 kg (671.5 lb)
    What’s in the
    box
    HP Latex 365 Printer, printheads, maintenance cartridge, ink collector, output
    platen protector, printer stand, spindle, take-up reel, variable front tension kit,
    loading accessory, user maintenance kit, edge holders, quick reference guide,
    setup poster, documentation software, power cords
    Environmental
    ranges
    Operating
    temperature
    15 to 30°C (59 to 86°F)
    Operating
    humidity
    20 to 80% RH (non-condensing)
    Acoustic Sound pressure 55 dB(A) (printing); 39 dB(A) (ready); < 15 dB(A) (sleep)
    Sound power 7.4 B(A) (printing); 5.7 B(A) (ready); < 3.5 B(A) (sleep)
    Power Consumption 4.6 kW (printing); 85 watts (ready); < 2.5 watts (sleep)
    Requirements Input voltage (auto ranging) 200 to 240 VAC (-10% +10%) two
    wires and PE; 50/60 Hz (+/- 3 Hz); two power cords;
    16 A max per power cord
-
Quick View
Dart xl300
  • Print Speed 35 ft (640 m/hr)
  • Print Width 32" (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm (62"x7"x20")
The Dart XL 300 blueprint machine is designed for moderate to heavy production of all ammonia-developing products. The Dart XL 300 is a three lamp machine offering printing speeds up to 640 m/hr (35 fpm) and a print width of 1200 mm (48 in.) The developer features a ceramic coated roller for maximum developer life . The Dart XL 300 model can be purchased as a tabletop model or with a mobile stand featuring a sling-type print catcher allowing convenient front access that requires no adjustment for roll stock or different size cut sheets. A 50 meter (50yard) roll storage compartment is also available with a built in paper cutter. AMMONIA ARRESTORS AND ACCESSORIES All Daft XL models can be equipped with the DiAZiT exclusive Ammonia Arrestor System that reduces ammonia odors up to 90%, depending upon conditions. The Dart XL 300 Ammonia Arrestor System is included as standard equipment. There is a variety of optional accessories for the Dart XL series including mobile stands with print catchers, roll storage cabinets with built-in paper cutters (as pictured on opposite page), feed boards, table mounts (pictured right) and even a special wall mount option for the Dart XL 80 model

  • Print Speed 35 ft (640 m/hr)
  • Print Width 32″ (812 mm A0)
  • Electrical 3-150 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 197 lbs. (90 kg)
  • Dimensions 158Wx18Hx51D cm
    (62″x7″x20″)

The Dart XL 300 blueprint machine is
designed for moderate to heavy production
of all ammonia-developing products. The
Dart XL 300 is a three lamp machine
offering printing speeds up to 640 m/hr (35
fpm) and a print width of 1200 mm (48 in.)
The developer features a ceramic coated
roller for maximum developer life .

The Dart XL 300 model can be purchased
as a tabletop model or with a mobile stand
featuring a sling-type print catcher allowing
convenient front access that requires no
adjustment for roll stock or different size cut
sheets. A 50 meter (50yard) roll storage
compartment is also available with a built in
paper cutter.

AMMONIA ARRESTORS
AND ACCESSORIES
All Daft XL models can be equipped with
the DiAZiT exclusive Ammonia Arrestor
System that reduces ammonia odors up to
90%, depending upon conditions. The Dart
XL 300 Ammonia Arrestor System is
included as standard equipment. There is a
variety of optional accessories for the Dart
XL series including mobile stands with print
catchers, roll storage cabinets with built-in
paper cutters (as pictured on opposite
page), feed boards, table mounts (pictured
right) and even a special wall mount option
for the Dart XL 80 model

-
Quick View
HP DesignJet T7200
  • Speed 15.5 sec A1, 165 A1/hr
  • Memory 64 GB , 320 GB hdd
  • Media Handling 3 roll feeds
  • 6 cartridges 400ml & 775ml
  • 8 printheads no.761
  • Color images6 Up to: 17.5 sec/page on A1/D or up to 117.5 m²/hr (1265 ft²/hr) on
  • coated media
  • Max print speed5 123.3 m²/hr (1320 ft²/hr)
  • Print resolution Up to 2400 x 1200 optimized dpi Margins (top x bottom x left x right) 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
  • Ink types Dye-based (C, M, Y, G, DG); pigment-based (mK)
  • Ink drop 6 pl (C, M, DG, G); 9 pl (Y, mK)
  • Ink cartridges 6 (cyan, magenta, yellow, matte black, gray, dark gray)
  • Printheads 8 (cyan, magenta, yellow x2, dark gray, gray, matte black x2) Line accuracy +/- 0.1%7 Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable) Guaranteed minimum line width 0.06 mm (0.0024 in) (ISO/IEC 13660:2001(E))8
  • Media Handling Two roll feeds (upgradeable to three), automatic roll switching, rolls up to 200 m (650 ft) each, automatic cutter, media bin Size 280 to 1067-mm (11 to 42-in) rolls, up to 18 kg (26.5 lb)
  • Thickness Up to 0.4 mm (15.7 mil) Applications Line drawings, Renderings, Presentations, Maps, Orthophotos, Posters, Point of sale/ display, Photos Connectivity Interfaces
  • (standard) Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
  • Print languages (standard) HP-GL/2, HP-RTL, CALS G4 Print languages (optional) Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG Printing paths HP SmartStream software, Printer driver, HP Embedded Web Server
  • Drivers (included) HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac OS X drivers with optional PostScript/PDF Upgrade Kit. Compatible with HP DesignJet Universal Print Driver for HP-GL/2 and HP DesignJet Universal Print Driver for PS (with PostScript/PDF Upgrade Kit)
  • Dimensions (w x d x h) Printer 1974 x 700 x 1374 mm (77.7 x 27.6 x 54.1 in) Shipping 2232 x 761 x 1269 mm (87.9 x 30 x 50 in)
  • Weight Printer 187 kg (412 lb) Shipping 225 kg (496 lb) What’s in the box
  • HP DesignJet T7200 Production Printer, 2-in spindle, printheads, introductory ink cartridges, printer stand and media bin, 3-in spindle adapter kit (x2), maintenance cartridge, startup software, quick reference guide, setup poster, power cords
  • Environmental ranges Operating temperature 5 to 40?C (41 to 104?F) Storage temperature -20 to 55?C (-4 to 131?F) Operating humidity 20 to 80% RH
  • Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep) Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)
  • Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off) Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)

  • Speed 15.5 sec A1, 165 A1/hr
  • Memory 64 GB , 320 GB hdd
  • Media Handling 3 roll feeds
  • 6 cartridges 400ml & 775ml
  • 8 printheads no.761
  • Color images6 Up to: 17.5 sec/page on A1/D or up to 117.5 m²/hr (1265 ft²/hr) on
  • coated media
  • Max print speed5 123.3 m²/hr (1320 ft²/hr)
  • Print resolution Up to 2400 x 1200 optimized dpi
    Margins (top x
    bottom x left x
    right)
    5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
  • Ink types Dye-based (C, M, Y, G, DG); pigment-based (mK)
  • Ink drop 6 pl (C, M, DG, G); 9 pl (Y, mK)
  • Ink cartridges 6 (cyan, magenta, yellow, matte black, gray, dark gray)
  • Printheads 8 (cyan, magenta, yellow x2, dark gray, gray, matte black x2)
    Line accuracy +/- 0.1%7
    Minimum line
    width
    0.02 mm (0.0008 in) (HP-GL/2 addressable)
    Guaranteed
    minimum line
    width
    0.06 mm (0.0024 in) (ISO/IEC 13660:2001(E))8
  • Media Handling Two roll feeds (upgradeable to three), automatic roll switching, rolls
    up to 200 m (650 ft) each, automatic cutter, media bin
    Size 280 to 1067-mm (11 to 42-in) rolls, up to 18 kg (26.5 lb)
  • Thickness Up to 0.4 mm (15.7 mil)
    Applications Line drawings, Renderings, Presentations, Maps, Orthophotos, Posters, Point of sale/
    display, Photos
    Connectivity Interfaces
  • (standard)
    Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
  • Print languages
    (standard)
    HP-GL/2, HP-RTL, CALS G4
    Print languages
    (optional)
    Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
    Printing paths HP SmartStream software, Printer driver, HP Embedded Web Server
  • Drivers
    (included)
    HP-GL/2, HP-RTL drivers for Windows; PostScript Windows
    and Mac OS X drivers with optional PostScript/PDF Upgrade Kit.
    Compatible with HP DesignJet Universal Print Driver for HP-GL/2
    and HP DesignJet Universal Print Driver for PS (with PostScript/PDF
    Upgrade Kit)
  • Dimensions
    (w x d x h)
    Printer 1974 x 700 x 1374 mm (77.7 x 27.6 x 54.1 in)
    Shipping 2232 x 761 x 1269 mm (87.9 x 30 x 50 in)
  • Weight Printer 187 kg (412 lb)
    Shipping 225 kg (496 lb)
    What’s in the
    box
  • HP DesignJet T7200 Production Printer, 2-in spindle, printheads, introductory ink
    cartridges, printer stand and media bin, 3-in spindle adapter kit (x2), maintenance
    cartridge, startup software, quick reference guide, setup poster, power cords
  • Environmental
    ranges
    Operating
    temperature
    5 to 40?C (41 to 104?F)
    Storage
    temperature
    -20 to 55?C (-4 to 131?F)
    Operating
    humidity
    20 to 80% RH
  • Acoustic Sound pressure 53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)
    Sound power 7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)
  • Power Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep);
    < 0.3 watts (off)
    Requirements Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to
    240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)
-
Quick View
Diazit xl80 Printer
  • Print Speed 21ft/min (384 m/hr)
  • Print Width 32" (812 mm ISO A1)
  • Electrical 1-100 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 55 lbs. (25 kg)
  • Dimensions 108Wx14Hx46D cm (42.5"x5.5"x18")
DiAZiT's Dart XL80 blueprint machine offers contemporary low profile styling and performance at an economical price. The many operator-friendly features that are incorporated into the design of this machine make it easy to use and control. All operating controls are recessed and conveniently located in the center of the unit for easy access by either hand.
  • Instant, No Warm-Up Operation: As with all DiAZiT blueprint machines, the Dart XL80 is ready to go at the flip of a switch with no warm-up and no wait.
  • Solid State Speed Control: A solid state, single dial speed control ensures accurate and repeatable operation from a highly reliable component.
  • Forward/Reverse Switch: Convenience & Safety first for those valuable originals with a flip of a switch.
  • Corrosion-Resistant Developer: All DiAZiT models are equipped with a corrosionresistant developer system for long lasting, trouble-free operation.
  • Precision Glass Cylinders: As with all DiAZiT machines, the Dart XL80 is equipped with high quality, precision glass cylinders that ensure proper contact between the original and print for crisp clear copies every time.

  • Print Speed 21ft/min (384 m/hr)
  • Print Width 32″ (812 mm ISO A1)
  • Electrical 1-100 VA fluorescent
  • Forward/Reverse Switch
  • Instant, No Warm-Up Operation
  • Shipping Wt. 55 lbs. (25 kg)
  • Dimensions 108Wx14Hx46D cm
    (42.5″x5.5″x18″)

DiAZiT’s Dart XL80 blueprint machine offers contemporary low profile styling and performance
at an economical price. The many operator-friendly features that are incorporated into the
design of this machine make it easy to use and control. All operating controls are recessed
and conveniently located in the center of the unit for easy access by either hand.

  • Instant, No Warm-Up Operation: As with all DiAZiT blueprint machines, the Dart
    XL80 is ready to go at the flip of a switch with no warm-up and no wait.
  • Solid State Speed Control: A solid state, single dial speed control ensures accurate
    and repeatable operation from a highly reliable component.
  • Forward/Reverse Switch: Convenience & Safety first for those valuable originals
    with a flip of a switch.
  • Corrosion-Resistant Developer: All DiAZiT models are equipped with a corrosionresistant
    developer system for long lasting, trouble-free operation.
  • Precision Glass Cylinders: As with all DiAZiT machines, the Dart XL80 is equipped
    with high quality, precision glass cylinders that ensure proper contact between the
    original and print for crisp clear copies every time.
-
Quick View
HP Designjet Z5600
  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm) (borderless on photo roll media); Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet Ink types Pigment-based Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red) Line accuracy +/- 0.1%7 Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable) Guaranteed minimum line width 0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8 Image quality Short-term color stability < 1 dE2000 in less than 5 minutes9 Long-term print-toprint repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed; media output bin; automatic cutter10 Types Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit Size Rolls: 11 to 44 in (279 to 1118 mm) Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm) Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0) Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and event graphics, Light boxes - film
  • Connectivity Interfaces (standard) Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot
  • Print languages (standard) Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12 Printing paths Printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing, HP DesignJet Click printing software Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h) Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm) Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm) Weight Printer 190.7 lb (86.5 kg) Shipping 263.5 lb (119.5 kg)
  • What’s in the box DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges, printer stand and media bin, spindles, quick reference guide, setup poster, start-up software, power cord Software included Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center, HP DesignJet Excel Accounting Tool
  • Environmental ranges Operating temp. 41 to 104°F (5 to 40°C) Storage temp. -13 to 131°F (-25 to 55°C) Operating humidity 20 to 80% RH (non-condensing) Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep) Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts with embedded Digital Front End) (sleep); 0.1 watts (off) Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT Bronze
  • Warranty One-year limited hardware warranty

  • speed 650 ft²/hr (60 m²/hr)
  • Memory 64 GB 320 GB hdd
  • 6 cartridges 130&300ml
  •  Two automatic roll feeds
  • 3 Printheads
  • Print resolution Up to 2400 x 1200 optimized dpi
    Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
    (borderless on photo roll media);
    Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
  • Technology HP Thermal Inkjet
    Ink types Pigment-based
    Ink drop 4 pl (pK, C), 6 pl (M, Y, mK, R)
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and
    chromatic red)
    Line accuracy +/- 0.1%7
    Minimum line width 0.0015 in (0.04 mm) (HP-GL/2 addressable)
    Guaranteed
    minimum line width
    0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))8
    Image quality Short-term color
    stability
    < 1 dE2000 in less than 5 minutes9
    Long-term print-toprint
    repeatability
    Average < 0.5 dE2000, 95% of colors < 1.4 dE20009
  • Media Handling Two automatic roll feeds; smart roll-switching; sheet feed;
    media output bin; automatic cutter10
    Types Photographic, fine art printing material, self-adhesive, banner
    and sign, bond and coated, backlit
    Size Rolls: 11 to 44 in (279 to 1118 mm)
    Sheets: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
    Standard sheets: A, B, C, D, E, (A4, A3, A2, A1, A0)
    Thickness Up to 31.5 mil (0.8 mm)
  • Applications Line drawings, Renderings, Maps, Orthophotos, Point of sale/display, Graphics
    design, Office graphics, Posters, Photos, Digital fine art, Banners, Exhibition and
    event graphics, Light boxes – film
  • Connectivity Interfaces
    (standard)
    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO
    Jetdirect accessory slot
  • Print languages
    (standard)
    Adobe PostScript® 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4,
    HP PCL 3 GUI, HP-GL/2,12 and HP-RTL12
    Printing paths Printer driver, HP Embedded Web Server, direct printing from
    USB flash drive, email printing, HP DesignJet Click printing
    software
    Drivers (included) HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X;
    PostScript® drivers for Windows, Linux, and Mac OS X
  • Dimensions (w x d x h)
    Printer 69.7 x 30.5 in x 41.3 in (1770 x 775 x 1050 mm)
    Shipping 76 x 30.3 x 28.3 in (1930 x 770 x 720 mm)
    Weight Printer 190.7 lb (86.5 kg)
    Shipping 263.5 lb (119.5 kg)
  • What’s in the box
    DesignJet Z5600 PostScript® Printer, printheads, introductory ink cartridges,
    printer stand and media bin, spindles, quick reference guide, setup poster, start-up
    software, power cord
    Software
    included
    Printer drivers, HP DesignJet Click, HP DesignJet Utility including HP Color Center,
    HP DesignJet Excel Accounting Tool
  • Environmental ranges
    Operating temp. 41 to 104°F (5 to 40°C)
    Storage temp. -13 to 131°F (-25 to 55°C)
    Operating humidity 20 to 80% RH (non-condensing)
    Acoustic Sound pressure 42 dB(A) (printing); 32 dB(A) (ready); 22 dB(A) (sleep)
    Sound power 6.0 B(A) (printing); 5.0 B(A) (ready); 3.9 B(A) (sleep)
  • Power Consumption < 120 watts (printing); < 32 watts (ready); 1.5 watts (≤ 23 watts
    with embedded Digital Front End) (sleep); 0.1 watts (off)
    Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz
    (+/- 3 Hz), 2 A max
  • Certification Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1
    compliant); Russia/Kazakhstan/Belarus (EAC); Singapore (PSB);
    China (CCC); Argentina (IRAM); India (BIS)
    Electromagnetic Compliant with Class A requirements, including: USA (FCC
    rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New
    Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
    Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH; EPEAT
    Bronze
  • Warranty One-year limited hardware warranty
-
Quick View
Carriage Belt

Technical details

  • Brand Name: HP
  • Model Number: DJ800/500
  • Maximum Print Speed (Black and White): 1500 Pages per month
  • Maximum Print Speed (Color): 1500 Pages per month

Product description

Carriage Belt - Drives the carriage assembly - For use with 42-inch plotters

Product information

Product Dimensions 9 x 3 x 6 inches
Item Weight 0.8 ounces
Shipping Weight 0.8 ounces (View shipping rates and policies)
ASIN B004570KMW
Item model number DJ800/500

Technical details

  • Brand Name: HP
  • Model Number: DJ800/500
  • Maximum Print Speed (Black and White): 1500 Pages per month
  • Maximum Print Speed (Color): 1500 Pages per month

Product description

Carriage Belt – Drives the carriage assembly – For use with 42-inch plotters

Product information

Product Dimensions 9 x 3 x 6 inches
Item Weight 0.8 ounces
Shipping Weight 0.8 ounces (View shipping rates and policies)
ASIN B004570KMW
Item model number DJ800/500
-
Quick View
HP Designjet Z2600PS
  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black and chromatic red)

  • Maximum print speed 43 m²/hr (469 ft²/hr)
  • Memory 8 GB (virtual),12 160 GB hard disk
  • Ink types Pigment-based 6 cartridges( cyan, magenta,yellow, matte black
    photo black,chromatic red)
  • Ink capacity 130ml and 300ml
  • Printheads 3 (photo black and cyan, magenta and yellow, matte black
    and chromatic red)
-
Quick View
Carriage Cover
  • Product: carriage assembly cover (blue and black part as shown in the picture)
  • Condition: new
  • Compatible: HP DesignJet 500 510 800 Carriage Assembly
  • partnumber:COVER-HP500-CA

  • Product: carriage assembly cover (blue and black part as shown in the picture)
  • Condition: new
  • Compatible: HP DesignJet 500 510 800 Carriage Assembly
  • partnumber:COVER-HP500-CA
-
Quick View
TECHNODIAZO 2 3
  • Variable speed up to 300 m/h 400 m/h
  • Print Width 125 cm ( ISO A0)
  • Electrical 3 lamps 140 W (3 tubes)
  • Forward/Reverse Switch
  • Consumption 650 W 850 W
  • Weight without stand 56 Kg 59 Kg Stand weight 14 Kg 14 Kg
  • Dimensions 22 x 172 x 48 cm 22 x 172 x 48 cm
born from a twenty years experience in the diazo machines production, the TECHNODIAdistinguishes itself for its new technological solutions. A high level rationalization assures high reliability and easy maintenance. The modern and essential design is in keeping with all furniture solution of the office. A great care has been used to make the TECHNODIAZO of ergonomic use. The residual ammonia vapours of the closed circuit and of the copy 95% neutralized by the "NEOFILTER" system, allowing the installation of the TECHNODIAZO in any offices with no problem. As a further possibility, the residual vapours instead of going through a filter, can be conveyed outside through an exhaust pipe. Technical Specifications TECHNODIAZO 2 3 Working width 125 cm Variable speed up to 300 m/h 400 m/h Light source 2 lamps 140 W with rotating crystal with rotating crystal Available power supply 220 V - 50 Hz 240 V - 50 Hz 110 V - 60 HZ 220 V - 50 Hz 240 V - 50 Hz 110 V - 60 HZ Consumption 650 W 850 W Drawer capacity 50 m roll 1 1 Working surface height on stand 95 cm 95 cm Dimensions without stand: height - width - depth Packing dimensions height - width - depth 34 x 186 x 59 cm 34 x 186 x 59 cm

  • Variable speed up to 300 m/h 400 m/h
  • Print Width 125 cm ( ISO A0)
  • Electrical 3 lamps 140 W (3 tubes)
  • Forward/Reverse Switch
  • Consumption 650 W 850 W
  • Weight without stand 56 Kg 59 Kg
    Stand weight 14 Kg 14 Kg
  • Dimensions 22 x 172 x 48 cm 22 x 172 x 48 cm

born from a twenty years experience in the diazo machines production, the TECHNODIAdistinguishes itself for its new technological solutions.
A high level rationalization assures high reliability and easy maintenance. The modern and essential
design is in keeping with all furniture solution of the office.
A great care has been used to make the TECHNODIAZO of ergonomic use.
The residual ammonia vapours of the closed circuit and of the copy 95% neutralized by the
“NEOFILTER” system, allowing the installation of the TECHNODIAZO in any offices with no problem.
As a further possibility, the residual vapours instead of going through a filter, can be conveyed
outside through an exhaust pipe.
Technical Specifications
TECHNODIAZO 2 3
Working width 125 cm
Variable speed up to 300 m/h 400 m/h
Light source 2 lamps 140 W
with rotating crystal
with rotating crystal
Available power supply 220 V – 50 Hz
240 V – 50 Hz
110 V – 60 HZ
220 V – 50 Hz
240 V – 50 Hz
110 V – 60 HZ
Consumption 650 W 850 W
Drawer capacity 50 m roll 1 1
Working surface height on stand 95 cm 95 cm
Dimensions without stand:
height – width – depth
Packing dimensions
height – width – depth
34 x 186 x 59 cm 34 x 186 x 59 cm



-
Quick View
Roland
  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.

  • The Roland, large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users.
  • With a 24 inch scanner, this MFP is designed for architects, engineers, consulting firms, small offices and K-12 schools that require a minimal learning curve when it comes to new equipment. Suitable for K-12 schools, this inexpensive model makes it possible for schools to purchase an MFP that was once too expensive to afford.
-

Inquire

Search

Our Partners

© DMC Design By Hawesome Group

Y

elcome to Designjet Maintanacce Company.

We provide service contracts, preventative maintenance, advice & support for your large format HP printers & plotters

It is essential that your copying, plotting and plan printing equipment performs at the highest level and that downtime is kept to an absolute minimum. John E Wright’s team of IT specialists and HP DesignJet service engineers are on hand to support our customers and ensure their in-house equipment functions at peak condition. We provide fast, reliable and cost effective support and repair for your printing and plotting equipment.

0
Connecting
Please wait...
Send a message

Sorry, we aren't online at the moment. Leave a message.

Your name
* Email
* Describe your issue
Send message
We'll get back to you as soon as possible.
Login now

Need more help? Save time by starting your support request online.

Your name
* Email
* Describe your issue
Login now
We're online!
Send
Feedback

Help us help you better! Feel free to leave us any additional feedback.

How do you rate our support?
close
